635 WinTest

Features:

Demonstrates features of Crystalfontz CFA- 635 and 735 modules.
Allows experimenting with the LCD's command set.
Example data may be "copied" from the Acrobat PDF manual and "pasted" into 633_WinTest Packet Debugger.
Sends any "binary" code from 0 to 255.
"Packet Debugger" shows a record of the commands sent and received.
Demonstrates software techniques:

Sending and receiving packets
Reading fan RPM or setting fan power
Displaying keystrokes.
Setting LCD contents

Supports ports: COM1-COM9.
Supports speeds of: 19,200 and 115,200 baud.
32-bit Windows (95/98/ME/NT/2K) program.
WinTest.exe runs directly: no install and you can just delete it when you are done.
Open C Source

Docs / Files
Notices
Related
Photos

Other Files

Software Source - Zipped Source v1.1 (311KB)
Software Binary - Executable v1.1 (168KB)

Subscribe to Part Change Notices by email or RSS

No notices have been issued for this part.

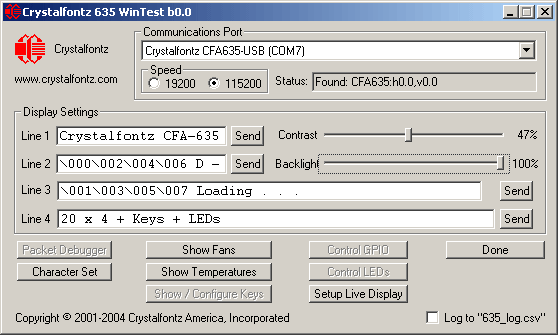

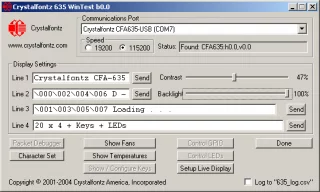

The main 635_WinTest screen gives you easy control over the LCD contents, contrast setting, backlight settings and the COM port and baud rate selection.

The 635_WinTest Bi-Color LED Editor screen easily allows complete control over the color of each of the 4 CFA-635 LED's.

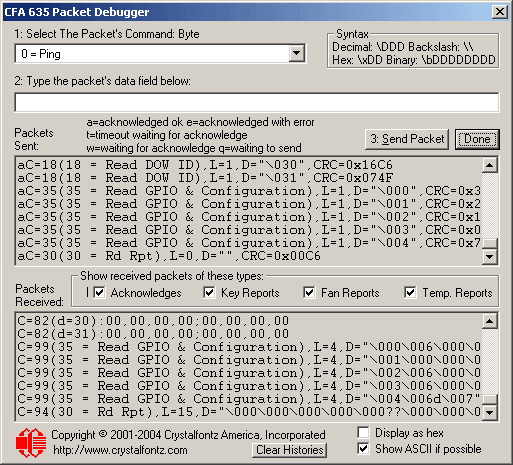

The separate "modeless" debugger window allows you to see all packet traffic between the host and the 635, and also allows you to experiment with any command. You can scroll back to see the packet history, selectively mask packet traffic and select decimal or hexadecimal display.

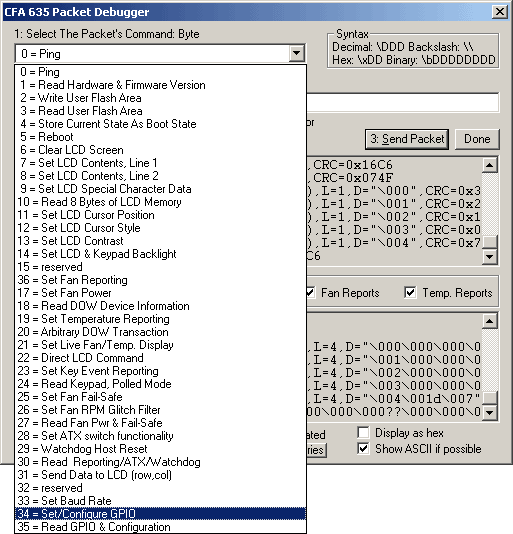

Every command available in the CFA-635 firmware can be selected from the drop-down menu.

You can enable or disable key reporting, and query the keys by polling in the key dialog.

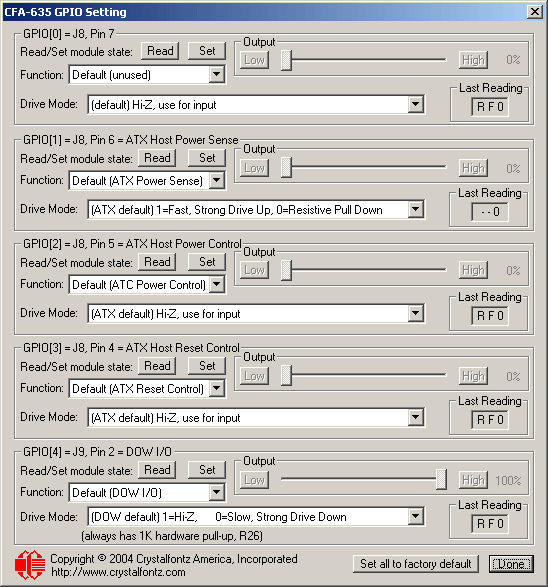

The very flexible GPIO pins may be configured through the GPIO dialog box.
