CFA-10036

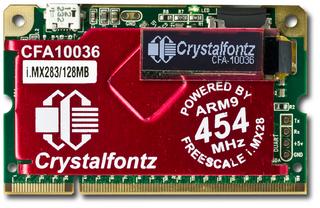

CFA-10036 photo

The CFA10036 can easily monitor several environmental sensors (temperature, humidity, etc), log the data, and make that data available over the Internet. This is the core concept behind IoT (Internet of Things). Starting with a CFA10036 makes it very easy to make your thing part of the IoT.

To reduce overall cost, we found it made sense to move the fine-pitch high-density (BGA) parts onto a small, relatively costly PCB (CFA-10036) and move the rest of the parts onto a larger, lower cost PCB (CFA-10037).

Every tech geek who saw a prototype of the CFA-10036 quickly had an idea for a project that could use it. They wanted to use it in a test fixture, in another display design, in a motion control project, or in an automotive control project.

Our unofficial motto is “If it's worth doing, it's worth overdoing.” We ended up spending hundreds of hours updating our knowledge of high-speed PCB design, and designing and laying out the CFA-10036 to maximize the performance and minimize the cost. We think the result is beautiful.

  • 454MHz Freescale i.MX283 (optionally i.MX287) processor
    • 289-ball BGA 17x17 grid on 0.8mm pitch
    • 16-Kbyte instruction cache, 32-Kbyte data cache
    • 2x CAN interfaces (i.MX287 only)
    • Four synchronous serial ports
    • 10/100-Mbps 802.3 Ethernet MAC (1x on i.MX283, 2x on i.MX287)
    • USB 2.0 OTG (connected to microUSB AB on CFA-10036)
    • USB 2.0 host controller and PHY
    • 5x UART plus one dedicated debug UART
    • 2x I2C (OLED shares one of these)
    • LCD, touch screen, keypad, and rotary encoder support
    • RTC with 32KHz crystal (requires continuous power)
    • 4x 32-bit timers
    • 8x PWM
    • 5x 12-bit 428KS/s ADC channels
    • 1x 12 bit 2MS/s ADC channel
    • In short, all peripherals available on the i.MX28 are available on the CFA-10036 expansion connector except the OTG USB, which is brought out to its own dedicated connector. For details, refer to the Freescale i.MX28 data sheet.
  • 128MB (optionally 256MB) DDR2
  • MicroSD/microSDHC/microSDXC socket: up to 64GB of nonvolatile storage
  • 91 GPIO (i.MX283) or 126 GPIO (i.MX287)
  • 6-layer impedance-controlled PCB, gold SODIMM contacts
  • On-board micro USB AB connector
  • Only a single 5v supply needed (3.3v/1.8v/1.5v supplies internally generated)

Quick Summary

Small, highly functional ARM9 based Linux SOM (System On Module). Our goals when we designed the CFA-10036 were low cost, rugged, easy to embed, ease of use, and lots of GPIO. A User Guide is available under the Docs / Files tab. Latest disk image releases here: images.crystalfontz.com/releases

Quantity 1 10 20 50 * 100 * 200 * 500 *
Price $71.00 $67.48 $63.94 $60.42 $56.92 $53.44 $49.98
Quantity Price
1 $71.00
10 $67.48
20 $63.94
50 * $60.42
100 * $56.92
200 * $53.44
500 * $49.98
Quantity:
* May require 45 days lead time.


Datasheets


Files

Software Source - CFA10055/CFAF320480C4 memory mapped I/O example
(19KB)
Example using memory mapped I/O under Linux, directly using the CFAF320480C4 using the 16 bit MCU interface and the CFA10055. Traces cut/jumped for this example on the CFA10055: P2.18 - cut, nc P2.17 - cut, nc P1.24 - cut, connected to /RD P1.27 - cut, connected to D/C IM0 and IM2 shorted to GND, IM1 to +3.3v


Part Change Notices

Subscribe to Part Change Notices by email Email subscription for changes to CFA-10036 or RSS RSS feed for changes to CFA-10036

Product Update #10584

Products Affected: CFA-10036, CFA10037, CFA10055-8, CFA10056-4, CFA10037-1, CFA10037-2, CFA921-TS, CFA920-TS, CFA10037-5, CFA10037-6, CFA-920-TS1, CFA-920-TS2, CFA-920-TS5, CFA-920-TS6, CFA-921-TS1, CFA-921-TS2, CFA-921-TS5, CFA-921-TS6
Date Issued: April 28, 2014
Summary: The Linux SOM family has had a kernel and a build update.

Description: Linux kernel update and build update.
Recommendation: To access the new build please visit: http://images.crystalfontz.com/releases/

Product Update #10571

Products Affected: CFA-10036, CFA10037, CFA10037-1, CFA10037-2, CFA921-TS, CFA920-TS, CFA10037-5, CFA10037-6, CFA-920-TS1, CFA-920-TS2, CFA-920-TS5, CFA-920-TS6, CFA-921-TS1, CFA-921-TS2, CFA-921-TS5, CFA-921-TS6
Date Issued: October 30, 2013
Summary: The CFA-10036 modules have been updated to include a heat shield to provide better thermal cooling for the i.MX28 processor.
Reason: To provide more efficient thermal cooling for the i.MX28 processor.

Product Update #10557

New Product: CFA-10036
Date Issued: October 25, 2013
Summary: (New Product) CFA-10036
Description: Linux SOM: Open, Hackable, Linux + ARM Embedded GPIO Module

Product Update #10467

New Product: CFA-10036
Date Issued: April 15, 2013
Summary: (New Product) CFA-10036
Description: Development Kit / Demonstration Board: A small, highly functional ARM9 based Linux SOM
