CFA634-YMC-KU

CFA-634 USB LCD 20x4, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive 0°C - +50°C 6:00, Must also order WRUSBY03 or WRUSBY11 cable
Latest Part Change Notices (PCN) See all PCNs for this product in the Files tab under heading "Part Change Notices."

Full 634 v2.0 feature set: This USB version retains the entire feature set of the original 634 v2.0:

  • The LCD material for the positive displays is FSTN (Film compensated Super Twisted Nematic) instead of STN. FSTN gives better contrast, faster response and makes an all-around more readable display.
  • The display as the ability to store a customized boot screen of your design in its EEPROM. All features of the display are controlled: characters displayed, user-definable characters, backlight setting, contrast setting, cursor position, cursor style, "wrap" setting, "scroll" setting, and even the scrolling marquee.
  • The CGROM is an enhanced version with many more useful characters: numeric superscripts, icons, mathematical symbols, some fractions, a great variety of arrows, many currency symbols, and more.
  • Large, easy to read characters: 7.3mm (0.287") character height
  • Available with bright, even, software adjustable LED backlighting or in a low-power reflective model
  • Software controlled contrast
  • "Gapless" horizontal bargraphs
  • Software controlled terminal style automatic scrolling and line wrapping
  • Unique "Scrolling Marquee" feature continuously scrolls a message across the display without host intervention.
  • Buffered communication
  • Large display area in a compact 130mm x 63mm (5.12" x 2.48")package
  • Thin:
    • Reflective is 15.9mm (0.626") including DB-9 connector
    • LED Backlit is 19.9mm (0.783") including DB-9 connector
    The USB converter board and its compact connector does not add to the overall thickness of the module.
  • Negative voltage for contrast generated on board
  • Available in a LCD drive bay kit, (see mounting bracket photos)
  • Available with serial interface
Lose the tabs, show me everything
Sign in for faster checkout with saved addresses and order history.
Or, continue through checkout as a guest without signing in.
To add items to your shopping cart, enter quantities below and click the "Review Cart" button.
Intelligent USB LCD Modules
CFA634-YMC-KU
CFA634YMCKU
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • CFA-634 USB LCD 20x4
  • Yellow/Green LED Backlight
  • STN Negative, Blue
  • Transmissive 0°C - +50°C 6:00
  • Must also order WRUSBY03 or WRUSBY11 cable
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $65.00 $59.00 $52.75 $49.75 $46.75 $43.75 $40.50 $37.50
* These quantities may be subject to 30 to 90 days lead time.
Cables
WR-USB-Y03
WRUSBY03
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • USB A(male) to 2mm connector cable
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.00
* These quantities may be subject to 30 to 90 days lead time.
WR-USB-Y11
WRUSBY11
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • 4 single pin connectors to 2mm connector cable, approximately 27" length.
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.50
* These quantities may be subject to 30 to 90 days lead time.
Drive Bay Kits
DB634-ALYMC-KU1
CFA634YMCKUWRUSBY03DB634AL
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $84.25 $74.00 $69.75 $67.75 $65.75 $63.75 $59.25 $55.00
* These quantities may be subject to 30 to 90 days lead time.
DB634-ALYMC-KU2
CFA634YMCKUWRUSBY11DB634AL
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $86.00 $75.50 $71.25 $69.25 $67.00 $65.00 $60.25 $56.00
* These quantities may be subject to 30 to 90 days lead time.
DB634-BGYMC-KU1
CFA634YMCKUWRUSBY03DB634BG
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $80.25 $70.50 $66.75 $64.75 $62.75 $59.00 $54.00 $49.75
* These quantities may be subject to 30 to 90 days lead time.
DB634-BGYMC-KU2
CFA634YMCKUWRUSBY11DB634BG
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $82.00 $72.00 $68.00 $66.00 $64.00 $60.25 $55.25 $50.75
* These quantities may be subject to 30 to 90 days lead time.
DB634-BKYMC-KU1
CFA634YMCKUWRUSBY03DB634BK
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $78.00 $68.50 $64.75 $63.00 $61.00 $59.00 $54.00 $49.75
* These quantities may be subject to 30 to 90 days lead time.
DB634-BKYMC-KU2
CFA634YMCKUWRUSBY11DB634BK
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $79.75 $70.00 $66.25 $64.25 $62.25 $60.25 $55.25 $50.75
* These quantities may be subject to 30 to 90 days lead time.
DB634-TXYMC-KU1
CFA634YMCKUWRUSBY03DB634TX
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $81.25 $71.50 $67.50 $65.50 $63.50 $61.50 $57.50 $53.50
* These quantities may be subject to 30 to 90 days lead time.
DB634-TXYMC-KU2
CFA634YMCKUWRUSBY11DB634TX
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $83.00 $72.75 $68.75 $66.75 $64.75 $62.75 $58.75 $54.75
* These quantities may be subject to 30 to 90 days lead time.
For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 20 x 4
Module Overall
width height depth
millimeters 130 63 19.9
inches 5.12 2.48 0.78
PCB Outline
width height depth
millimeters 130 63 19.9
inches 5.12 2.48 0.78
Viewing Area
width height
millimeters 102 41.5
inches 4.02 1.63
Active Area
width height
millimeters 93.54 34
inches 3.68 1.34
Character Size
width height
millimeters 3.84 6.38
inches 0.15 0.25
Character Pitch
width height
millimeters 4.68 8.9
inches 0.18 0.35
Dot Size
width height
millimeters 0.72 0.86
inches 0.03 0.03
Dot Pitch
width height
millimeters 0.78 0.92
inches 0.03 0.04

Optical Characteristics

Display Technology LCD
Display Addressing passive
Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6:00
Backlight Color Yellow-Green
Backlight Type LED
Mode Negative
Foreground Color Yellow
Background Color Dark

Environmental

Operating Temperatures
min max
Celsius 0° 50°
Farenheit 32° 122°
Storage Temperatures
min max
Celsius -10° 60°
Farenheit 14° 140°
Humidity
min max
Non-condensing 0% 90%

Electronics

Interface USB

Datasheets

Current Version

CFA-634_v2.0.pdf (1MB)
Datasheet: v2.0, Hardware: v2.3, Firmware: v2.0

Previous Version (obsolete)

Other Files

1 to 1 Template (33KB)

Part Change Notice

Subscribe to Part Change Notices for CFA634-YMC-KU by Email Email subscription for changes to CFA634-YMC-KU or by RSS feed RSS feed for changes to CFA634-YMC-KU
PCN#10281
Products Affected: CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA634-YFB-KU, CFA634-YMC-KU, CFA634-NFA-KU, CFA634-TFB-KU, CFA634-TMC-KU
Date Issued: May 14, 2010
Summary: Revision change for USB board because we have changed the layout of the board, also the silk screen.
Description: Changed from v3.0 to v3.1, added ground trace around outside of PCB, changed layout, made aesthetic changes to the silk screen.
Reason: Wanted to add 94v0 and WEEE symbol (trash can with "X") to the silk screen.
Impact: Put new photos of the changed USB board on the site on the LCD modules which have the change.
Availability: Immediately
Price Change: None.

For reference only. For design purposes, please use the drawing in the datasheet.

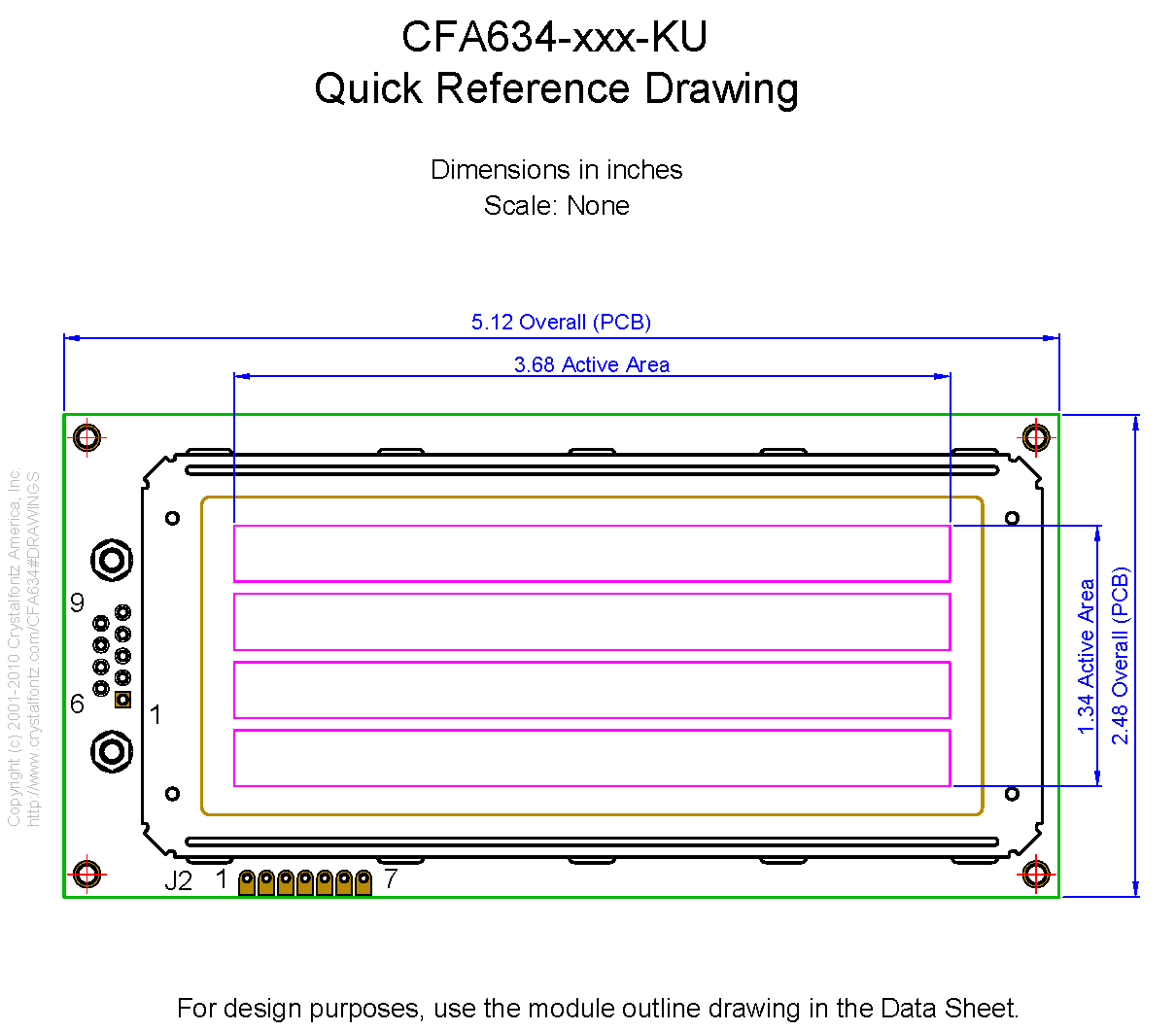

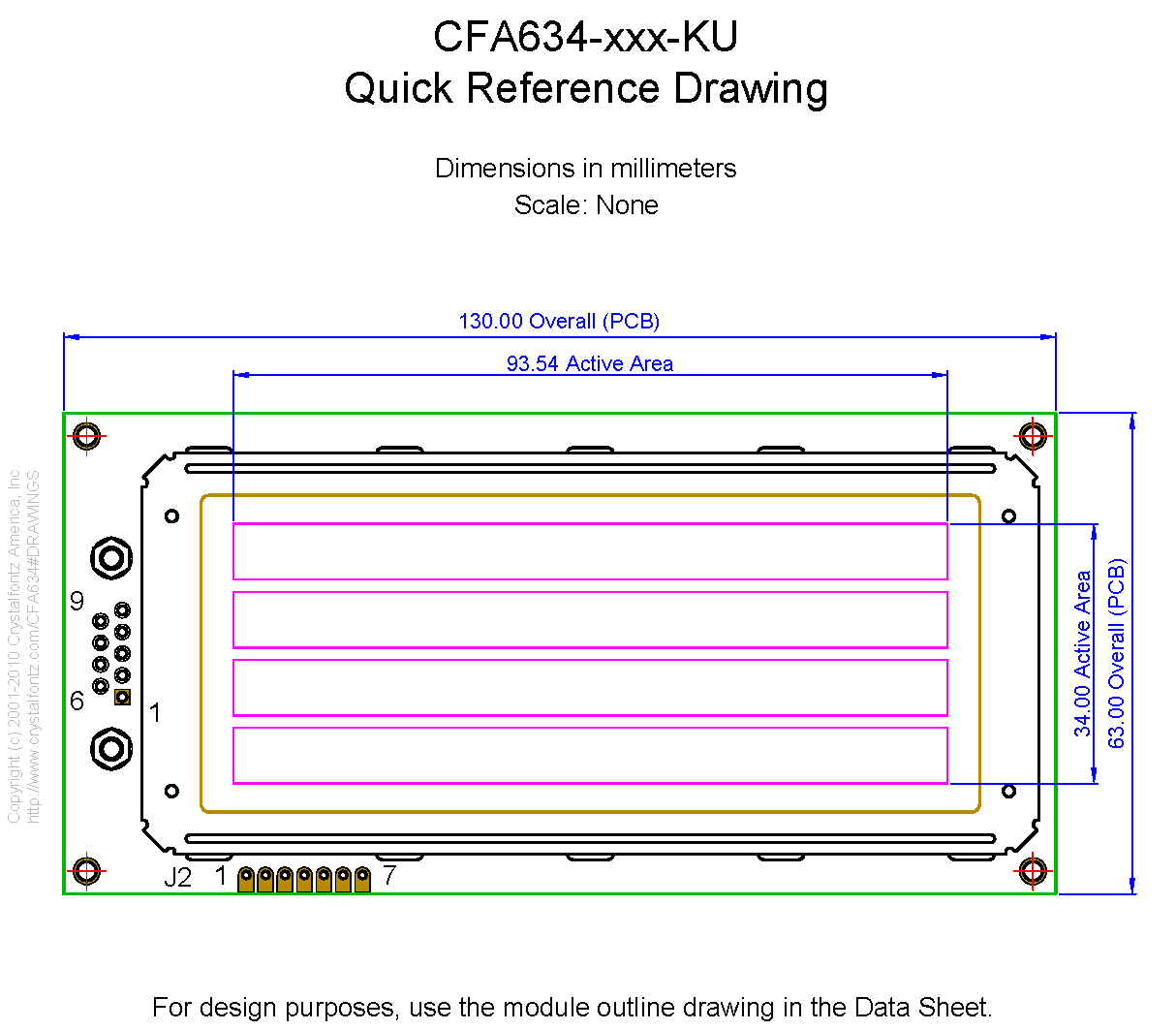

Quick View: Scale Drawing, Metric Scale Drawing, Inches
