This product is discontinued and has been replaced by CFA634-YFH-KS

CFA634-NFA-KS

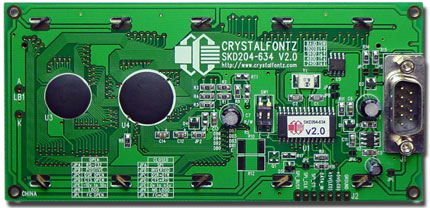

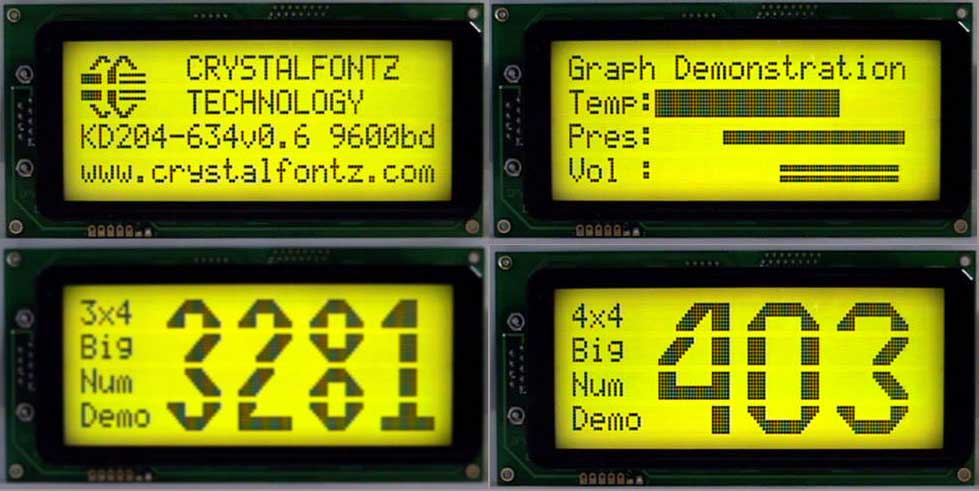

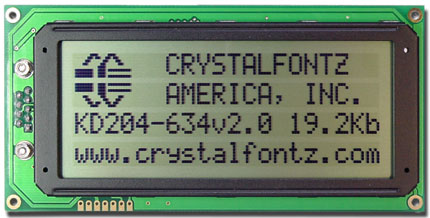

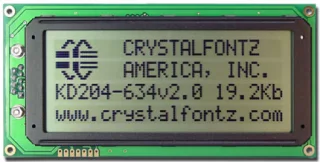

CFA634-NFA-KS photo
CFA634 Family Characteristics:

  • Large easy-to-read LCD in a compact size can display 20 characters x 4 lines. Overall module size is 130.00 mm, width x 63.00 mm height x 19.90 mm depth (5.12" x 2.48" x 0.78"). Character height is 7.30 mm (0.29").
  • Attractive stainless steel bezel.
  • Optional PC CDROM mounting bracket with three choices of overlay to fit two 5.25" wide bays is available.
  • The CFA634 family has four colors choices:
  1.  CFA634-TFH-Kx: White edge-lit LED backlight with positive STN transflective mode. Displays dark (near-black) characters on light (near-white) background. The display can be read in normal office lighting, in dark areas, andin bright sunlight.
  2.  CFA634-TMI-Kx: White edge-lit LED backlight with negative STN transmissive mode LCD. Displays light (nearwhite) characters on a blue background. The display can be read in normal office lighting and in dark areas. May be difficult to read in direct sunlight.
  3.  CFA634-YDI-Kx: Yellow-green array LED backlight with negative FFSTN transmissive mode LCD. Displays yellow-green characters on a dark (near-black) background. The display can be read in normal office lighting and in dark areas. May be difficult to read in direct sunlight.
  4.  CFA634-YFH-Kx: Yellow-green array LED backlight with positive FSTN transflective mode LCD. Displays dark (near-black) characters on yellow-green background. The display can be read in normal office lighting, in dark areas, and in bright sunlight.
  • Use any of six interfaces on any module in the CFA634 family by simply changing the interface selection in a command and using the appropriate jumper configurations.
  • The displays have a 6 o’clock viewing angle (polarizer viewing direction).
  • Adjustable contrast. The module’s default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using control function.
  • The modules have a RockWorks RW1067 controller.
  • Robust packet based communications protocol with 16-bit CRC.
  • Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller.
  • Backlight is 5 volts only.
  • Use the nonvolatile memory capability (EEPROM) to customize the “power-on” display settings.
  • Wide temperature range for operation is -20°C to +70°C.
  • RoHS compliant. You can download the Certificate of Compliance for ISO, RoHS, and REACH from the Doc/Files tab on the part number’s website page.

Quick Summary

CFA-634 Serial LCD 20x4, RoHS Compliant, No Backlight, FSTN Positive, Reflective, 0C to +50C, 6:00 Recommended replacement parts: CFA634-YFH-KS or CFA634-TFH-KS

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 20 x 4
Module Overall width height depth
millimeters 130.000 63.000 15.900
inches 5.110 2.480 0.620
PCB Outline width height depth
millimeters 130.000 63.000 15.900
inches 5.110 2.480 0.620
Viewing Area width height
millimeters 102.000 41.500
inches 4.010 1.630
Active Area width height
millimeters 93.540 34.000
inches 3.680 1.330
Character Size width height
millimeters 3.840 6.380
inches 0.150 0.250
Character Pitch width height
millimeters 4.680 8.900
inches 0.180 0.350
Dot Size width height
millimeters 0.720 0.860
inches 0.020 0.030
Dot Pitch width height
millimeters 0.780 0.920
Weight 147g

Optical Characteristics

Glass Type/Glass Color FSTN/Light Grey
Polarizer Reflective
View Direction 6 o'clock
Backlight Type None
Mode Positive
Foreground Color Dark
Background Color Light Grey

Environmental

Operating Temperatures min max
Celsius 50°
Farenheit 32° 122°
Storage Temperatures min max
Celsius -10° 60°
Farenheit 14° 140°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller CFA 632/634
Interface Logic Level Serial, RS232, SPI

Datasheets

CFA-634 v2.0.pdf
(1MB, Oct 2005, Datasheet v.2.0, Hardware v.2.3, Firmware v.2.0)
634full v0 7.pdf
(331KB, Apr 1999, Datasheet v.1.0, Hardware v.0.7, Firmware v.0.7)

Files



Part Change Notices

Subscribe to Part Change Notices by email Email subscription for changes to CFA634-NFA-KS or RSS RSS feed for changes to CFA634-NFA-KS

Part Change Notice #10580

Products Affected: CFA634-YFB-KS, CFA634-YMC-KS, CFA634-NFA-KS, CFA634-TFB-KS, CFA634-TMC-KS, CFA634-YFB-KU, CFA634-YMC-KU, CFA634-NFA-KU, CFA634-TFB-KU, CFA634-TMC-KU, CFA634-NFG-KS, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-NFG-KU, CFA634-TFH-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA634-TFH-KS4, CFA634-TMI-KS4, CFA634-YDI-KS4, CFA634-YFH-KS4, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA634-TFH-KC4, CFA634-TMI-KC4, CFA634-YDI-KC4, CFA634-YFH-KC4, CFA634-TFH-KL16, CFA634-TMI-KL16, CFA634-YDI-KL16, CFA634-YFH-KL16, CFA634-TFH-KN16, CFA634-TMI-KN16, CFA634-YDI-KN16, CFA634-YFH-KN16, CFA634-TFH-KP16, CFA634-TMI-KP16, CFA634-YDI-KP16, CFA634-YFH-KP16, CFA634-TFH-KS16, CFA634-TMI-KS16, CFA634-YDI-KS16, CFA634-YFH-KS16
Date Issued: December 20, 2013
Summary: Reverted the SPI functionality to Crystalfontz CFA634 legacy implementation
Last revision: v3.1.5
Description: Reverted the SPI functionality to Crystalfontz CFA634 legacy implementation where the MISO line is used as a busy indicator instead of the module's unused transmit line. Firmware will migrate from v3.1.5 to v3.1.6.
Reason: To maintain legacy functionality.
Impact: Impact to customers utilizing SPI functionality only.
Recommendation: For questions please contact Technical Service at 1-888-206-9720.

Part Change Notice #10454

Products Affected: CFA634-NFA-KS, CFA634-TFB-KS, CFA634-NFA-KU, CFA634-TFB-KU, DB634-ALNFA-KS1, DB634-ALYDI-KS2, DB634-ALNFA-KS2, DB634-ALNFA-KU1, DB634-ALNFA-KU2, DB634-ALTFH-KS1, DB634-ALTFH-KS2, DB634-ALTFH-KU1, DB634-ALTFH-KU2, DB634-ALTMI-KS1, DB634-ALTMI-KS2, DB634-ALTMI-KU1, DB634-ALTMI-KU2, DB634-ALYFH-KS1, DB634-ALYFH-KS2, DB634-ALYFH-KU1, DB634-ALYFH-KU2, DB634-ALYDI-KS1, DB634-ALYDI-KU1, DB634-ALYDI-KU2, DB634-BGNFA-KS1, DB634-BGYDI-KS2, DB634-BGNFA-KS2, DB634-BGNFA-KU1, DB634-BGNFA-KU2, DB634-BGTFH-KS1, DB634-BGTFH-KS2, DB634-BGTFH-KU1, DB634-BGTFH-KU2, DB634-BGTMI-KS1, DB634-BGTMI-KS2, DB634-BGTMI-KU1, DB634-BGTMI-KU2, DB634-BGYFH-KS1, DB634-BGYFH-KS2, DB634-BGYFH-KU1, DB634-BGYFH-KU2, DB634-BGYDI-KS1, DB634-BGYDI-KU1, DB634-BGYDI-KU2, DB634-BKNFA-KS1, DB634-BKNFA-KS2, DB634-BKNFA-KU1, DB634-BKNFA-KU2, DB634-BKTFH-KS1, DB634-BKTFH-KS2, DB634-BKTFH-KU1, DB634-BKTFH-KU2, DB634-BKTMI-KS1, DB634-BKTMI-KS2, DB634-BKTMI-KU1, DB634-BKTMI-KU2, DB634-BKYFH-KS1, DB634-BKYFH-KS2, DB634-BKYFH-KU1, DB634-BKYFH-KU2, DB634-BKYDI-KS1, DB634-BKYDI-KS2, DB634-BKYDI-KU1, DB634-BKYDI-KU2, CFA634-NFG-KS, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-NFG-KU, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU
Date Issued: February 6, 2013
Summary: New v3.1 hardware version for CFA634 family of modules.
Last revision: HW v2.4
Description: As part of our continuous improvement process, the CFA634 family of modules has been redesigned to fall more in line with our other Value Add families of intelligent modules.

The module is keeping the same dimensions, mounting points, and existing header locations.

Changes:
- LCD controller is changing from Samsung S6A0073 to Rockworks RW1067
- Holtek HT48R30 is being replaced by Cypress PSoC CY8C27443
- USB interface integrated on PCB using FTDI FT232RL
- PCB layout changed to accommodate new LCD controller, new microcontroller, integrated USB interfaces
- The following hardware functionality has been migrated to firmware control;
- - Interface selection
- - Data normal / Inverted
- - Splash screen control
- - Baud rate

* Specifications are subject to change
Reason: Samsung S6A0073 LCD controller is EOL. Module has been redesigned to incorporate the Rockworks RW1067. The Holtek HT48R30 one-time-programmable controller replaced with the Cypress PSoC CY8C27443 for improved functionality.
Impact: This new hardware version is designed to be as fit and form compatible as possible with the current shipping hardware. There are major changes to the PCB layout due to the re-design of the CFA634 family.

Existing header locations and mounting points are renaming the same.

Additional header locations have been added for programming the PSoC and future functionality.
Recommendation: Engineering samples should be available Quarter 3, 2013. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
Availability: Q3 2013 - Samples available
End of Q3 / Beginning Q4 2013 - Transition to new version when previous version is exhausted
Q1 2014 - All CFA634 shipments new hardware
Price Change: We are anticipating an increase in pricing.
New pricing is TBD

Part Change Notice #10308

Products Affected: CFA634-YFB-KS, CFA634-YMC-KS, CFA634-NFA-KS, CFA634-TFB-KS, CFA634-TMC-KS, CFA634-YFB-KU, CFA634-YMC-KU, CFA634-NFA-KU, CFA634-TFB-KU, CFA634-TMC-KU, CFA634-NFG-KS, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-NFG-KU, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU
Date Issued: January 10, 2011
Summary: Update CFA634 series to firmware v2.3 and wide temperature LCD.
Last revision: Hardware v2.3, Firmware v2.0
Description: In a continuation of product improvement the CFA634 series has the following improvements:
  1. Wide temperature support with -20C to +70C operation / -30C to +80C storage

  2. The bezel changed from black painted metal to stainless steel. Stainless steel has lower environmental impact and improves ESD protection. If your design has the bezel exposed, it will show the silver color of the stainless steel rather than the previous painted black bezel.

  3. The previous CFA634-YMC-KS and CFA634-YMC-KU (new CFA634-YDI-KS and CFA634-YDI-KU) changed from STN to double negative (FFSTN) LCD for improved appearance.

  4. Firmware revision to match hardware revision and is now displayed on the boot screen
    Reason: Improvements in design allow for better manufacturing, ESD protection, and appearance.
    Impact: The new version is designed to be Fit, Form, and Function compatible with previous versions of the CFA634 series. Semi-Custom and Defined Parts will have updated part numbers.
    Recommendation: Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
    Availability: Volume availability Second Quarter 2011.
    Price Change: No price change at this time
    Attachment: 634_Wide_Temp_PCN.pdf (285KB)
