front view

CFAF320240F-T

The CFAF320240F-T is a 320xRGBx240 3.5" diagonal, full-color QVGA graphic TFT display module. The display has several interfaces available such as SPI, and 18/16/9/8 bit parallel, so it can be used with many different microcontroller configurations. The display also has an integrated SSD2119 or compatible display controller, and white LED backlight, with the anode and cathode pins brought out on the FPC connector. The 50 pin FPC mates with standard 0.5mm ZIF sockets such as HFJ150CT-ND and HFK150CT-ND, both readily available from Digi-Key.

  • 320xRGBx240 Full color graphic TFT module
  • Built-in SSD2119 Controller
  • 18/16/9/8-bit parallel or SPI interface
  • Wide Temperature Range
  • RoHS Compliant
Lose the tabs, show me everything
Sign in for faster checkout with saved addresses and order history.
Or, continue through checkout as a guest without signing in.
To add items to your shopping cart, enter quantities below and click the "Review Cart" button.
Full-Color TFT LCD Modules
CFAF320240F-T
CFAF320240FT
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • CFAF320240F-T 320xRGBx240 3.5 inch graphic TFT LCD display module
Qty 1+ 10+* 20+* 50+* 100+* 200+* 500+* 1000+*
Price $51.16 $45.56 $42.20 $39.14 $35.56 $32.62 $21.04 $18.82
* These quantities may be subject to 30 to 90 days lead time.
For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots 320 x 240
Module Overall
width height depth
millimeters 77.6 64.4 3.1
inches 3.06 2.54 0.12
Viewing Area
width height
millimeters 69.92 52.55
inches 2.75 2.07
Active Area
width height
millimeters 70.08 52.56
inches 2.76 2.07
Dot Size
width height
millimeters 0.06 0.21
inches 0 0.01
Dot Pitch
width height
millimeters 0.22 0.22
inches 0.01 0.01

Optical Characteristics

Display Technology LCD
Display Addressing Active
Glass Type/Glass Color TFT/Black
Polarizer Transmissive
View Direction 12:00
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color RGB
Background Color Dark

Environmental

Operating Temperatures
min max
Celsius -20° 70°
Farenheit -4° 158°
Storage Temperatures
min max
Celsius -30° 80°
Farenheit -22° 176°
Humidity
min max
Non-condensing 0% 90%

Electronics

Controller Solomon SSD2119
Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, RGB, SPI

Miscellaneous

Diagonal Dimension 3.5"
Module Connector Pitch 0.5mm

Datasheets

Current Version

CFAF320240F-T_Data_Sheet_v1.2.pdf (5MB)
Datasheet: v1.2, Hardware: rev A

Previous Versions (obsolete)

Other Files

1 to 1 Template - CFAF320240F-T_1_TO_1.PDF (38KB)
Other Document - CFAF320240F Pin Usage Table by Interface (62KB)
Software Source - Demonstration Code (148KB)
Software Source - Demonstration Code, 8-Bit (153KB)
Software Source - Demonstration Code, SPI (88KB)
CAD Export - CFAF320240F-T_2D_CAD (1MB)

Part Change Notices

Subscribe to Part Change Notices for CFAF320240F-T by Email Email subscription for changes to CFAF320240F-T or by RSS feed RSS feed for changes to CFAF320240F-T
No notices have been issued for this part.
For reference only. For design purposes, please use the drawing in the datasheet.
Quick View: Scale Drawing, Metric Scale Drawing, Inches
Zoom out zoom bar Zoom in Zoom to fit Zoom help

Move Drag image to move

Wheel zoom Use the mouse wheel to zoom

Zoom out Zoom out

Zoom in Zoom in

Zoom to fit Fit image to window

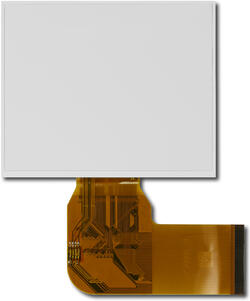

Front, Backlight On Front View Misc Misc Back View
