CFAG128128A-TMI-TZ
128x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation
CFAG128128A Graphic LCDs Family
- 128x128 graphic LCD module
- Built-in Toshiba T6963C compatible controller
- 128x128 graphic mode --or-- 21 x 16 text mode using built-in 5x7 Character Generator ROM.
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- RoHS Compliant
For reference only. For design purposes, please use the specifications in the
datasheet.

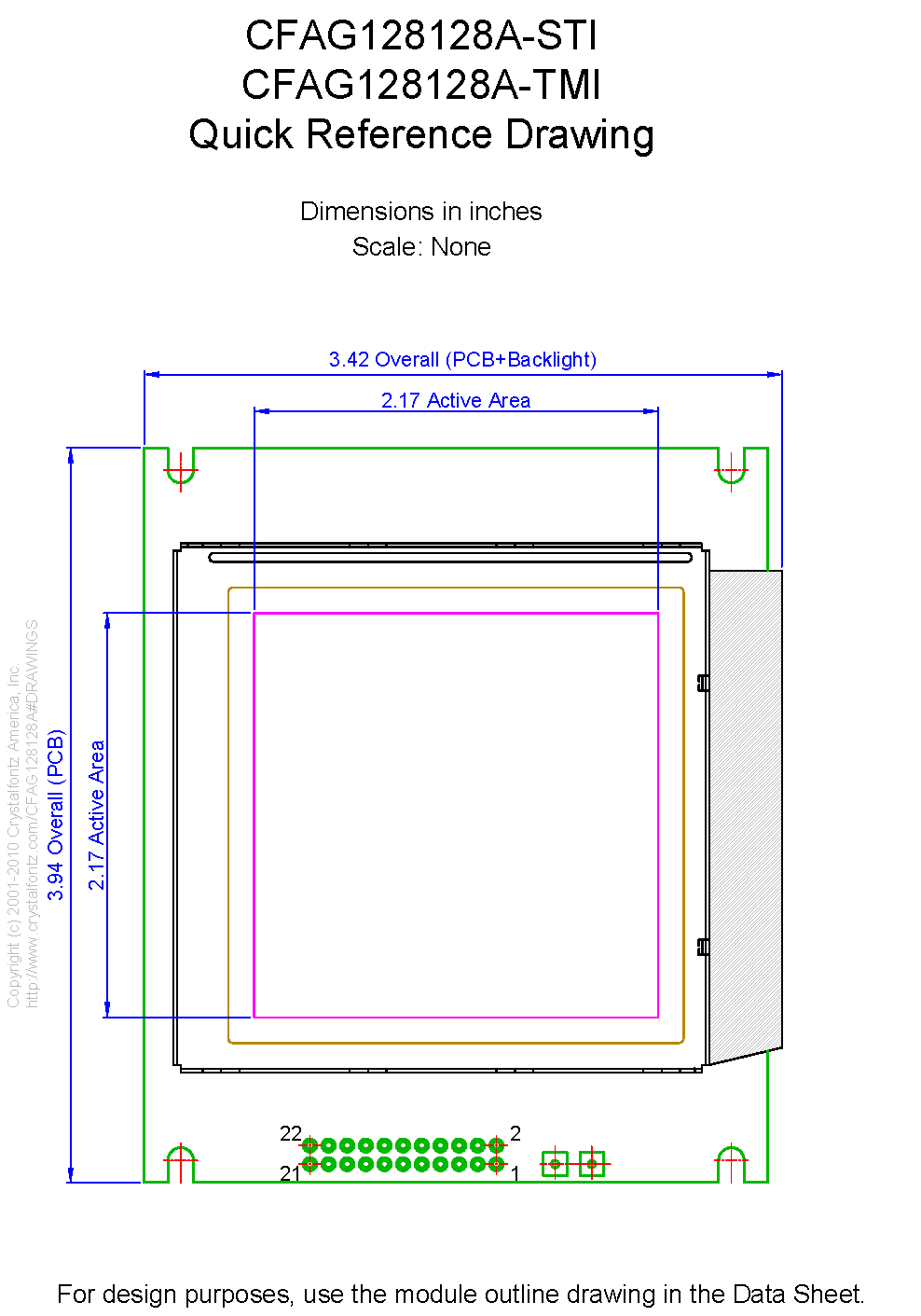

Physical Characteristics
| Column Dots x Row Dots |
128 x 128 |
| Module Overall |
|---|
|
width |
height |
depth |
| millimeters |
86.9 |
100 |
14.5 |
| inches |
3.4 |
3 |
0.5 |
| PCB Outline |
|---|
|
width |
height |
depth |
| millimeters |
85 |
100 |
14.5 |
| inches |
3 |
3 |
0.5 |
| Viewing Area |
|---|
|
width |
height |
| millimeters |
62 |
62 |
| inches |
2 |
2 |
| Active Area |
|---|
|
width |
height |
| millimeters |
55.01 |
55.01 |
| inches |
2.16 |
2.16 |
| Dot Size |
|---|
|
width |
height |
| millimeters |
0.4 |
0.4 |
| inches |
0.0 |
0.0 |
| Dot Pitch |
|---|
|
width |
height |
| millimeters |
0.43 |
0.43 |
| inches |
0.01 |
0.01 |
Optical Characteristics
| Display Technology |
LCD |
| Display Addressing |
passive |
| Glass Type/Glass Color |
STN/Blue |
| Polarizer |
Transmissive |
| View Direction |
6:00 |
| Backlight Color |
White |
| Backlight Type |
LED |
| Mode |
Negative |
| Foreground Color |
White |
| Background Color |
Blue |
Electrical Specifications
| Module Connector Pitch |
0.10” |
Environmental
| Operating Temperatures |
|---|
|
min |
max |
| Celsius |
-20° |
70° |
| Farenheit |
-4° |
158° |
| Storage Temperatures |
|---|
|
min |
max |
| Celsius |
-30° |
80° |
| Farenheit |
-22° |
176° |
| Humidity |
|---|
|
min |
max |
| Non-condensing |
0% |
90% |
Electronics
| Controller |
Toshiba T6963 |
| Interface |
8-bit Parallel |
Subscribe to Part Change Notices by email
or RSS
No notices have been issued for this part.
| Quantity |
Price |
| 1 |
$57.04 |
| 10 * |
$42.36 |
| 20 * |
$39.26 |
| 50 * |
$36.26 |
| 100 * |
$32.92 |
| 200 * |
$30.22 |
| 500 * |
$26.58 |
| 1000 * |
$24.20 |
|
* These quantities may have up to 90 days lead time.
|
