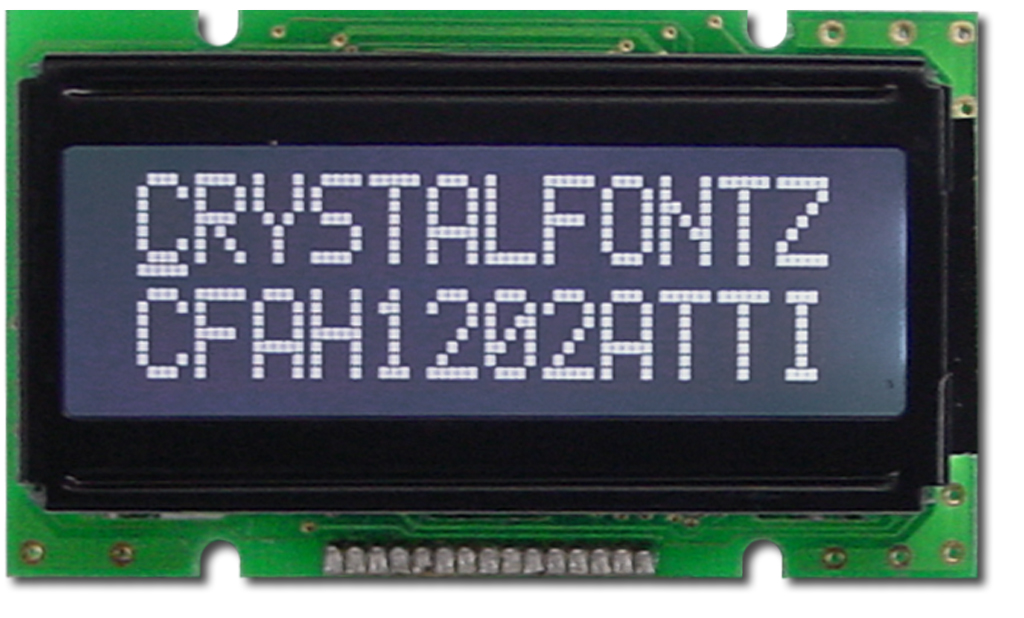

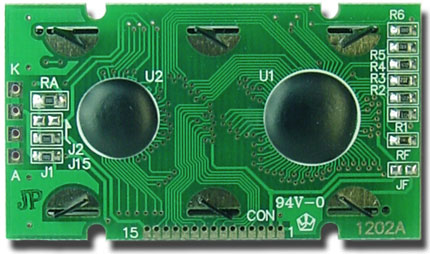

CFAH1202A-TTI-JP
Parallel Character LCD 12x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CFAH1202A Standard LCDs Family
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
For reference only. For design purposes, please use the specifications in the
datasheet.
Physical Characteristics
| Characters x Lines |
12 x 2 |
| Module Overall |
|---|
|
width |
height |
depth |
| millimeters |
55.7 |
32 |
14.5 |
| inches |
2.1 |
1 |
0.5 |
| PCB Outline |
|---|
|
width |
height |
depth |
| millimeters |
55.7 |
32 |
14.5 |
| inches |
2.1 |
1 |
0.5 |
| Viewing Area |
|---|
|
width |
height |
| millimeters |
46 |
14.5 |
| inches |
1 |
0.5 |
| Active Area |
|---|
|
width |
height |
| millimeters |
37.85 |
11.7 |
| inches |
1.49 |
0.4 |
| Character Size |
|---|
|
width |
height |
| millimeters |
2.65 |
5.5 |
| inches |
0.10 |
0.2 |
| Character Pitch |
|---|
|
width |
height |
| millimeters |
3.2 |
6.2 |
| inches |
0.1 |
0.2 |
| Dot Size |
|---|
|
width |
height |
| millimeters |
0.45 |
0.6 |
| inches |
0.01 |
0.0 |
| Dot Pitch |
|---|
|
width |
height |
| millimeters |
0.55 |
0.7 |
| inches |
0.02 |
0.0 |
Optical Characteristics
| Display Technology |
LCD |
| Display Addressing |
passive |
| Glass Type/Glass Color |
FSTN/Black |
| Polarizer |
Transmissive |
| View Direction |
6:00 |
| Backlight Color |
White |
| Backlight Type |
LED |
| Mode |
Negative |
| Foreground Color |
White |
| Background Color |
Dark |
Environmental
| Operating Temperatures |
|---|
|
min |
max |
| Celsius |
-20° |
70° |
| Farenheit |
-4° |
158° |
| Storage Temperatures |
|---|
|
min |
max |
| Celsius |
-30° |
80° |
| Farenheit |
-22° |
176° |
| Humidity |
|---|
|
min |
max |
| Non-condensing |
0% |
90% |
Electronics
| Controller |
Sunplus SPLC780D |
| Interface |
4-bit Parallel, 8-bit Parallel |
