This product is discontinued and has been replaced by CFAH1601A-GGH-JT.

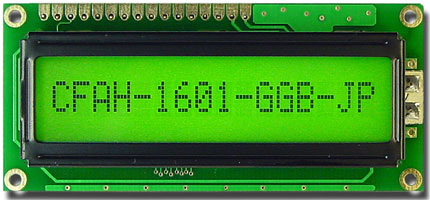

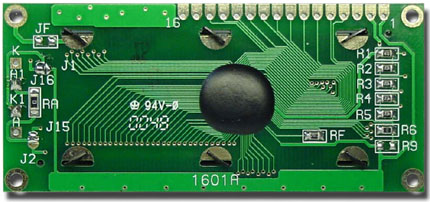

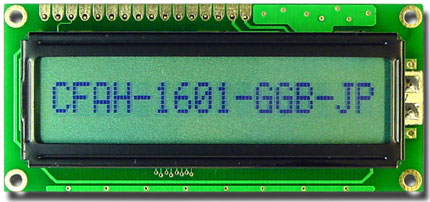

CFAH1601A-GGH-JP photo

CFAH1601A-GGH-JP

Parallel Character LCD 16x1, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00

CFAH1601A Standard and Color Backlit Character LCDs Family

  • Fit and form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1601A character display by switching to the graphic CFAG14432B, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant
For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 1
Module Overall
width height depth
millimeters 80 36 13.2
inches 3 1 0.5
PCB Outline
width height depth
millimeters 80 36 13.2
inches 3 1 0.5
Viewing Area
width height
millimeters 66 16
inches 2 0
Active Area
width height
millimeters 59.6 6.56
inches 2.3 0.25
Character Size
width height
millimeters 3.07 6.56
inches 0.12 0.25
Character Pitch
width
millimeters 3.77
inches 0.14
Dot Size
width height
millimeters 0.55 0.75
inches 0.02 0.02
Dot Pitch
width height
millimeters 0.63 0.83
inches 0.02 0.03
Weight 33g

Optical Characteristics

Display Technology LCD
Display Addressing passive
Glass Type/Glass Color STN/Grey
Polarizer Transflective
View Direction 6:00
Backlight Color Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Green

Environmental

Operating Temperatures
min max
Celsius -20° 70°
Farenheit -4° 158°
Storage Temperatures
min max
Celsius -30° 80°
Farenheit -22° 176°
Humidity
min max
Non-condensing 0% 90%

Electronics

Controller Sunplus SPLC780D
Interface 4-bit Parallel, 8-bit Parallel

Datasheets

CFAH1601AGGHJP.pdf (2MB, Dec 2007, Datasheet v.1.0, Hardware v.A)

Other Files

Subscribe to Part Change Notices by email Email subscription for changes to CFAH1601A-GGH-JP or RSS RSS feed for changes to CFAH1601A-GGH-JP
No notices have been issued for this part.
For reference only. For design purposes, please use the specifications in the datasheet.

Quick Product Info

This part replaces CFAH1601A-GGB-JP
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1601AGGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
