This product is discontinued and has been replaced by CFAH1602J-YYH-JT.

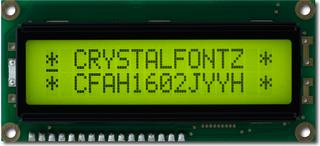

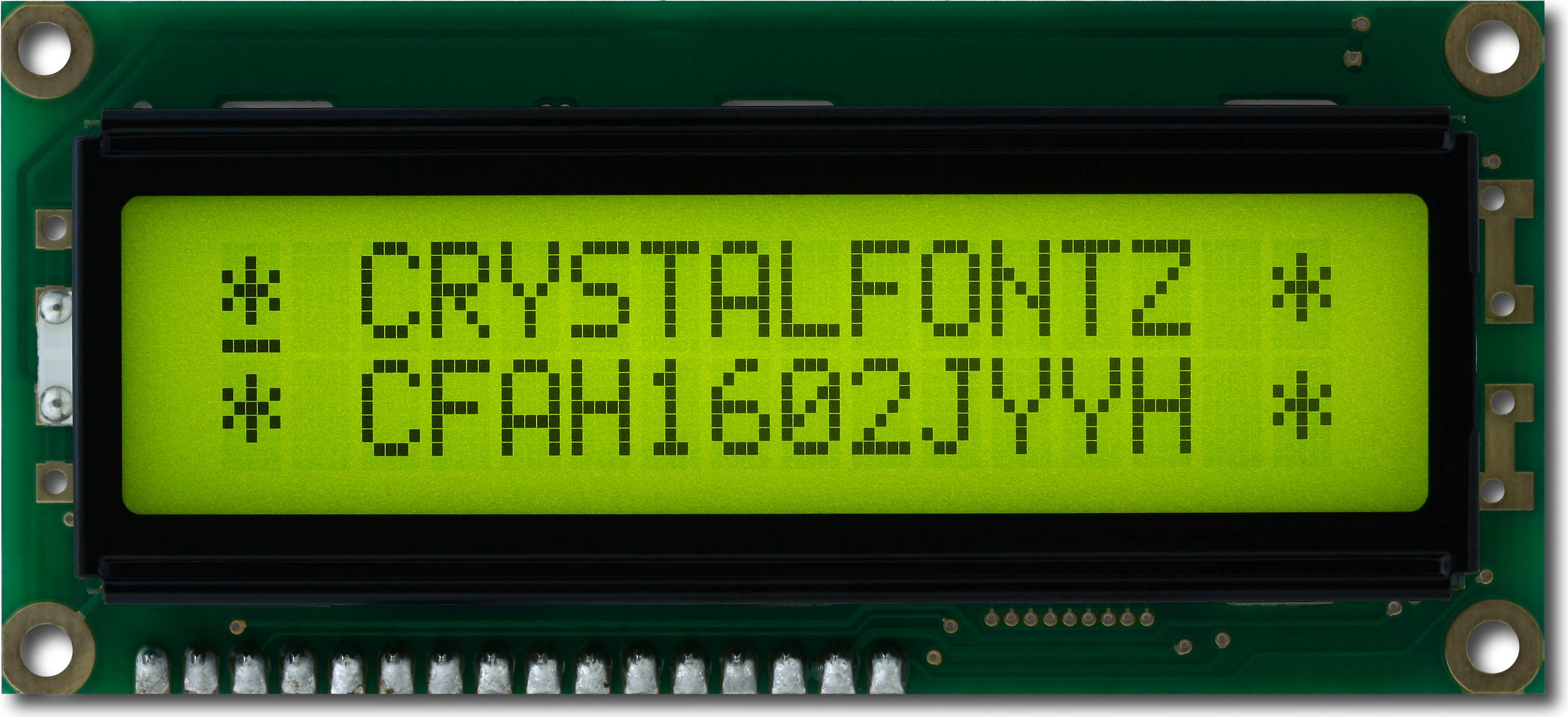

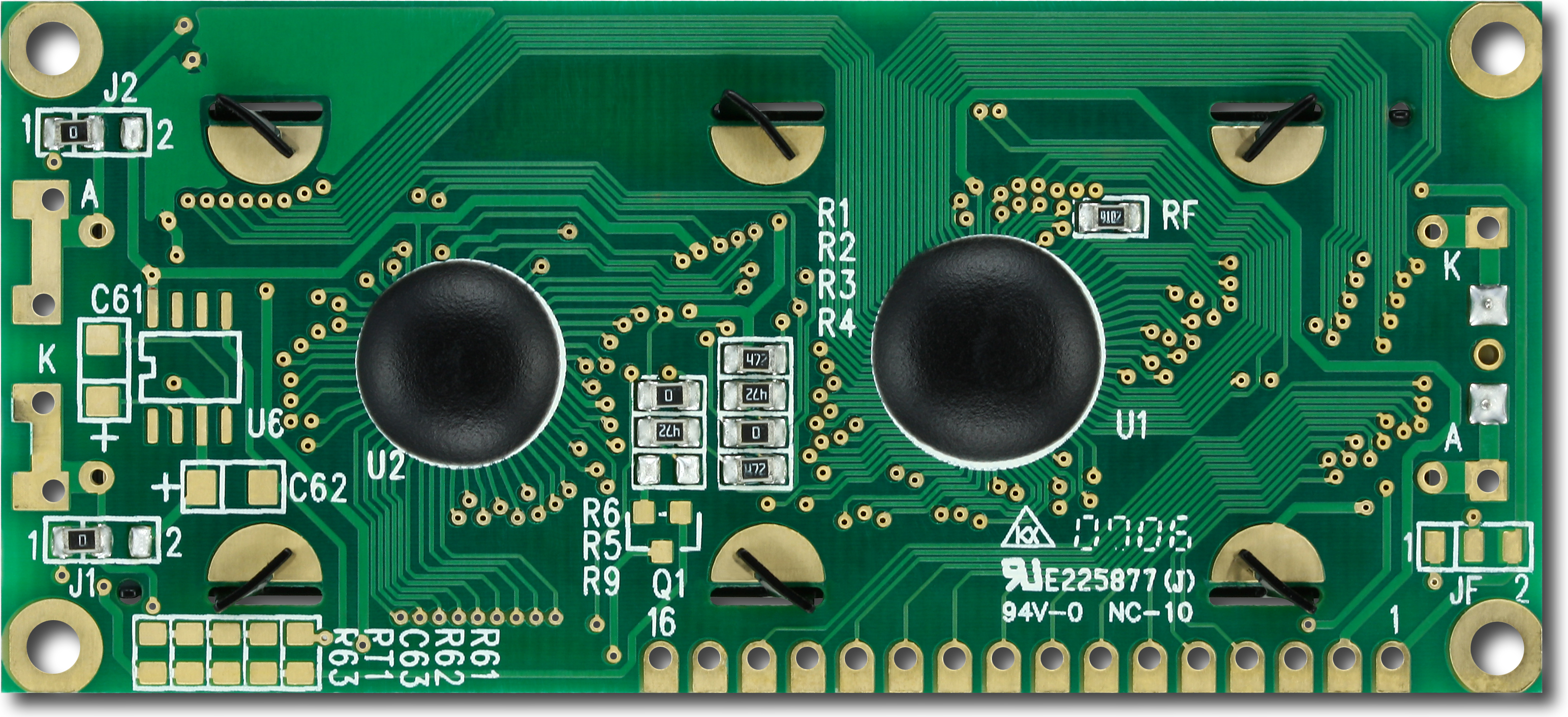

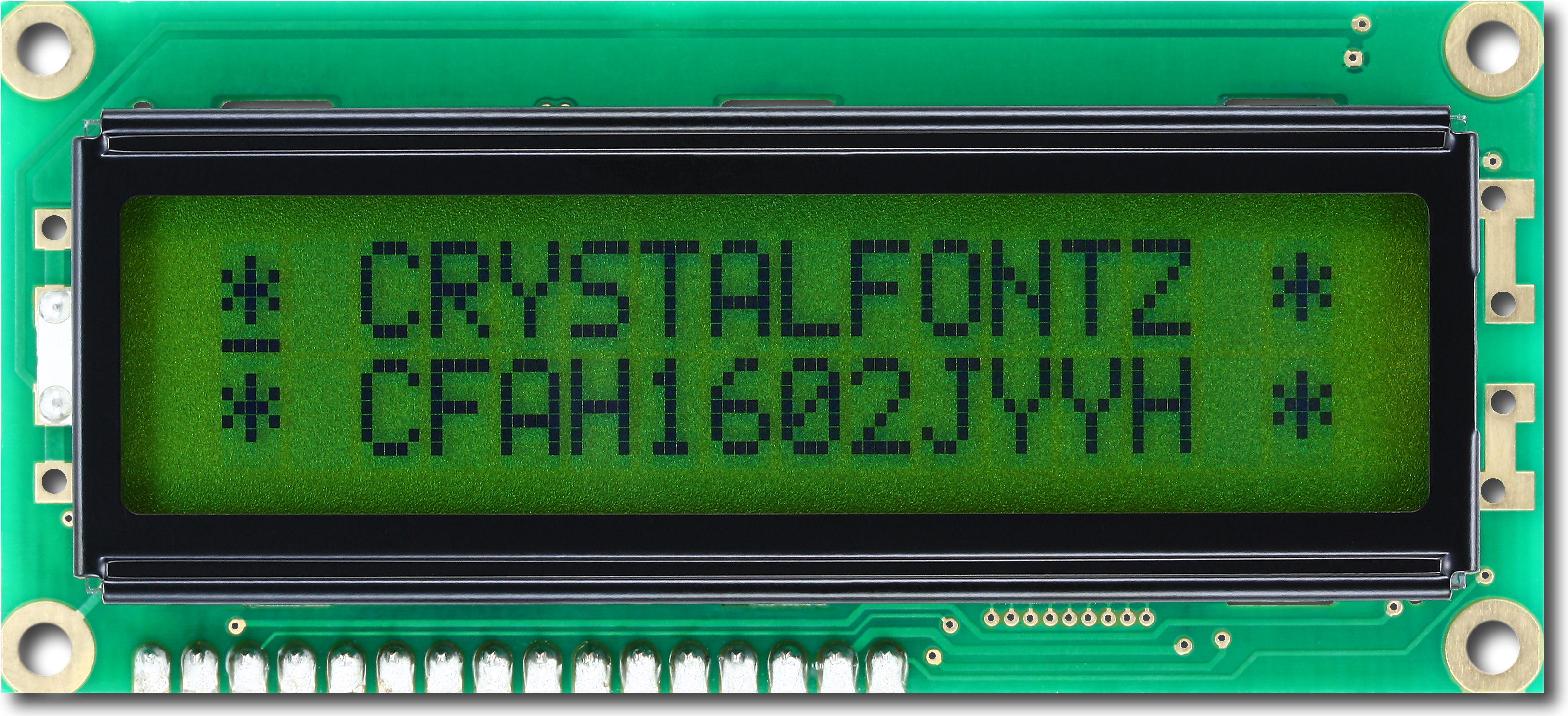

CFAH1602J-YYH-JP
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00CFAH1602J Standard LCDs Family
- Form compatible with the CFAG14432E Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602J character display by switching to the graphic CFAG14432E, or, lower your costs by replacing that graphic with this character module
- Alternate connector position from CFAH1602B series
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Characters x Lines | 16 x 2 |
| Module Overall | |||
|---|---|---|---|
| width | height | depth | |
| millimeters | 80 | 36 | 13.2 |
| inches | 3 | 1 | 0.5 |
| PCB Outline | |||
|---|---|---|---|
| width | height | depth | |
| millimeters | 80 | 36 | 13.2 |
| inches | 3 | 1 | 0.5 |
| Viewing Area | |||
|---|---|---|---|
| width | height | ||
| millimeters | 66 | 16 | |
| inches | 2 | 0 | |
| Active Area | |||
|---|---|---|---|
| width | height | ||
| millimeters | 56.2 | 11.5 | |
| inches | 2.2 | 0.4 | |
| Character Size | |||
|---|---|---|---|
| width | height | ||
| millimeters | 2.95 | 5.55 | |
| inches | 0.11 | 0.21 | |
| Character Pitch | |||
|---|---|---|---|
| width | height | ||
| millimeters | 3.55 | 5.95 | |
| inches | 0.13 | 0.23 | |
| Dot Size | |||
|---|---|---|---|
| width | height | ||
| millimeters | 0.55 | 0.65 | |
| inches | 0.02 | 0.02 | |
| Dot Pitch | |||
|---|---|---|---|
| width | height | ||
| millimeters | 0.6 | 0.7 | |
| inches | 0.0 | 0.0 | |
| Weight | 33g |
Optical Characteristics
| Display Technology | LCD |
| Display Addressing | passive |
| Glass Type/Glass Color | STN/Yellow-Green |
| Polarizer | Transflective |
| View Direction | 6:00 |
| Backlight Color | Yellow-Green |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Yellow-Green |
Environmental
| Operating Temperatures | |||
|---|---|---|---|
| min | max | ||
| Celsius | -20° | 70° | |
| Farenheit | -4° | 158° | |
| Storage Temperatures | |||
|---|---|---|---|
| min | max | ||
| Celsius | -30° | 80° | |
| Farenheit | -22° | 176° | |
| Humidity | |||
|---|---|---|---|
| min | max | ||
| Non-condensing | 0% | 90% | |
Electronics
| Controller | Sunplus SPLC780D |
| Interface | 4-bit Parallel, 8-bit Parallel |
Datasheets
CFAH1602JYYHJP_v2.0.pdf (3MB, Aug 2008, Datasheet v.2.0, Hardware v.A)
CFAH1602J-YYH-JP Data Sheet and Sunplus SPLC780C Controller/Driver Data Sheet (2MB, Apr 2008, Datasheet v.1, Hardware v.A)
CFAH1602JYYHJP.pdf (627KB, Jun 2006)
CFAH1602J-YYH-JP Data Sheet and Sunplus SPLC780C Controller/Driver Data Sheet (2MB, Apr 2008, Datasheet v.1, Hardware v.A)
CFAH1602JYYHJP.pdf (627KB, Jun 2006)
Other Files
For reference only. For design purposes, please use the specifications in the datasheet.
Can also be used with the Evaluation and Development Platform:
add a note
User Contributed Notes for CFAH1602J-YYH-JP
No notes for this product yet.
Quick Product Info
This part replaces CFAH1602J-YYB-JP
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602JYYHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
