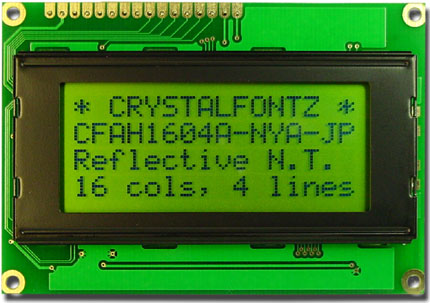

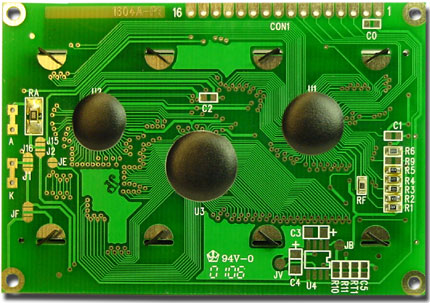

CFAH1604A-NYG-JP
Parallel Character LCD 16x4, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
CFAH1604A Standard LCDs Family
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
- Complete Product Development Kit available
For reference only. For design purposes, please use the specifications in the
datasheet.
Physical Characteristics
| Characters x Lines |
16 x 4 |
| Module Overall |
|---|
|
width |
height |
depth |
| millimeters |
87 |
60 |
9.5 |
| inches |
3 |
2 |
0.3 |
| PCB Outline |
|---|
|
width |
height |
depth |
| millimeters |
87 |
60 |
9.5 |
| inches |
3 |
2 |
0.3 |
| Viewing Area |
|---|
|
width |
height |
| millimeters |
62 |
26 |
| inches |
2 |
1 |
| Active Area |
|---|
|
width |
height |
| millimeters |
56.2 |
20.8 |
| inches |
2.2 |
0.8 |
| Character Size |
|---|
|
width |
height |
| millimeters |
2.95 |
4.75 |
| inches |
0.11 |
0.18 |
| Character Pitch |
|---|
|
width |
height |
| millimeters |
3.55 |
5.35 |
| inches |
0.13 |
0.21 |
| Dot Size |
|---|
|
width |
height |
| millimeters |
0.55 |
0.55 |
| inches |
0.02 |
0.02 |
| Dot Pitch |
|---|
|
width |
height |
| millimeters |
0.6 |
0.6 |
| inches |
0.0 |
0.0 |
Optical Characteristics
| Display Technology |
LCD |
| Display Addressing |
passive |
| Glass Type/Glass Color |
STN/Yellow-Green |
| Polarizer |
Reflective |
| View Direction |
6:00 |
| Backlight Type |
None |
| Mode |
Positive |
| Foreground Color |
Dark |
| Background Color |
Yellow-Green |
Environmental
| Operating Temperatures |
|---|
|
min |
max |
| Celsius |
-20° |
70° |
| Farenheit |
-4° |
158° |
| Storage Temperatures |
|---|
|
min |
max |
| Celsius |
-30° |
80° |
| Farenheit |
-22° |
176° |
Electronics
| Controller |
Sunplus SPLC780D |
| Interface |
4-bit Parallel, 8-bit Parallel |
