This product is discontinued and has been replaced by CFAH2002A-TMI-JT.

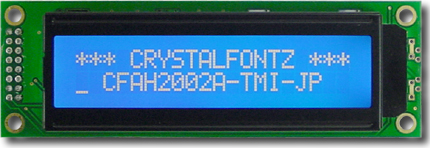

CFAH2002A-TMI-JP photo

CFAH2002A-TMI-JP

Parallel Character LCD 20x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20C to +70C 6:00
Please look at the CFAG19232C, which is a 192x32 graphic LCD module that is mechanically compatible with the standard CFAH2002A 20x2 character modules.

CFAH2002A Standard, Color and Wide Temperature LCDs Family

  • Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer  (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant
For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 20 x 2
Module Overall
width height depth
millimeters 116 37 13.9
inches 4.56 1.45 0.54
PCB Outline
width height depth
millimeters 116 37 13.9
inches 4.56 1.45 0.54
Viewing Area
width height
millimeters 85 18.6
inches 3.34 0.73
Active Area
width height
millimeters 73.5 11.5
inches 2.89 0.45
Character Size
width height
millimeters 3.2 5.55
inches 0.12 0.21
Character Pitch
width height
millimeters 3.7 5.95
inches 0.14 0.23
Dot Size
width height
millimeters 0.6 0.65
inches 0.02 0.02
Dot Pitch
width height
millimeters 0.65 0.7
Weight 52g

Optical Characteristics

Display Technology LCD
Display Addressing passive
Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Environmental

Operating Temperatures
min max
Celsius -20° 70°
Farenheit -4° 158°
Storage Temperatures
min max
Celsius -30° 80°
Farenheit -22° 176°

Electronics

Controller Hitachi HD44780 Compatible
Interface 4-bit Parallel, 8-bit Parallel

Datasheets

CFAH2002ATMIJP.pdf (610KB, Jun 2006)
The content of this "JP" Data Sheet is accurate for the "JT" except for references to the controller. The "JT" uses a Sitronix ST7066U.

Other Files

Subscribe to Part Change Notices by email Email subscription for changes to CFAH2002A-TMI-JP or RSS RSS feed for changes to CFAH2002A-TMI-JP
No notices have been issued for this part.
For reference only. For design purposes, please use the specifications in the datasheet.
add a note add a note

User Contributed Notes for CFAH2002A-TMI-JP

No notes for this product yet.

Quick Product Info

This part replaces CFAH2002A-TMC-JP
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2002ATMIJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
