CFAL12864C-Y-B1
128 x 64 Graphic OLED module, Yellow OLED
CFAL12864C Graphic OLEDs Family
-
128x64 graphic OLED display module
-
Extremely wide viewing angles
-
Very high contrast ratio
-
Built-in Solomon SSD1305 Controller
-
8-bit parallel interface or SPI Interface
-
RoHS Compliant

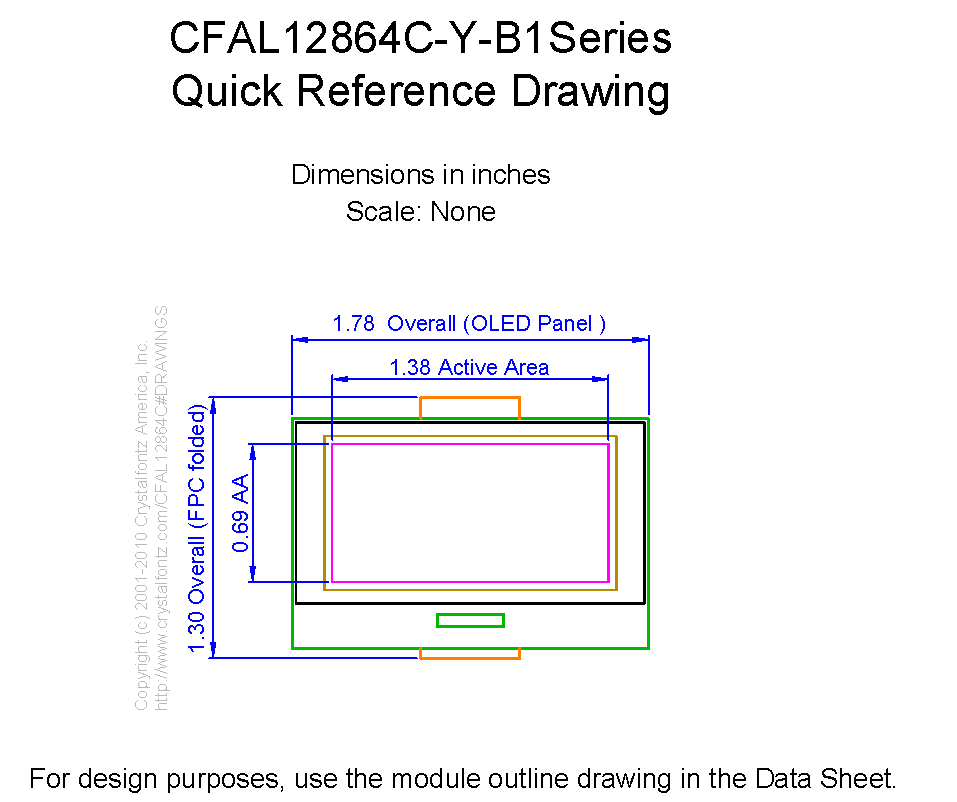

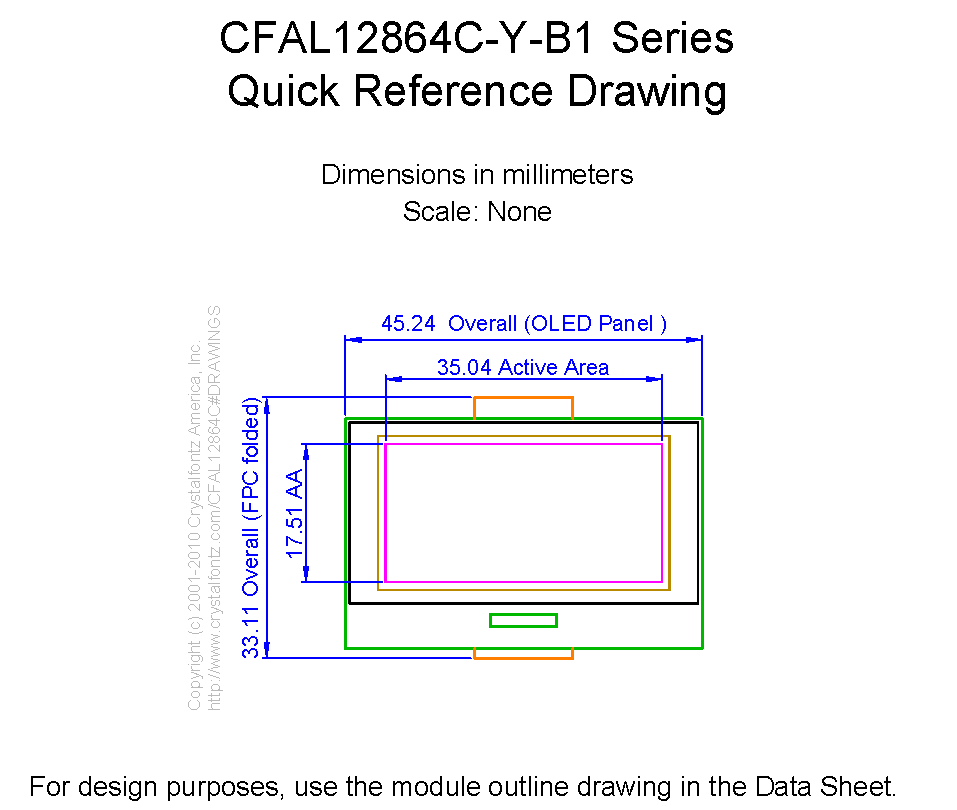

For reference only. For design purposes, please use the specifications in the
datasheet.
Physical Characteristics
| Column Dots x Row Dots |
128 x 64 |
| Module Overall |
|---|
|
width |
height |
depth |
| millimeters |
45.24 |
29.14 |
2.2 |
| inches |
1.78 |
1.14 |
0.0 |
| Other Features Affecting Size |
|
Please see the datasheet
|
| Viewing Area |
|---|
|
width |
height |
| millimeters |
37.04 |
19.51 |
| inches |
1.45 |
0.76 |
| Active Area |
|---|
|
width |
height |
| millimeters |
35.04 |
17.51 |
| inches |
1.37 |
0.68 |
| Dot Size |
|---|
|
width |
height |
| millimeters |
0.24 |
0.24 |
| inches |
0.00 |
0.00 |
| Dot Pitch |
|---|
|
width |
height |
| millimeters |
0.27 |
0.27 |
| inches |
0.01 |
0.01 |
Optical Characteristics
| Display Technology |
OLED |
| Display Addressing |
passive |
| Glass Type |
OLED |
| Polarizer |
Emissive |
| Backlight Type |
None |
| Mode |
Positive |
| Foreground Color |
Yellow |
| Background Color |
Dark |
Electrical Specifications
| Module Connector Pitch |
0.5mm |
Environmental
| Operating Temperatures |
|---|
|
min |
max |
| Celsius |
-20° |
70° |
| Farenheit |
-4° |
158° |
| Storage Temperatures |
|---|
|
min |
max |
| Celsius |
-30° |
80° |
| Farenheit |
-22° |
176° |
| Humidity |
|---|
|
min |
max |
| Non-condensing |
0% |
90% |
Electronics
| Controller |
Solomon SSD1305 |
| Interface |
8-bit Parallel, SPI |
Subscribe to Part Change Notices by email
or RSS
No notices have been issued for this part.
Quick Product Info
Backordered, expected on July 15, 2012
This part is not recommended for new designs.
Because this is quickly evolving, cutting edge technology, there may be fit, form or function variances between manufacturing lots.
