This product is discontinued.
CFAL12864Z-G-B2 photo

CFAL12864Z-G-B2

128 x 64 Graphic OLED module, Green Grayscale OLED

CFAL12864Z Graphic OLEDs Family

  • Possibly form compatible with the CFAG12864A Series of Graphic LCD modules. Upgrade your product that uses the CFAG12864A graphic LCD by switching to this CFAL12864Z graphic OLED, or, lower your cost by switching from the OLED to LCD
  • 128x64 graphic OLED display module
  • 16-level greyscale
  • Single 3v supply and logic levels (modules with PCB only)
  • Extremely wide viewing angles
  • Very high contrast ratio
  • Built-in Solomon SSD1325 Controller
  • 8-bit parallel interface or SPI Interface
  • RoHS Compliant
For reference only. For design purposes, please use the specifications in the datasheet.

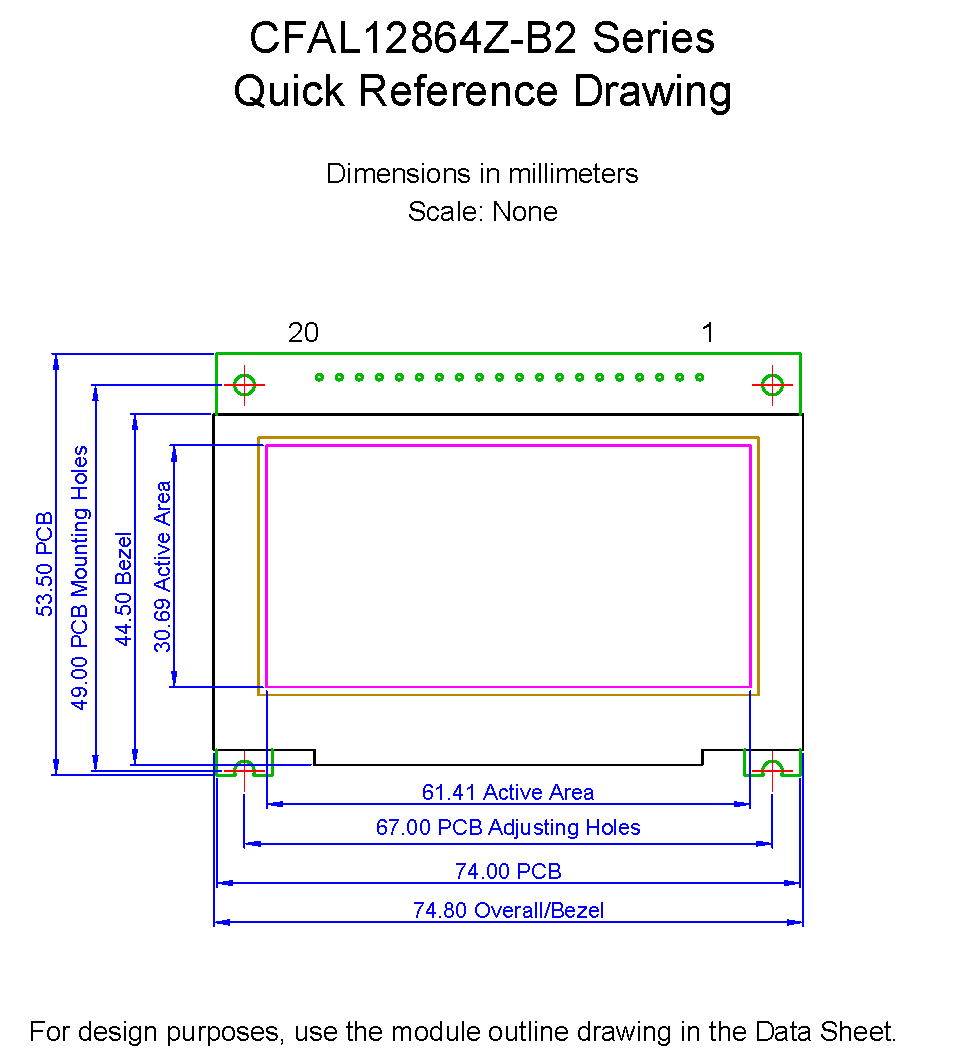

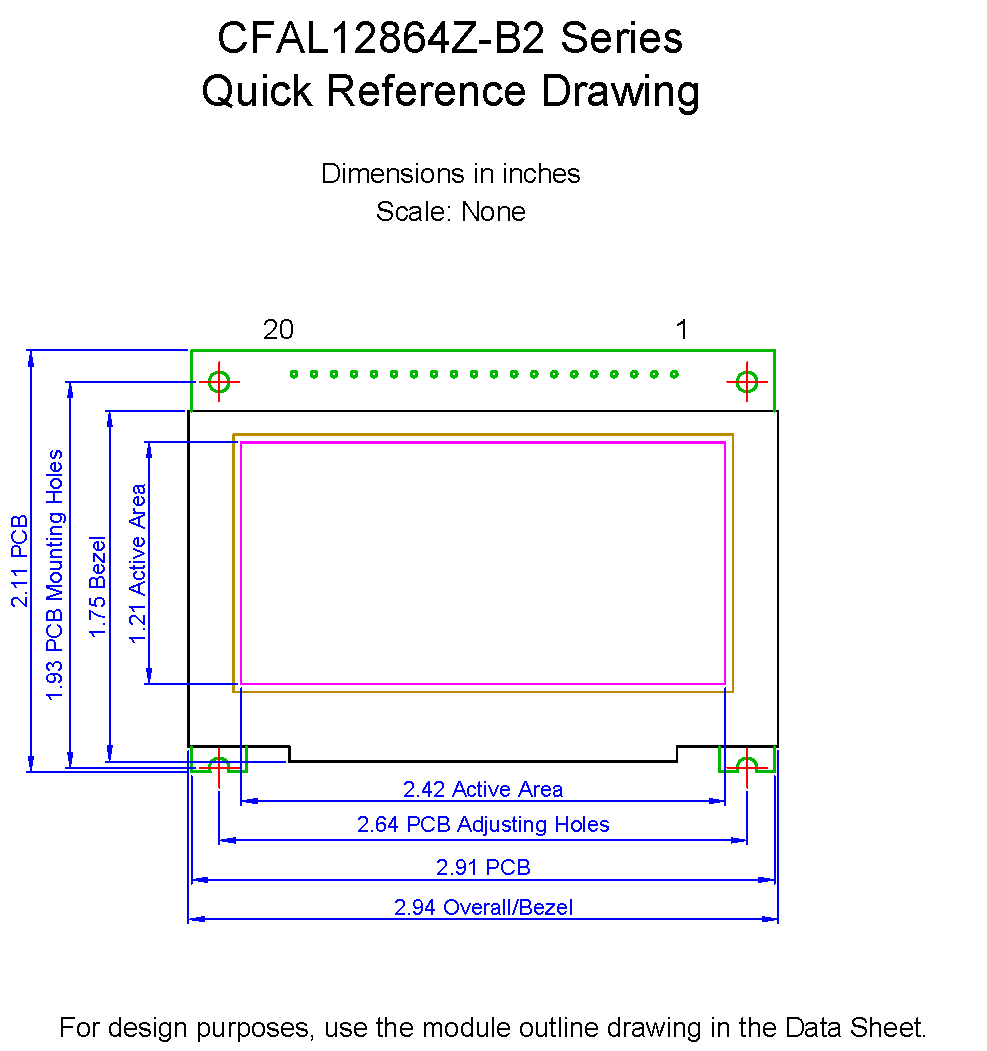

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall
width height depth
millimeters 74.8 53.5 6
inches 2.9 2.1 0
PCB Outline
width height depth
millimeters 74.8 53.5 6
inches 2.9 2.1 0
Viewing Area
width height
millimeters 63.4 32.7
inches 2.4 1.2
Active Area
width height
millimeters 63.94 31.94
inches 2.51 1.25
Dot Size
width height
millimeters 0.45 0.45
inches 0.01 0.01
Dot Pitch
width height
millimeters 0.48 0.48
inches 0.01 0.01
Weight 26g

Optical Characteristics

Display Technology OLED
Display Addressing passive
Glass Type OLED
Polarizer Emissive
Backlight Type None
Mode Positive
Foreground Color Green
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.4V
Supply Voltage for Logic Maximum 3.5V
Supply Voltage for Logic Typical 3.3V
Module Connector Pitch 0.10”

Environmental

Operating Temperatures
min max
Celsius -20° 70°
Farenheit -4° 158°
Storage Temperatures
min max
Celsius -30° 80°
Farenheit -22° 176°
Humidity
min max
Non-condensing 0% 90%

Electronics

Controller Solomon SSD1325
Interface 8-bit Parallel, SPI

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12864Z-G-B2 or RSS RSS feed for changes to CFAL12864Z-G-B2

Part Change Notice #10344

Products Affected: CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12864Z-G-B2, CFAL12864Z-G-B4, CFAL12864Z-Y-B2, CFAL12864Z-Y-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued: April 21, 2011
Summary: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

For reference only. For design purposes, please use the specifications in the datasheet.

Quick Product Info

This part is not recommended for new designs.
Not recommended for new designs. Available in small quantities only.
