This product is discontinued.
CFAX12864A-NFH photo

CFAX12864A-NFH

Ultra Compact Graphic LCD, RoHS Compliant, No Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00

CFAX12864A Graphic LCD Family

  • Ultra thin and light TAB construction
  • Available in several variations of backlight and polarizer  (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Samsung KS0713 controller
  • Great for handheld instruments, cell phones, PDAs, etc
  • Ultra low power consumption
  • RoHS Compliant
For reference only. For design purposes, please use the specifications in the datasheet.

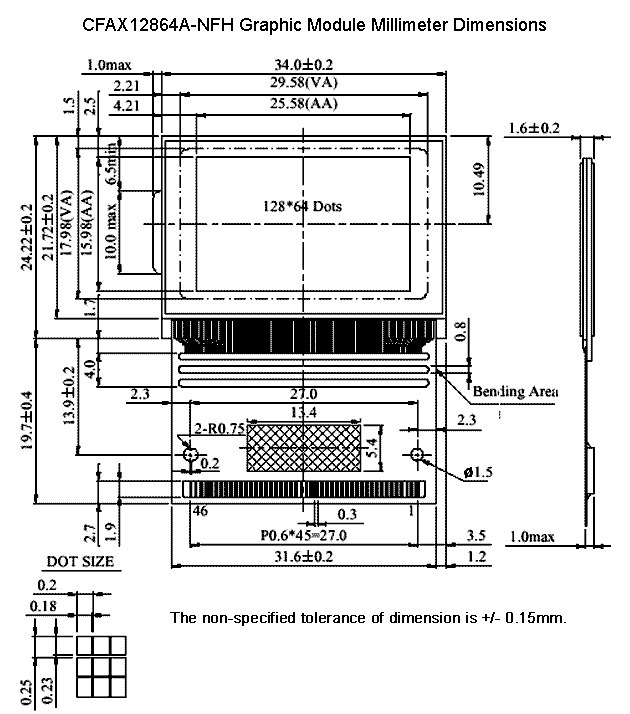

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall
width height depth
millimeters 34 24.22 1.8
inches 1 0.95 0.0
PCB Outline
width height depth
millimeters 34 24.22 1.8
inches 1 0.95 0.0
Viewing Area
width height
millimeters 29.58 17.98
inches 1.16 0.70
Active Area
width height
millimeters 25.58 15.98
inches 1.00 0.62
Dot Size
width height
millimeters 0.18 0.23
inches 0.00 0.00
Dot Pitch
width height
millimeters 0.2 0.25
inches 0.0 0.00

Optical Characteristics

Display Technology LCD
Display Addressing passive
Glass Type/Glass Color FSTN/Light Grey
Polarizer Transflective
View Direction 6:00
Backlight Type None
Mode Positive
Foreground Color Dark
Background Color Light Grey

Electrical Specifications

Module Connector Pitch 0.6mm

Environmental

Operating Temperatures
min max
Celsius -20° 70°
Farenheit -4° 158°
Storage Temperatures
min max
Celsius -30° 80°
Farenheit -22° 176°
Humidity
min max
Non-condensing 0% 90%

Electronics

Controller Samsung KS0713
Interface 8-bit Parallel, SPI

Datasheets

CFAX12864ANFH.pdf (288KB, Jun 2006)

Other Files

Subscribe to Part Change Notices by email Email subscription for changes to CFAX12864A-NFH or RSS RSS feed for changes to CFAX12864A-NFH

Part Change Notice #10279

Products Affected: CFAX12864A-NFH, CFAX12864AP1-NFH, CFAX12864AP1-TFH, CFAX12864AP1-WFH, CFAX12864A-WFH, CFAX12864C-NGH, CFAX12864CP1-NGH, CFAX12864CP1-WGH, CFAX12864CP1-WGH-TS, CFAX12864CP1-TFH, CFAX12864C-WGH, CFAX12864C-WGH-TS
Date Issued: March 31, 2010
Summary: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Description: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Reason: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued due to end of life of Samsung KS0713 controller chip.
Impact: //SHL (C8 C0) (Flips display top to bottom, assuming landscape orientation) This will need to be changed to 0xC8 from 0xC0 for the new Novatek NT7534 controller versus the Samsung KS0713. There is no migration path for users of the CFAX12864A and CFAX12864C modules other than to re-lay out their board to use the CFAX12864T or CFAX12864U, which is not pin compatible.
Recommendation: Users of CFAX12864AP1 and CFAX12864CP1 LCD modules can use the compatible CFAX12864T1 and CFAX12864U1 replacement modules respectively.
Availability: Immediate

For reference only. For design purposes, please use the specifications in the datasheet.

Quick Product Info

This part is not recommended for new designs.
This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.
