CFAX12864T1-TFH

This is an extremely low-power 128x64 graphic LCD display module. It has an integrated white LED backlight that illuminates the display easily in low-light conditions. This display is perfectly suited for hand-held or any application requiring low-power or a very a thin display. It has an integrated controller and the FFC tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).

General
Tech Specs
Docs / Files
Notices
Dimensions
Related

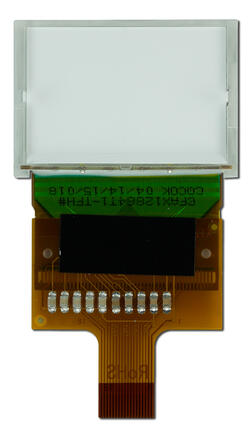

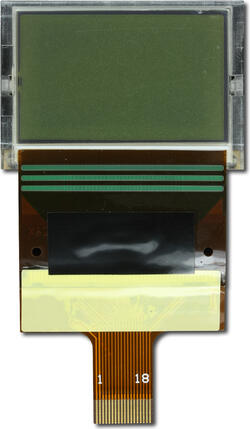

Photos

CFAX12864T1 Graphic LCDs Family

Ultra thin and light TAB construction
Fit, Form, and Function compatible with CFAX12864AP1 series of LCD modules
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
Built-in Novatek NT7534 controller
Demonstration board available here: CFAXZIFDEMO
Great for handheld instruments, cell phones, PDAs, etc
Ultra low power consumption
RoHS Compliant

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots

128 x 64

Module Overall
	width	height	depth
millimeters	38	37.11	9.33
inches	1	1.46	0.36

Other Features Affecting Size
Foldable Tab Please see the datasheet

Viewing Area
	width	height
millimeters	29.58	17.98
inches	1.16	0.70

Active Area
	width	height
millimeters	25.58	15.98
inches	1.00	0.62

Dot Size
	width	height
millimeters	0.18	0.23
inches	0.00	0.00

Dot Pitch
	width	height
millimeters	0.2	0.25
inches	0.0	0.00

Weight

5.9g

Optical Characteristics

Display Technology	LCD
Display Addressing	passive
Glass Type/Glass Color	FSTN/Light Grey
Polarizer	Transflective
View Direction	6:00

Backlight Color	White
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	White

Electrical Specifications

Supply Current Minimum	0.18mA
Supply Current Maximum	0.18mA

Supply Current Typical	0.18mA
Module Connector Pitch	0.5mm

Backlight Electrical Specifications

Forward Voltage Minimum	3.4V
Forward Voltage Maximum	3.6V
Forward Voltage Typical	3.5V

Forward Current Minimum	28.8mA
Forward Current Maximum	50mA
Forward Current Typical	32mA

Environmental

Operating Temperatures
	min	max
Celsius	-20°	70°
Farenheit	-4°	158°

Storage Temperatures
	min	max
Celsius	-30°	80°
Farenheit	-22°	176°

Humidity
	min	max
Non-condensing	0%	90%

Electronics

Controller	Novatek NT7534
Interface	8-bit Parallel, SPI

Datasheets

CFAX12864T1TFH.pdf (343KB, May 2009)

Other Files

Controller Datasheet - Controller_Data_Sheet_Novatek_NT7534_v2.0.pdf (626KB)
Software Source - CFAX_WinTest for U1 / T1 series (95KB) WinTest software for use with the CFAXZIFDEMO. Supports modules with Neotec NT7534 controller.
Software Source - Demonstration Code for DMOG12864T (100KB)
CAD Export - CFAX12864T1-TFH_2D_CAD (389KB)
1 to 1 Template - CFAX12864T1-TFH_1_TO_1 (39KB)

Subscribe to Part Change Notices by email or RSS

No notices have been issued for this part.
