WR-232-Y09
This is a 36" RS232 ribbon cable, DB9 female to DB9 male with a bracket to fit a PC expansion slot. Used in conjunction with the
WR232Y10 cable, one can connect our serial
CFA-632 or
CFA-634 displays to a standard 9-pin RS232 connection as found on a PC or the
USB232a converter.
Physical Characteristics
| Weight |
50g |
| Cable Length |
0.9m |
Subscribe to Part Change Notices by email
or RSS
No notices have been issued for this part.

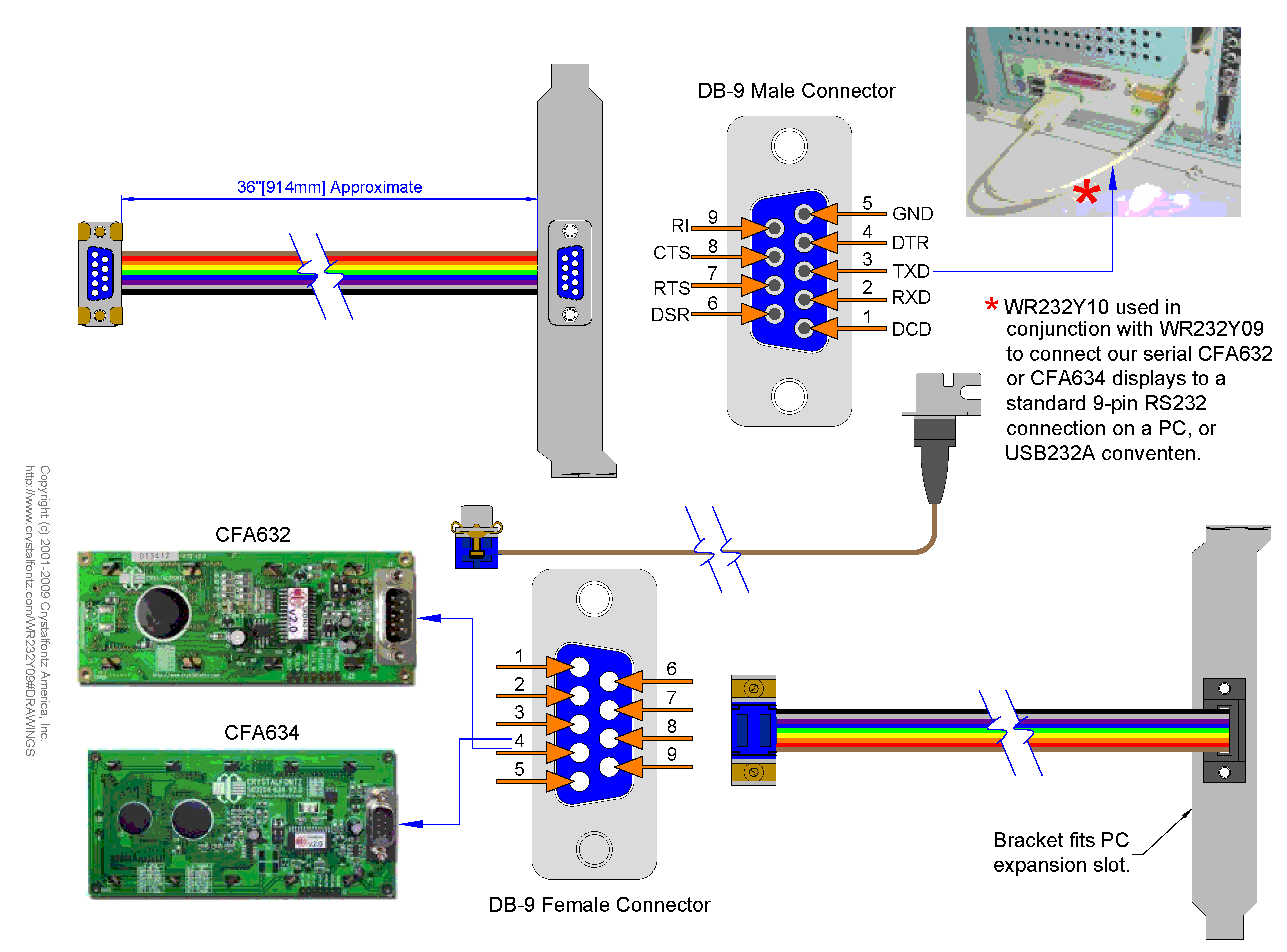

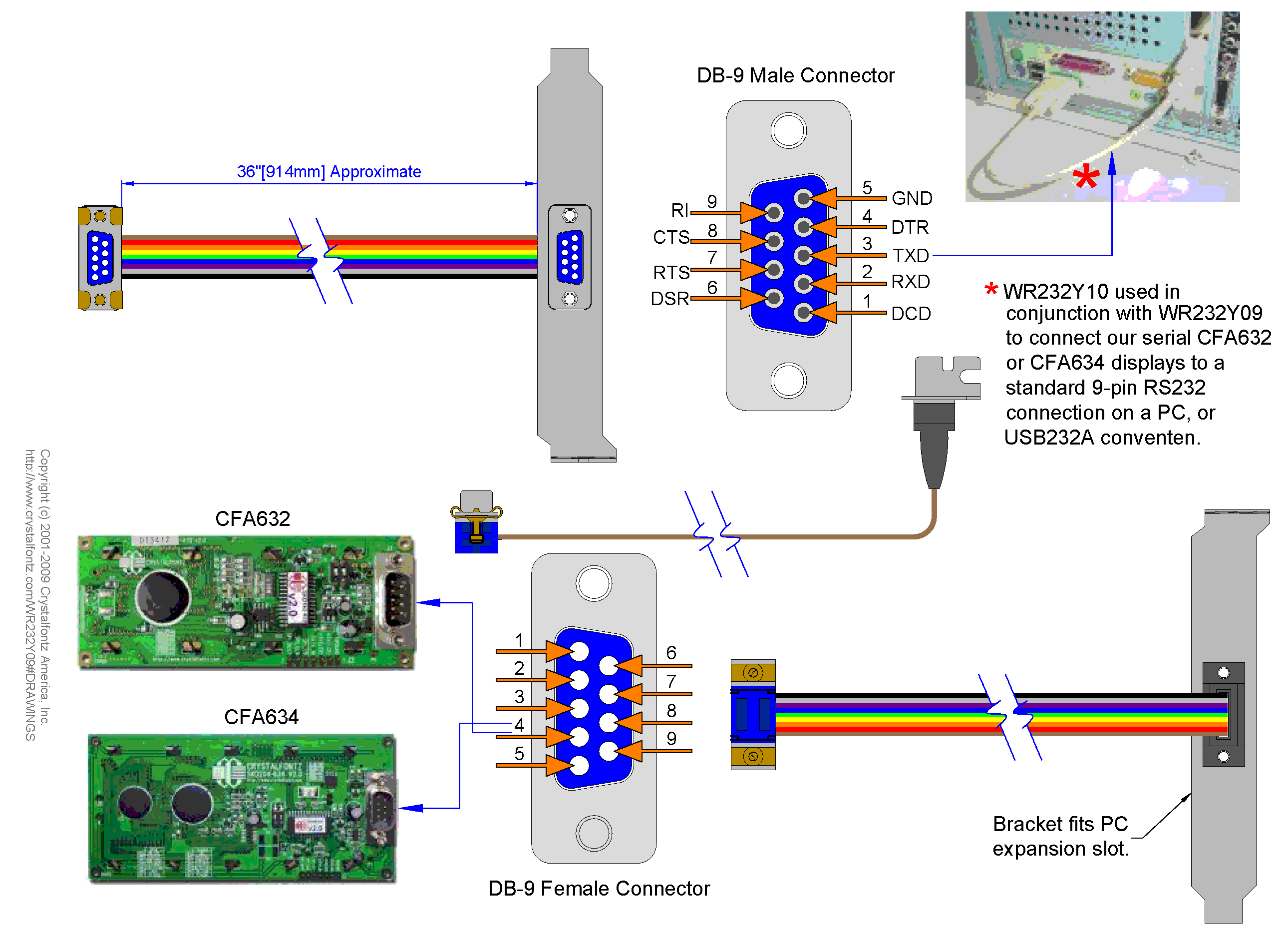

This is a RS-232 DB-9(female) to DB-9(male) 36" ribbon cable
with a bracket to fit a PC expansion slot.
This is a close-up of the DB9 ends of the ribbon cable.
This is a close-up of the DB9 connector hardware.
This shows the bracket end of the WR232Y09 in the
PC expansion slot (with the ribbon cable inside), and the WR232Y10 13" cable
connecting the WR232Y09 bracket end with the serial port.
| Quantity |
Price |
| 1 |
$5.00 |
| 20 |
$4.00 |
| 50 * |
$3.50 |
|
* These quantities may have up to 90 days lead time.
|
