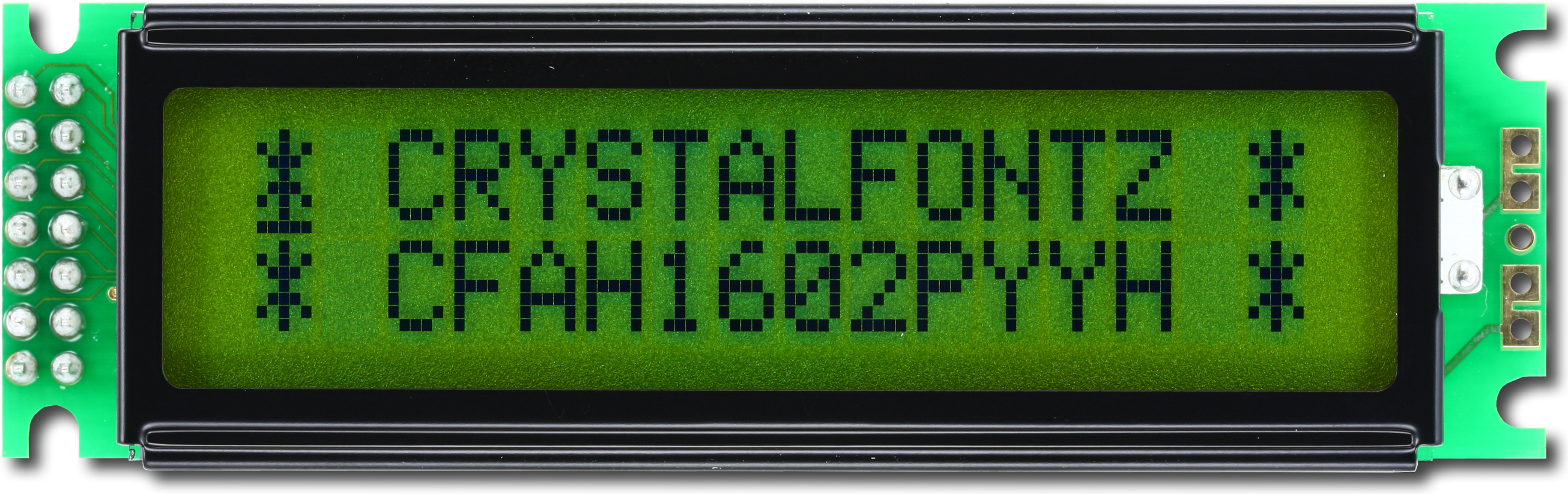

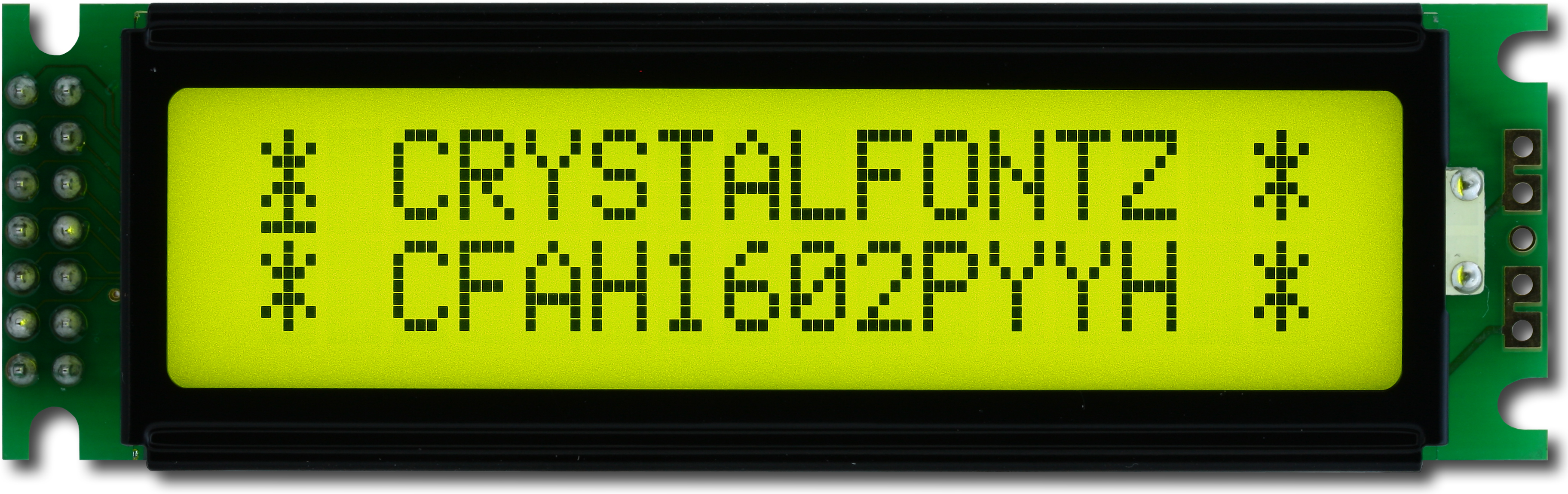

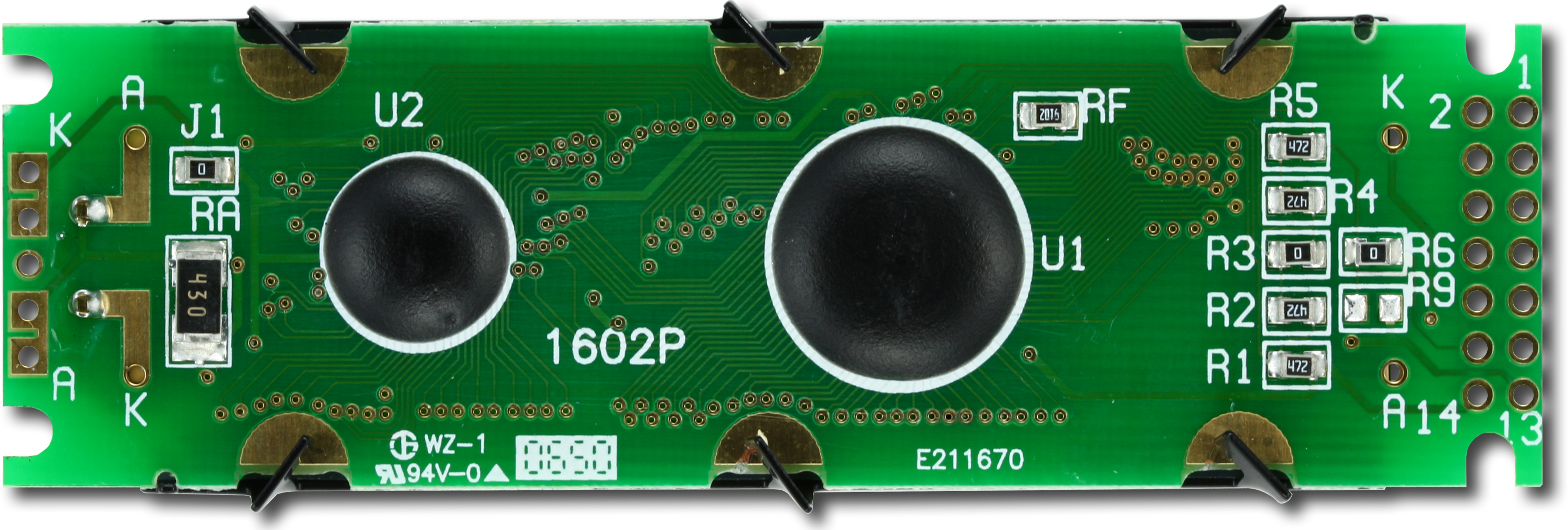

Yellow Transflective 16x2 Character LCD

Part Number: CFAH1602P-YYH-ET

Yellow-green, sunlight readable 16x2 character LCD with LED backlight.

• Characters / Columns: 16x2
• Optics: 6:00 viewing direction
• Backlight: Yellow-green LED
• Glass: STN Positive, Transflective
• Controller: Sitronix ST7066U (HD44780 compatible)
• Operating Temp: -20°C to +70°C
• Interfaces: 4 & 8 bit parallel
• Compliance: REACH & RoHS Compliant

Product Variants

Details16x2 Character White on Blue LCD
4-bit Parallel,8-bit Parallel, White on Blue

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  16 x 2

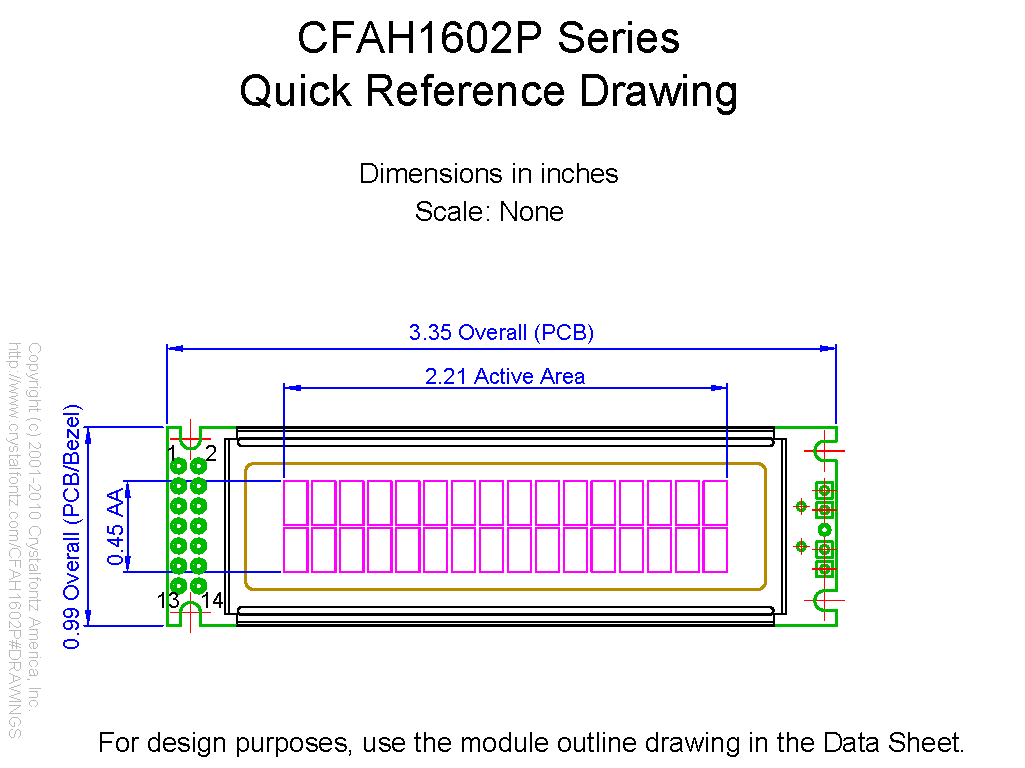

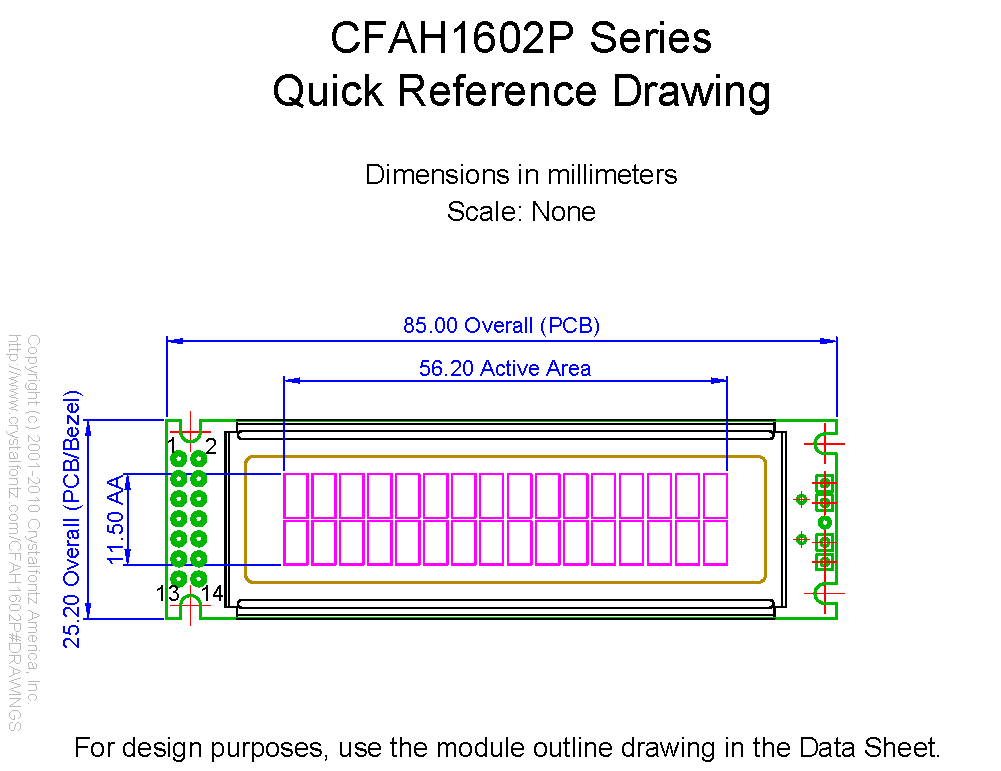

  Module Overall	width	height	depth
  millimeters	85	25.2	13.2
  inches	3.346	0.992	0.520

  PCB Outline	width	height	depth
  millimeters	85	25.2	13.2
  inches	3.346	0.992	0.520

  Diagonal Dimension

  2.26"

  Viewing Area	Width	Height
  millimeters	66	16
  inches	2.598	0.630

  Active Area	Width	Height
  millimeters	56.2	11.5
  inches	2.213	0.453

  Character Size	Width	Height
  millimeters	2.95	5.55
  inches	0.116	0.219

  Character Pitch	Width	Height
  millimeters	3.55	5.95
  inches	0.140	0.234

  Dot Size	Width	Height
  millimeters	0.55	0.65
  inches	0.022	0.026

  Dot Pitch	Width	Height
  millimeters	0.6	0.7
  inches	0.024	0.028

  Weight	32g
  Pin Count	14

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Yellow-Green
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	Yellow-Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	Yellow-Green

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	4.5V
  Supply Voltage for Logic Maximum	5.5V
  Supply Voltage for Logic Typical	5V
  Supply Voltage for Driving Panel Typical	3.7V

  Supply Current Minimum	1mA
  Supply Current Maximum	1.5mA
  Supply Current Typical	1.2mA
  Module Connector Pitch	0.1mm

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	4.9V
  Forward Voltage Maximum	5.1V
  Forward Voltage Typical	5V

  Forward Current Minimum	117mA
  Forward Current Maximum	156mA
  Forward Current Typical	130mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7066U ST7066U Dot Matrix LCD Controller/Driver Sitronix ST7066U Sitronix ST7066U Dot Matrix LCD Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH1602PYYHET Datasheet


• download Files and Downloads
  folder_zip CAD Export - CFAH1602P-2D CAD


  picture_as_pdf 1 to 1 Template


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
