CFAH1202A Standard LCD
Parallel Character LCD 12x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00, Edge Style Backlight,
This module is replacing the CFAH1202AGGHJP.
CFAH1202A-GGH-JT: Front, backlight on
(click image to see detail view)
CFAH1202A-GGH-JT: Front view
(click image to see detail view)
Parallel Character LCD 12x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
This module is replacing the CFAH1202ANYGJP.
CFAH1202A-NYG-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 12x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH1202ATMIJP.
CFAH1202A-TMI-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 12x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH1202ATTIJP.
CFAH1202A-TTI-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 12x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Edge Style Backlight
This module is replacing the CFAH1202AYYHJP.
CFAH1202A-YYH-JT: Front, backlight on
(click image to see detail view)
CFAH1202A-YYH-JT: Front view
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- PCB Width: 55.7mm
- PCB Height: 32mm
- Viewing Width: 46mm
- Viewing Height: 14.5mm
- Active Area Width: 37.85mm
- Active Area Height: 11.7mm
- Character Width: 2.65mm
- Character Height: 5.55mm
- PCB Depth: 9.7mm
- Dot Pitch Width: 0.55mm
- Dot Pitch Height: 0.7mm
- Dot Size Width: 0.45mm
- Dot Size Height: 0.6mm
- Character Pitch Width: 3.2mm
- Character Pitch Height: 6.2mm
- Weight: 16g
- Characters: 12
- Lines: 2
- Overall Width: 55.7mm
- Overall Height: 32mm
- Overall Depth: 9.7mm
Documents:

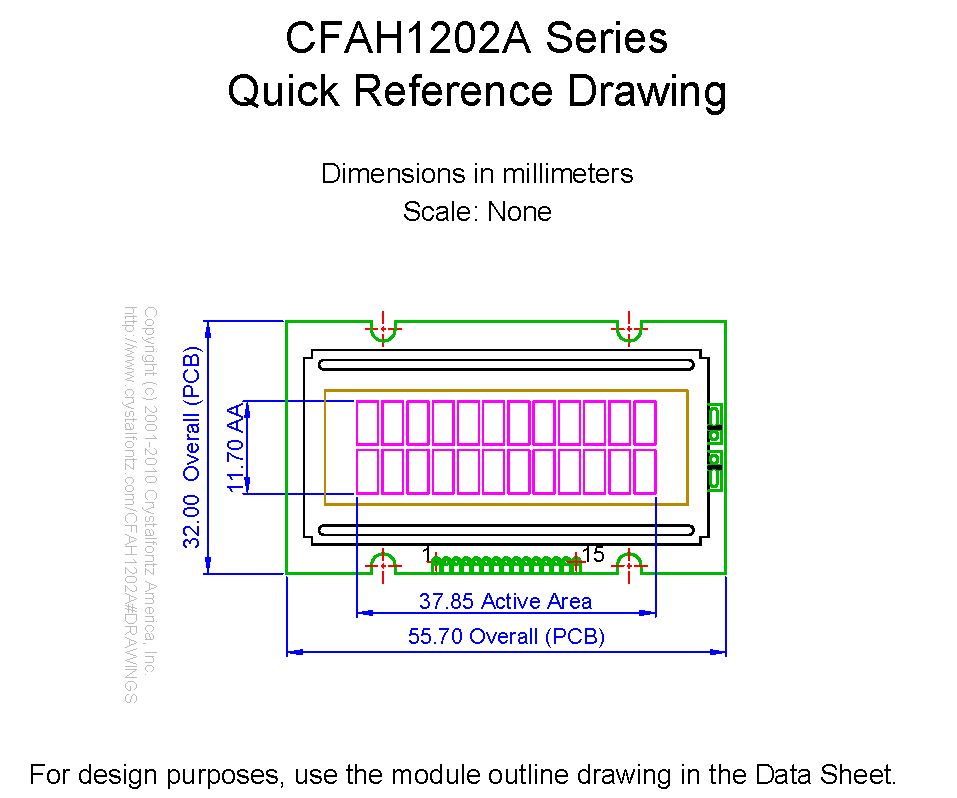

1 to 1 Template (27KB)Metric Scale Drawing (20KB)

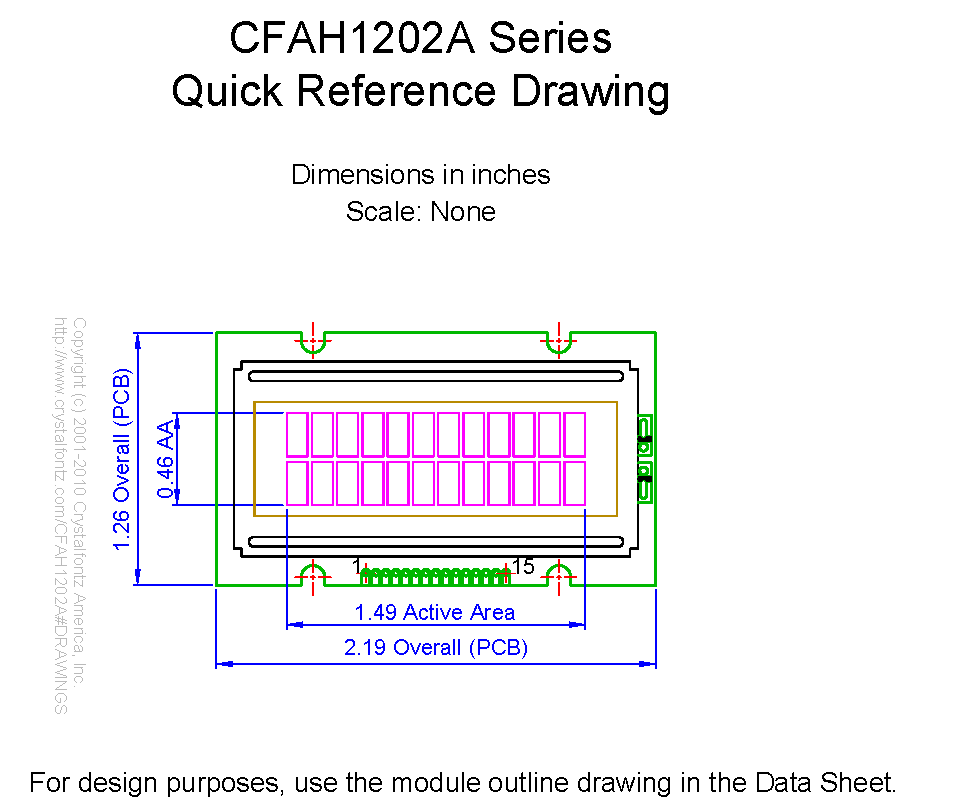

Inches Scale Drawing (19KB)
CAD Export - CFAH1202A_2D_CAD.zip (147KB)
Datasheets
