CFAG14432A Graphic LCD

CFAG14432A-TFH-TT

144x32 Graphic LCD, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG14432A-TFH-TT: Front, backlight on

CFAG14432A-TMI-TT

Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG14432A-TMI-TT: Front, backlight on

CFAG14432A-YYH-TT

Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG14432A-YYH-TT: Front, backlight on

CFAG14432A-YYH-TT: Front view

Back view

Features:

Fit and form compatible with the CFAH1602C Series of Character LCD modules -- give your CFAH1602C module a mid-life upgrade
Available in several variations of backlight and polarizer
Very wide viewing angles
8-bit, 4-bit parallel interface, or SPI interface
RoHS Compliant

Dimensions:

Row x Column Dots: 144 x 32
PCB Outline (W x H x D): 85mm x 36mm
Viewing Area: 66mm x 16mm
Active Area: 60.44mm x 13.4mm

Documents:

1 to 1 Template: TFH-TT, TMI-TT (183KB)
1 to 1 Template: YYH-TT (35KB)

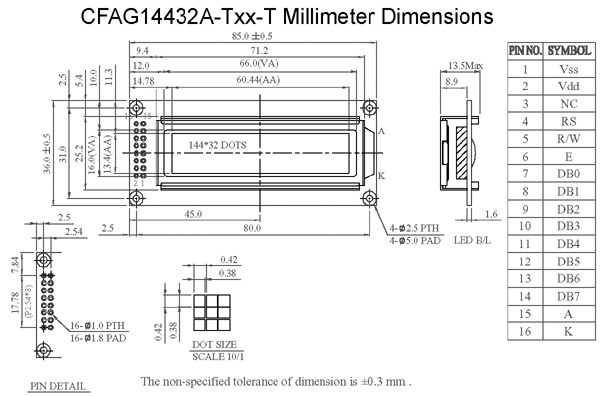

Metric Scale Drawing: TFH-TT, TMI-TT (44KB)

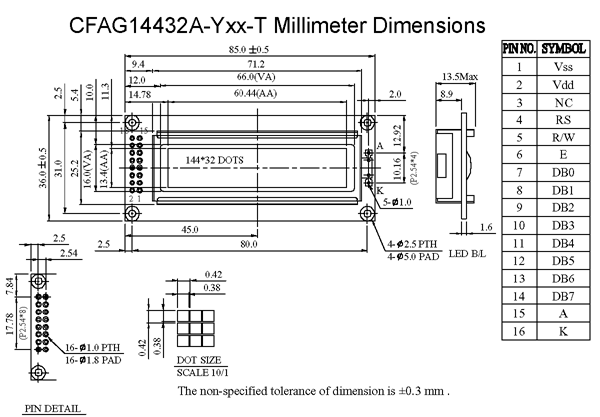

Metric Scale Drawing: YYH-TT (39KB)
Datasheets
