CFAH1602A Standard and Color LCD
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602AYYHJP.
CFAH1602A-YYH-JT: Front, backlight on
(click image to see detail view)
CFAH1602A-YYH-JT: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Edge Style Backlight
This module is replacing the CFAH1602AYYHJPE.
CFAH1602A-YYH-JTE: Front, backlight on
(click image to see detail view)
CFAH1602A-YYH-JTE: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602AAGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH1602A-AGH-JP: Front, backlight on
CFAH1602A-AGH-JP: Front view
Parallel Character LCD 16x2, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602AAGHJP.
CFAH1602A-AGH-JT: Front, backlight on
(click image to see detail view)
CFAH1602A-AGH-JT: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602AGGHJP.
CFAH1602A-GGH-JT: Front, backlight on
(click image to see detail view)
CFAH1602A-GGH-JT: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602ARGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH1602A-RGH-JP: Front, backlight on
(click image to see detail view)
CFAH1602A-RGH-JP: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602ARGHJP.
CFAH1602A-RGH-JT: Front, backlight on
(click image to see detail view)
CFAH1602A-RGH-JT: Front view
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- Weight: 36g
- Overall Width: 84mm
- Overall Height: 44mm
- Overall Depth: 13.2mm
Documents:

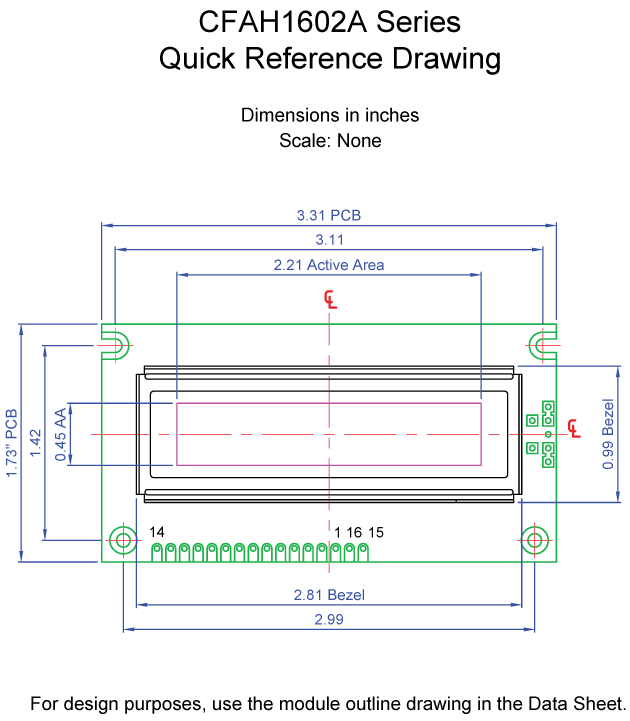

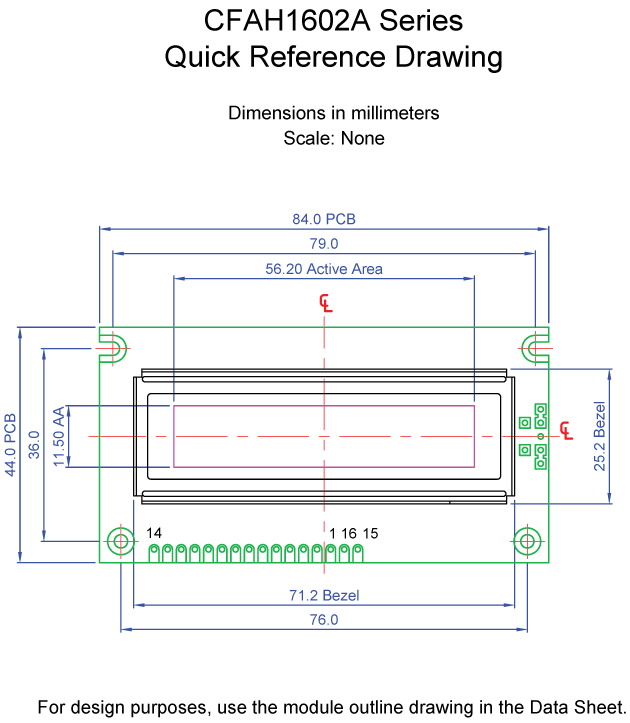

1 to 1 Template (46KB)Metric Scale Drawing (25KB)
Inches Scale Drawing (24KB)
Datasheets
