CFAH1602A Standard and Color LCD

CFAH1602A-YYH-JPE

Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Edge Style Backlight

CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602AYYHJTE, which uses the ST7066U. Compare SPLC780 vs. ST7066U.

CFAH1602A-YYH-JPE: Front, backlight on

CFAH1602A-YYH-JPE: Front view

CFAH1602A-YYH-JT

Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00

This module is replacing the CFAH1602AYYHJP.

CFAH1602A-YYH-JT: Front, backlight on

(click image to see detail view)

CFAH1602A-YYH-JT: Front view

(click image to see detail view)

CFAH1602A-YYH-JTE

Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Edge Style Backlight

This module is replacing the CFAH1602AYYHJPE.

CFAH1602A-YYH-JTE: Front, backlight on

(click image to see detail view)

CFAH1602A-YYH-JTE: Front view

(click image to see detail view)

CFAH1602A-AGH-JP

Parallel Character LCD 16x2, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00

CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602AAGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.

CFAH1602A-AGH-JP: Front, backlight on

CFAH1602A-AGH-JP: Front view

CFAH1602A-AGH-JT

Parallel Character LCD 16x2, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00

This module is replacing the CFAH1602AAGHJP.

CFAH1602A-AGH-JT: Front, backlight on

(click image to see detail view)

CFAH1602A-AGH-JT: Front view

(click image to see detail view)

CFAH1602A-GGH-JP

Parallel Character LCD 16x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00

CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602AGGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.

CFAH1602A-GGH-JP: Front, backlight on

CFAH1602A-GGH-JP: Front view

CFAH1602A-GGH-JT

Parallel Character LCD 16x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00

This module is replacing the CFAH1602AGGHJP.

CFAH1602A-GGH-JT: Front, backlight on

(click image to see detail view)

CFAH1602A-GGH-JT: Front view

(click image to see detail view)

CFAH1602A-RGH-JP

Parallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00

CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602ARGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.

CFAH1602A-RGH-JP: Front, backlight on

(click image to see detail view)

CFAH1602A-RGH-JP: Front view

(click image to see detail view)

CFAH1602A-RGH-JT

Parallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00

This module is replacing the CFAH1602ARGHJP.

CFAH1602A-RGH-JT: Front, backlight on

(click image to see detail view)

CFAH1602A-RGH-JT: Front view

(click image to see detail view)

Back view

(click image to see detail view)

Features:

Available in several variations of backlight and polarizer (minimum order may be required)
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
RoHS Compliant

Dimensions:

Weight: 36g

Documents:

1 to 1 Template (46KB)

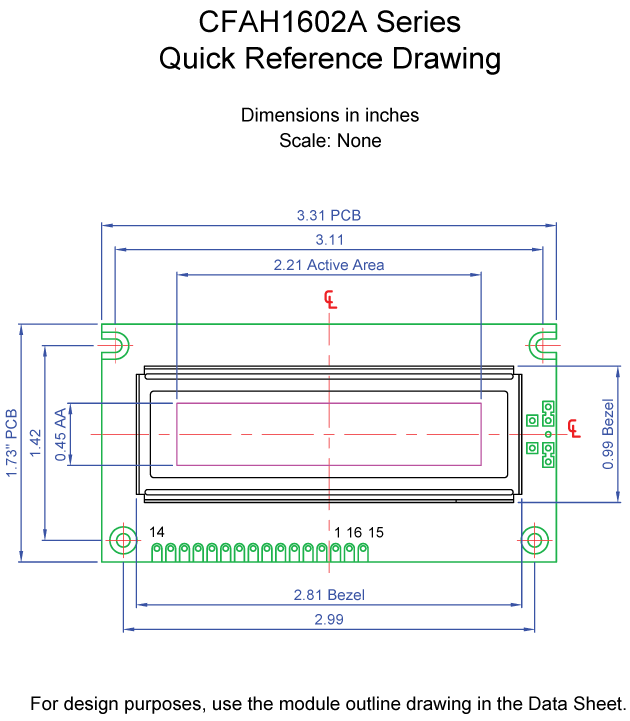

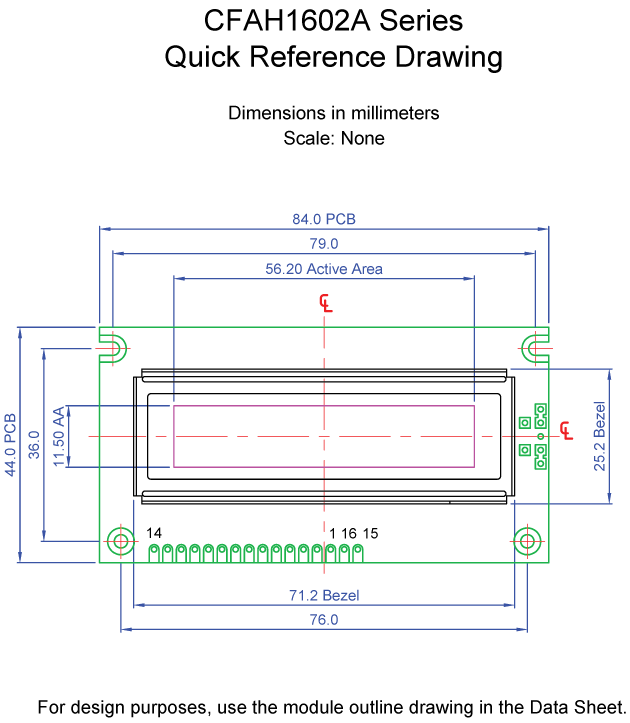

Metric Scale Drawing (25KB)
Inches Scale Drawing (24KB)
Datasheets
