CFAH1602J Standard LCD
Parallel Character LCD 16x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
This module is replacing the CFAH1602JNYGJP.
CFAH1602J-NYG-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602JYYHJP.
CFAH1602J-YYH-JT: Front, backlight on
(click image to see detail view)
CFAH1602J-YYH-JT: Front view
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Form compatible with the CFAG14432E Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602J character display by switching to the graphic CFAG14432E, or, lower your costs by replacing that graphic with this character module
- Alternate connector position from CFAH1602B series
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- PCB Width: 80mm
- PCB Height: 36mm
- Viewing Width: 66mm
- Viewing Height: 16mm
- Active Area Width: 56.2mm
- Active Area Height: 11.5mm
- Character Width: 2.95mm
- Character Height: 5.55mm
- PCB Depth: 9.4mm
- Dot Pitch Width: 0.6mm
- Dot Pitch Height: 0.7mm
- Dot Size Width: 0.55mm
- Dot Size Height: 0.65mm
- Character Pitch Width: 3.55mm
- Character Pitch Height: 5.95mm
- Weight: 25g
- Characters: 16
- Lines: 2
- Overall Width: 80mm
- Overall Height: 36mm
- Overall Depth: 9.4mm
Documents:

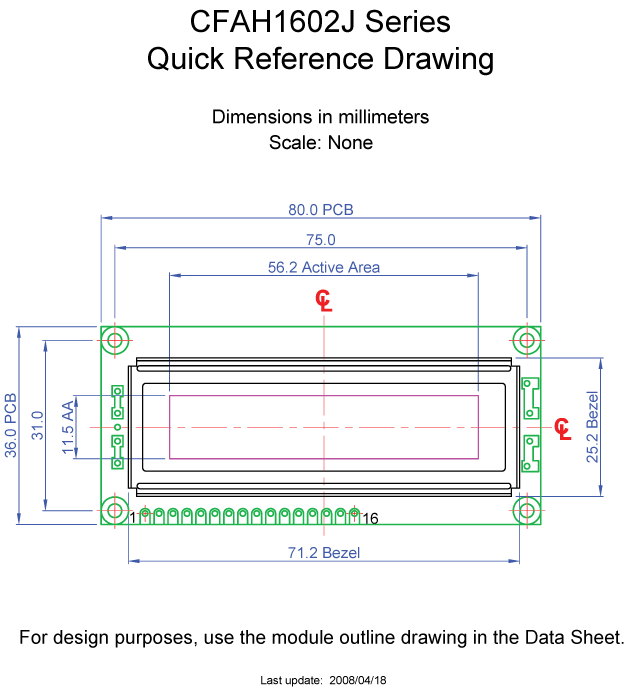

1 to 1 Template (49KB)Scale Drawing, Metric (25KB)

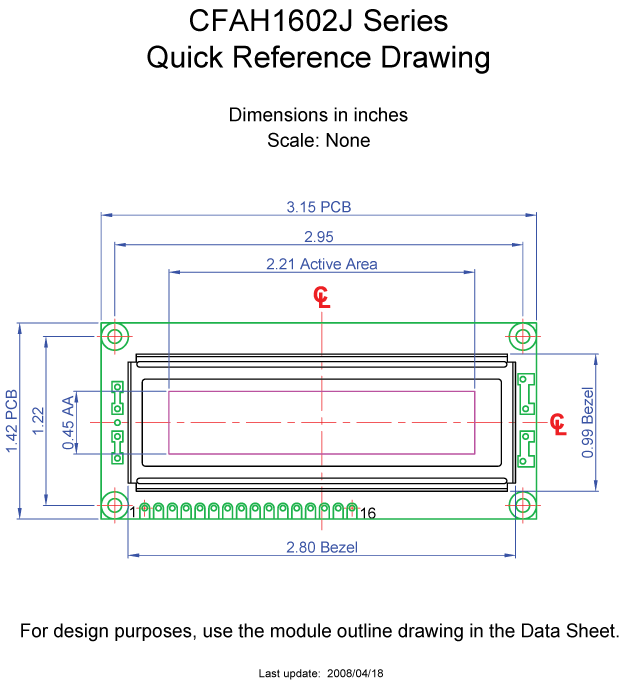

Scale Drawing, Inches (25KB)
Datasheets
