CFAH1602L Standard LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAH1602L-GGH-JP
Parallel Character LCD 16x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602LGGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH1602L-GGH-JP: Front, backlight on
CFAH1602L-GGH-JP
CFAH1602L-GGH-JP: Front view
CFAH1602L-GGH-JP


CFAH1602L-GGH-JT
Parallel Character LCD 16x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602LGGHJP.
CFAH1602L-GGH-JT: Front, backlight on
CFAH1602L-GGH-JT
(click image to see detail view)
CFAH1602L-GGH-JT: Front view
CFAH1602L-GGH-JT
(click image to see detail view)


CFAH1602L-NFH-JP
Parallel Character LCD 16x2, RoHS Compliant, No Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602LNFHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH1602L-NFH-JP: Front view
CFAH1602L-NFH-JP


CFAH1602L-NFH-JT
Parallel Character LCD 16x2, RoHS Compliant, No Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602LNFHJP.
CFAH1602L-NFH-JT: Front view
CFAH1602L-NFH-JT


CFAH1602L-TGH-JT
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602LTGHJP.
CFAH1602L-TGH-JT: Front, backlight on
CFAH1602L-TGH-JT
(click image to see detail view)
CFAH1602L-TGH-JT: Front view
CFAH1602L-TGH-JT
(click image to see detail view)


CFAH1602L-YYH-JP
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602LYYHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH1602L-YYH-JP: Front, backlight on
CFAH1602L-YYH-JP
CFAH1602L-YYH-JP: Front view
CFAH1602L-YYH-JP


CFAH1602L-YYH-JT
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602LYYHJP.
CFAH1602L-YYH-JT: Front, backlight on
CFAH1602L-YYH-JT
(click image to see detail view)
CFAH1602L-YYH-JT: Front view
CFAH1602L-YYH-JT
(click image to see detail view)
Back view
CFAH1602L-YYH-JT
(click image to see detail view)

Features:

  • Available in several variations of backlight and polarizer  (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Large Characters
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

Dimensions:

  • Weight: 66g

Documents:

1 to 1 Template (48KB)

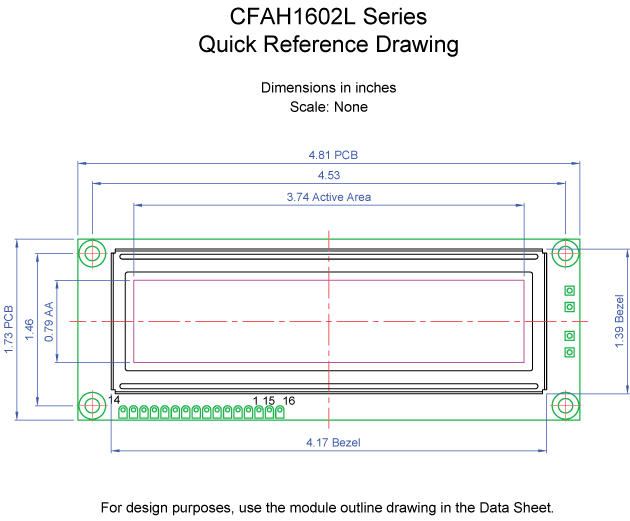

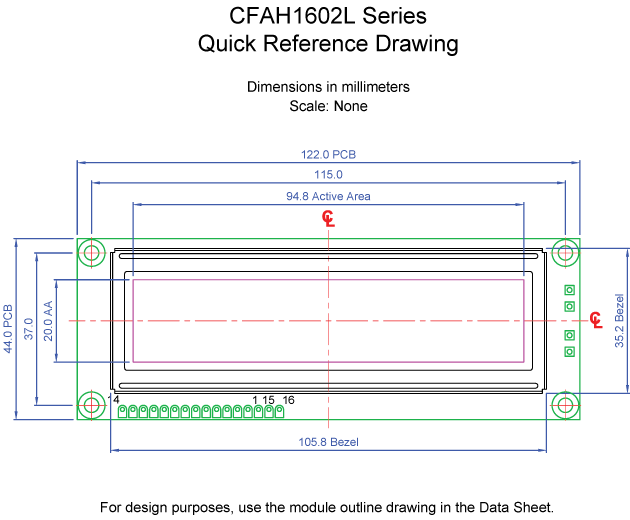

Metric Scale Drawing (20KB)
Inches Scale Drawing (19KB)
Datasheets
