CFAH1602M Standard LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAH1602M-TMI-ET
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CFAH1602M-TMI-ET: Front, backlight on
CFAH1602M-TMI-ET
(click image to see detail view)


CFAH1602M-TTI-ET
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, FSTN Negative, Transmissive -20 - +70 6:00
CFAH1602M-TTI-ET: Front, backlight on
CFAH1602M-TTI-ET
(click image to see detail view)


CFAH1602M-YYH-ET
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CFAH1602M-YYH-ET: Front, backlight on
CFAH1602M-YYH-ET
(click image to see detail view)
CFAH1602M-YYH-ET: Front view
CFAH1602M-YYH-ET
(click image to see detail view)
Back view
CFAH1602M-YYH-ET
(click image to see detail view)

Features:

  • Very wide viewing angles
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

Dimensions:

  • PCB Outline (W x H x D): 85mm x 32.6mm x 13.2mm
  • Viewing Area: 66mm x 16mm
  • Active Area: 57.7mm x 11.5mm
  • Character Size: 2.96mm x 5.56mm
  • Dot Pitch: 0.6mm x 0.7mm
  • Dot Size: 0.56mm x 0.66mm
  • Character Pitch: 3.55mm x 5.95mm
  • Weight: 34g
  • Characters x Lines: 16 x 2

Documents:

1 to 1 Template (51KB)

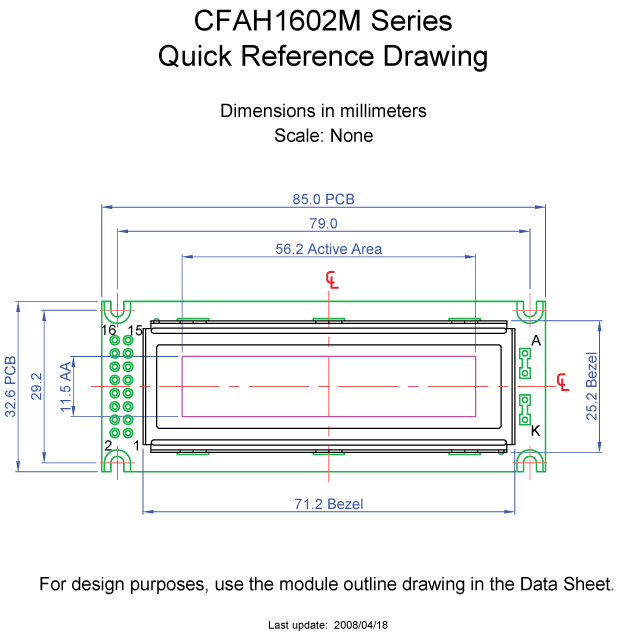

Metric Scale Drawing (23KB)

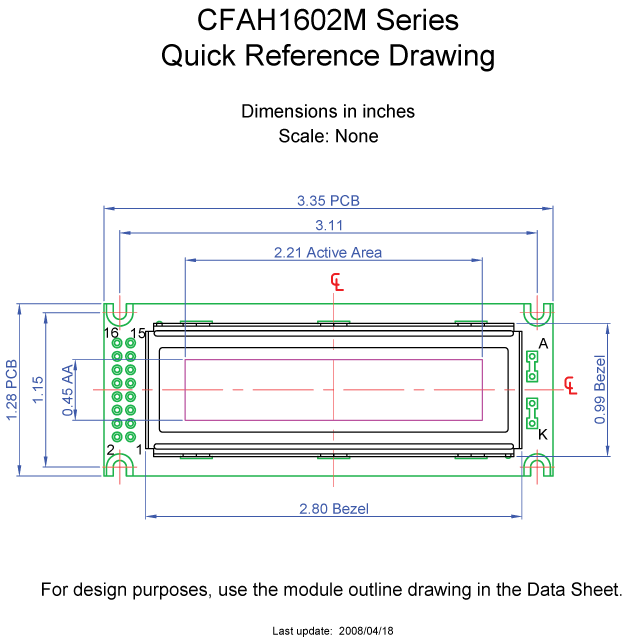

Inches Scale Drawing (24KB)
Datasheets
