CFAH1602O Standard LCD
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00
CFAH1602O-TFH-ET: Front, backlight on
(click image to see detail view)
CFAH1602O-TFH-ET: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CFAH1602O-TMI-ET: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CFAH1602O-YYH-ET: Front, backlight on
(click image to see detail view)
CFAH1602O-YYH-ET: Front view
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- Weight: 32g
- Overall Width: 85mm
- Overall Height: 25.2mm
- Overall Depth: 13.2mm
Documents:

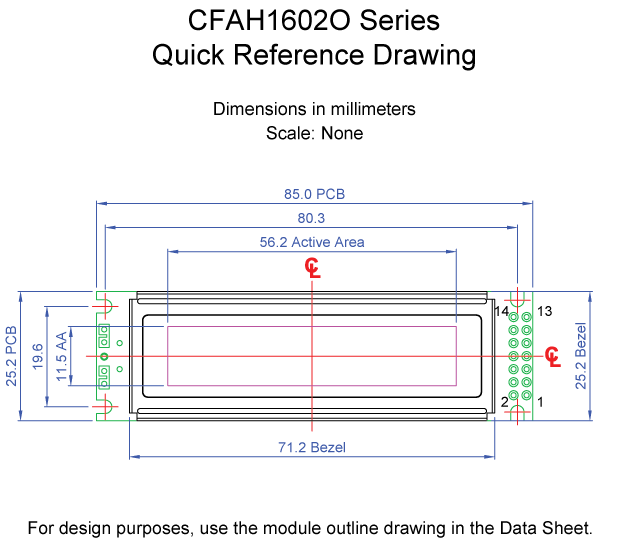

1 to 1 Template (48KB)Metric Scale Drawing (20KB)
Inches Scale Drawing (20KB)
Datasheets
