CFAH1602W Standard LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAH1602W-RTI-JP
Parallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00
CFAH1602W-RTI-JP: Front, backlight on
CFAH1602W-RTI-JP
(click image to see detail view)


CFAH1602W-YTI-JP
Parallel Character LCD 16x2, RoHS Compliant, Yellow-Green LED Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00
CFAH1602W-YTI-JP: Front, backlight on
CFAH1602W-YTI-JP
(click image to see detail view)
Back view
CFAH1602W-YTI-JP
(click image to see detail view)

Features:

  • Available in several variations of backlight and polarizer  (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

Dimensions:

  • PCB Outline (W x H x D): 80mm x 36mm x 14mm
  • Viewing Area: 64.5mm x 15.5mm
  • Active Area: 56.2mm x 11.5mm
  • Character Size: 2.95mm x 5.55mm
  • Dot Pitch: 0.6mm x 0.7mm
  • Dot Size: 0.55mm x 0.65mm
  • Character Pitch: 3.55mm x 5.95mm
  • Weight: 35g
  • Characters x Lines: 16 x 2

Documents:

1 to 1 Template (47KB)

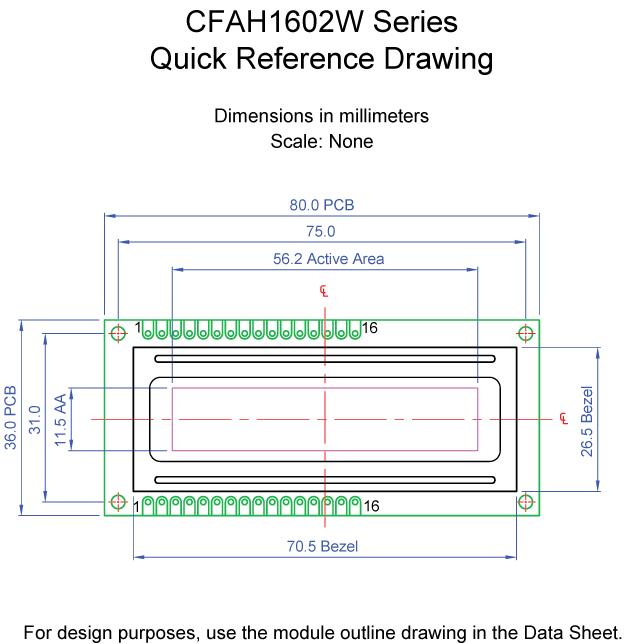

Metric Scale Drawing (23KB)

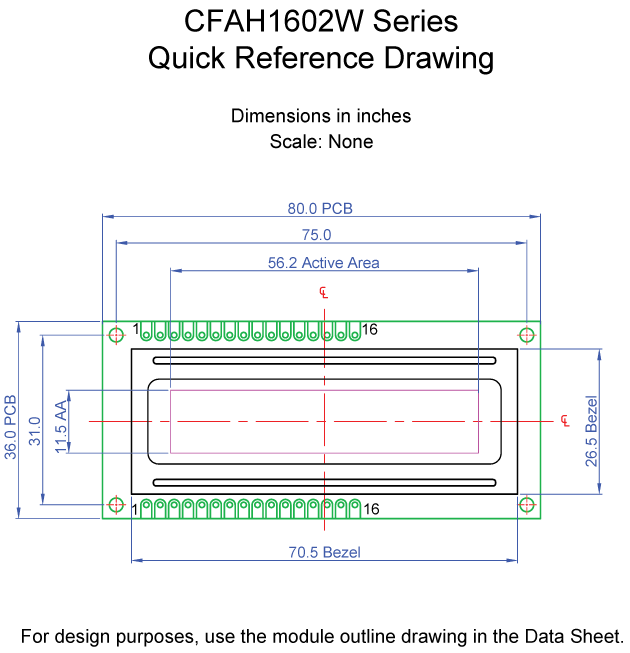

Inches Scale Drawing (23KB)
Datasheets
