CFAH1602Y Standard LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAH1602Y-NYG-ET
Parallel Character LCD 16x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
CFAH1602Y-NYG-ET: Front, backlight on
CFAH1602Y-NYG-ET
(click image to see detail view)


CFAH1602Y-YYH-ET
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CFAH1602Y-YYH-ET: Front, backlight on
CFAH1602Y-YYH-ET
(click image to see detail view)
CFAH1602Y-YYH-ET: Front view
CFAH1602Y-YYH-ET
(click image to see detail view)
Back view
CFAH1602Y-YYH-ET
(click image to see detail view)

Features:

  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

Dimensions:

  • Weight: 13g

Documents:

1 to 1 Template (44KB)

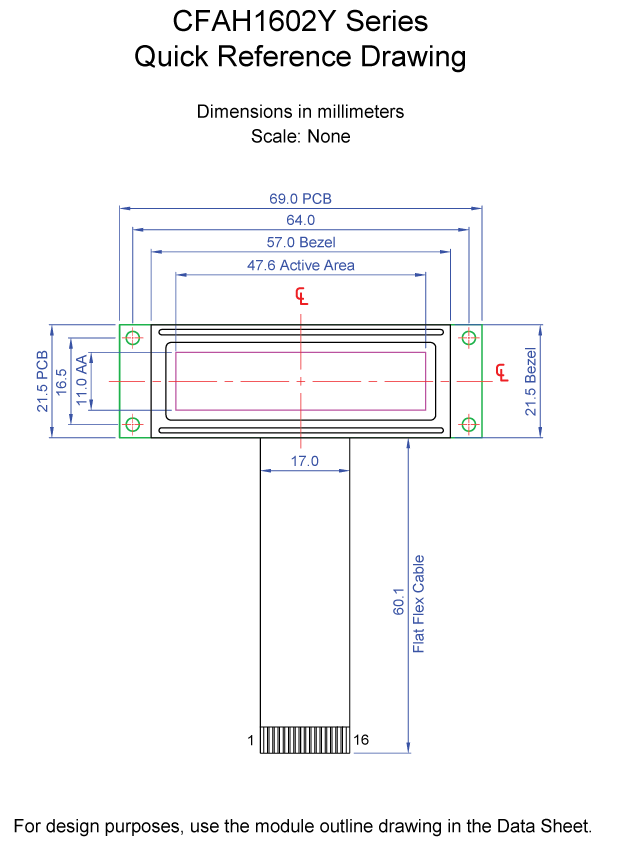

Metric Scale Drawing (23KB)

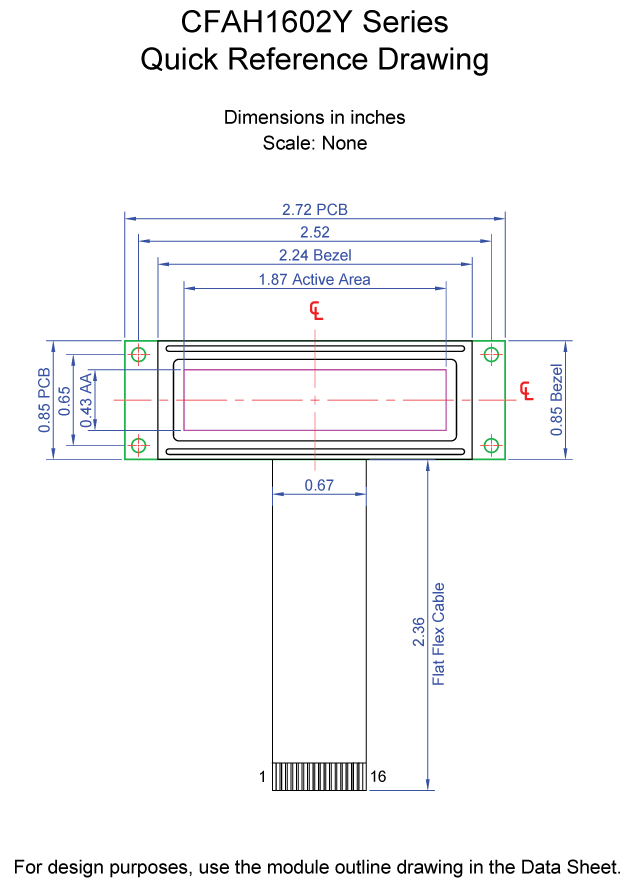

Inches Scale Drawing (23KB)
Datasheets
