CFAH2001B Standard LCD
Parallel Character LCD 20x1, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CFAH2001B-TMI-ET: Front view
(click image to see detail view)
Parallel Character LCD 20x1, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CFAH2001B-YYH-ET: Front, backlight on
(click image to see detail view)
CFAH2001B-YYH-ET: Front view
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- Weight: 105g
- Overall Width: 180mm
- Overall Height: 40mm
- Overall Depth: 13.9mm
Documents:

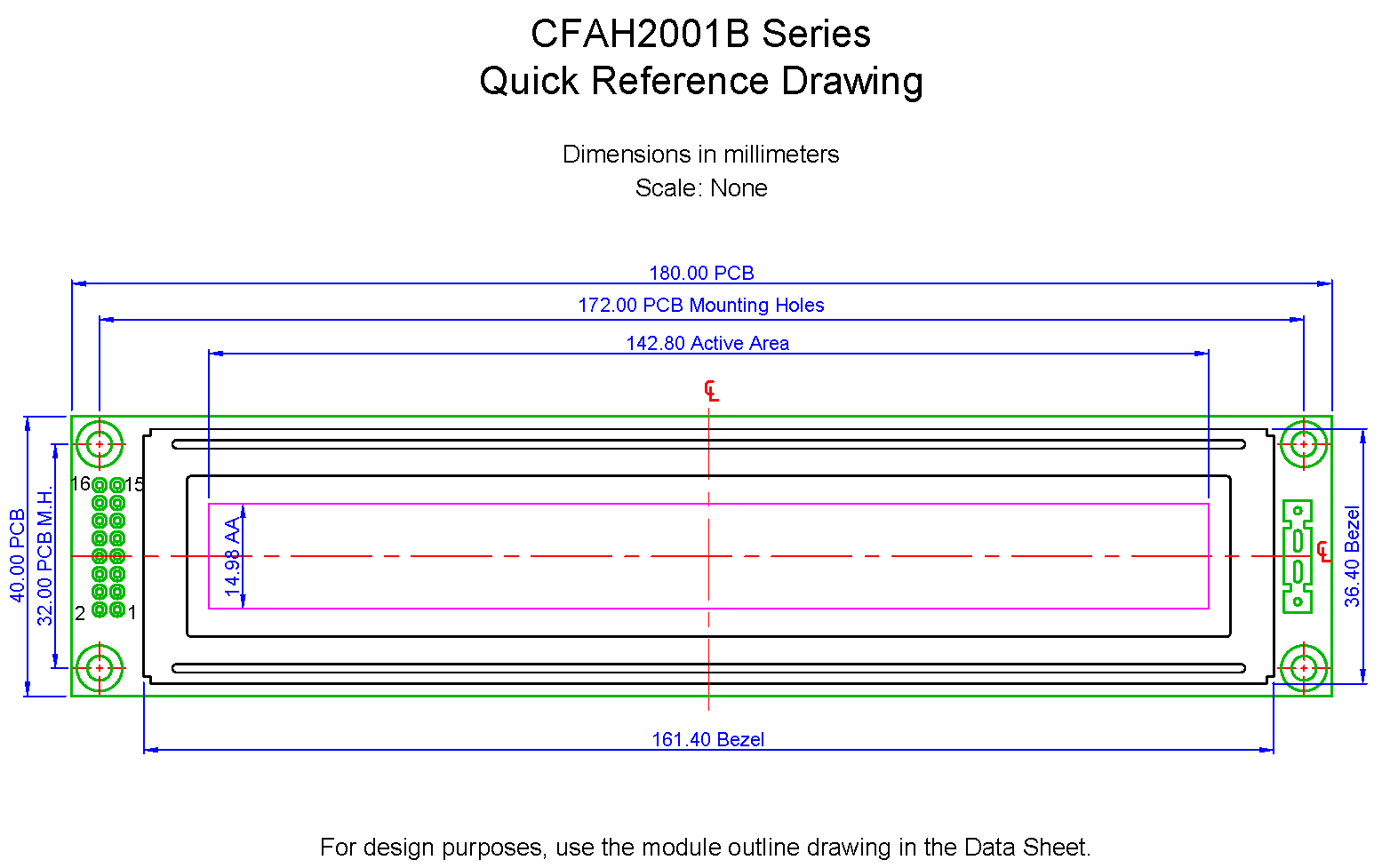

1 to 1 Template (47KB)Metric Scale Drawing (24KB)

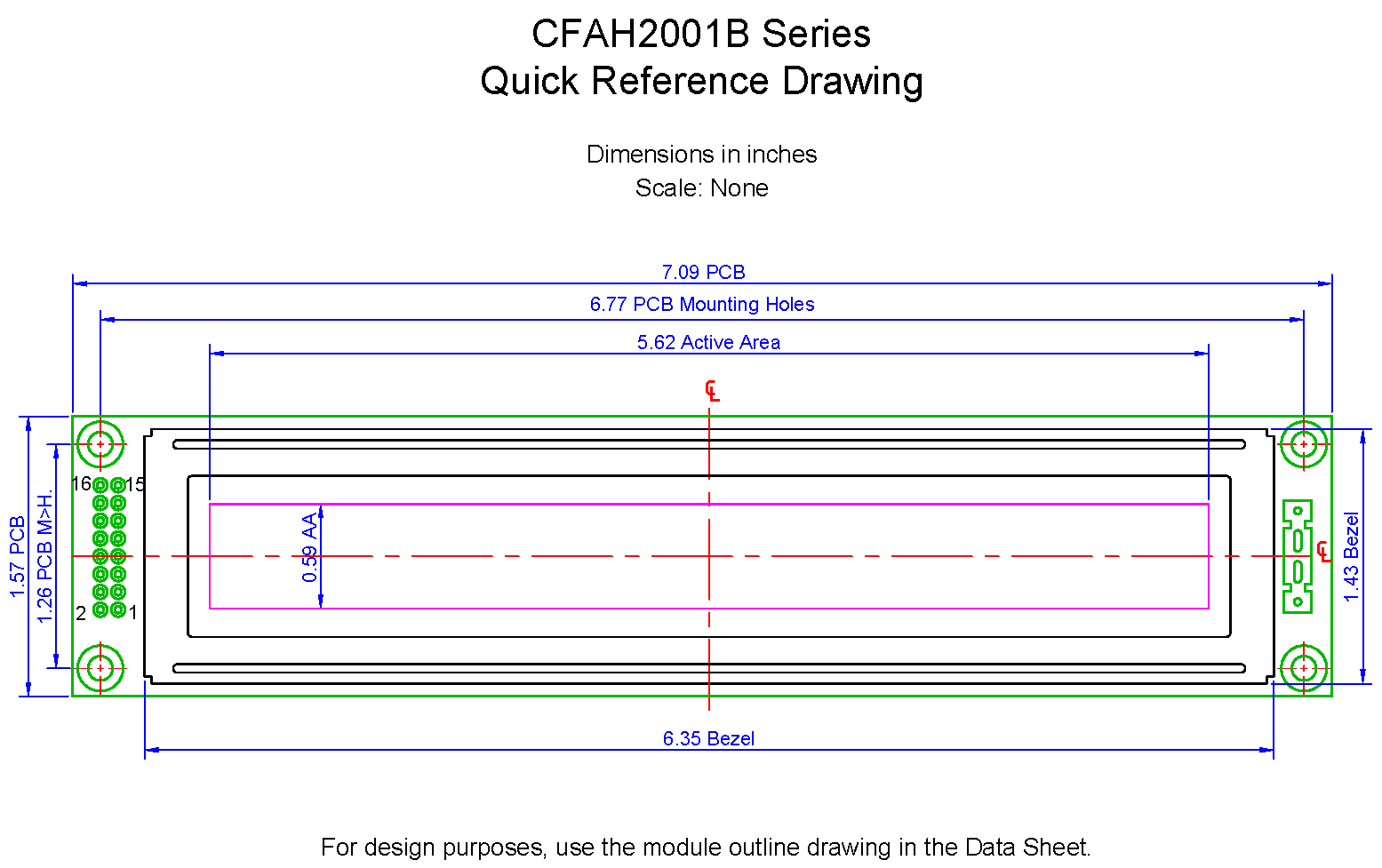

Inches Scale Drawing (24KB)
Datasheets
