CFAH2002L Standard LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAH2002L-TFH-ET
Parallel Character LCD 20x2, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00
CFAH2002L-TFH-ET: Front, backlight on
CFAH2002L-TFH-ET
(click image to see detail view)
CFAH2002L-TFH-ET: Front view
CFAH2002L-TFH-ET
(click image to see detail view)


CFAH2002L-TMI-ET
Parallel Character LCD 20x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CFAH2002L-TMI-ET: Front, backlight on
CFAH2002L-TMI-ET
(click image to see detail view)


CFAH2002L-YYH-ET
Parallel Character LCD 20x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CFAH2002L-YYH-ET: Front, backlight on
CFAH2002L-YYH-ET
(click image to see detail view)
CFAH2002L-YYH-ET: Front view
CFAH2002L-YYH-ET
(click image to see detail view)
Back view
CFAH2002L-YYH-ET
(click image to see detail view)

Features:

  • Available in several variations of backlight and polarizer  (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Large Characters
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

Dimensions:

  • PCB Outline (W x H x D): 180mm x 40mm x 13.9mm
  • Viewing Area: 149mm x 23mm
  • Active Area: 142.8mm x 20.64mm
  • Character Size: 6mm x 9.66mm
  • Dot Pitch: 1.22mm x 1.22mm
  • Dot Size: 1.12mm x 1.12mm
  • Character Pitch: 3.7mm x 5.95mm
  • Weight: 52g
  • Characters x Lines: 20 x 2

Documents:

1 to 1 Template (44KB)

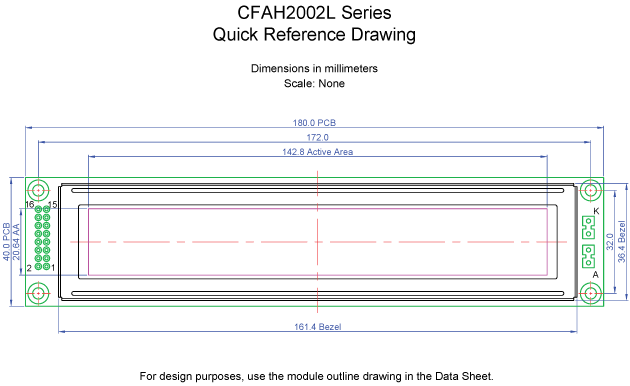

Metric Scale Drawing (14KB)

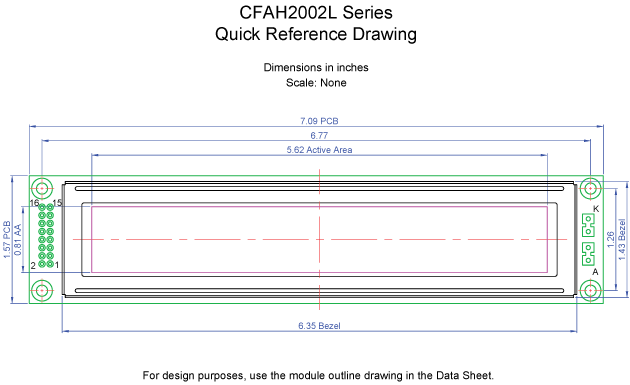

Inches Scale Drawing (13KB)
Datasheets
