CFAH2004A Standard and Color LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAH2004A-NYG-JT
Parallel Character LCD 20x4, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
This module is replacing the CFAH2004ANYGJP.
CFAH2004A-NYG-JT: Front view
CFAH2004A-NYG-JT
(click image to see detail view)
CFAH2004A-NYG-JT: Additional view
CFAH2004A-NYG-JT
(click image to see detail view)


CFAH2004A-YYH-JPE
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Edge Style Backlight
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2004AYYHJTE, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH2004A-YYH-JPE: Front, backlight on
CFAH2004A-YYH-JPE
CFAH2004A-YYH-JPE: Front view
CFAH2004A-YYH-JPE


CFAH2004A-YYH-JT
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH2004AYYHJP.
CFAH2004A-YYH-JT: Front, backlight on
CFAH2004A-YYH-JT
(click image to see detail view)
CFAH2004A-YYH-JT: Front view
CFAH2004A-YYH-JT
(click image to see detail view)


CFAH2004A-YYH-JTE
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Edge Style Backlight
This module is replacing the CFAH2004AYYHJPE.
CFAH2004A-YYH-JTE: Front, backlight on
CFAH2004A-YYH-JTE
(click image to see detail view)
CFAH2004A-YYH-JTE: Front view
CFAH2004A-YYH-JTE
(click image to see detail view)


CFAH2004A-AGH-JP
Parallel Character LCD 20x4, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2004AAGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH2004A-AGH-JP: Front, backlight on
CFAH2004A-AGH-JP
CFAH2004A-AGH-JP: Front view
CFAH2004A-AGH-JP


CFAH2004A-AGH-JT
Parallel Character LCD 20x4, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH2004AAGHJP.
CFAH2004A-AGH-JT: Front, backlight on
CFAH2004A-AGH-JT
(click image to see detail view)
CFAH2004A-AGH-JT: Front view
CFAH2004A-AGH-JT
(click image to see detail view)


CFAH2004A-GGH-JP
Parallel Character LCD 20x4, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2004AGGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH2004A-GGH-JP: Front, backlight on
CFAH2004A-GGH-JP
CFAH2004A-GGH-JP: Front view
CFAH2004A-GGH-JP


CFAH2004A-GGH-JT
Parallel Character LCD 20x4, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH2004AGGHJP.
CFAH2004A-GGH-JT: Front, backlight on
CFAH2004A-GGH-JT
(click image to see detail view)
CFAH2004A-GGH-JT: Front view
CFAH2004A-GGH-JT
(click image to see detail view)


CFAH2004A-RGH-JP
Parallel Character LCD 20x4, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2004ARGHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH2004A-RGH-JP: Front, backlight on
CFAH2004A-RGH-JP
CFAH2004A-RGH-JP: Front view
CFAH2004A-RGH-JP


CFAH2004A-RGH-JT
Parallel Character LCD 20x4, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH2004ARGHJP.
CFAH2004A-RGH-JT: Front, backlight on
CFAH2004A-RGH-JT
(click image to see detail view)
CFAH2004A-RGH-JT: Front view
CFAH2004A-RGH-JT
(click image to see detail view)


CFAH2004A-RMI-JP
Parallel Character LCD 20x4, RoHS Compliant, Red LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2004ARMIJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH2004A-RMI-JP: Front view
CFAH2004A-RMI-JP


CFAH2004A-RMI-JT
Parallel Character LCD 20x4, RoHS Compliant, Red LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH2004ARMIJP.
CFAH2004A-RMI-JT: Front view
CFAH2004A-RMI-JT
(click image to see detail view)


CFAH2004A-TFH-JP
Parallel Character LCD 20x4, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2004ATFHJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH2004A-TFH-JP: Front, backlight on
CFAH2004A-TFH-JP
CFAH2004A-TFH-JP: Front view
CFAH2004A-TFH-JP


CFAH2004A-TFH-JT
Parallel Character LCD 20x4, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH2004ATFHJP.
CFAH2004A-TFH-JT: Front, backlight on
CFAH2004A-TFH-JT
(click image to see detail view)
CFAH2004A-TFH-JT: Front view
CFAH2004A-TFH-JT
(click image to see detail view)


CFAH2004A-TMI-JT
Parallel Character LCD 20x4, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH2004ATMIJP.
CFAH2004A-TMI-JT: Front, backlight on
CFAH2004A-TMI-JT
(click image to see detail view)


CFAH2004A-YMI-JP
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH2004AYMIJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH2004A-YMI-JP: Front view
CFAH2004A-YMI-JP


CFAH2004A-YMI-JT
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH2004AYMIJP.
CFAH2004A-YMI-JT: Front view
CFAH2004A-YMI-JT
(click image to see detail view)


CFAH2004A-YTI-JT
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH2004AYTIJP.
CFAH2004A-YTI-JT: Front view
CFAH2004A-YTI-JT
(click image to see detail view)
Back view
CFAH2004A-YTI-JT
(click image to see detail view)

Features:

  • Available in several variations of backlight and polarizer  (minimum order may be required)
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

Dimensions:

  • PCB Outline (W x H x D): 98mm x 60mm x 13.9mm
  • Viewing Area: 77mm x 25.2mm
  • Active Area: 70.4mm x 20.8mm
  • Character Size: 3.2mm x 5.55mm
  • Dot Pitch: 0.65mm x 0.7mm
  • Dot Size: 0.6mm x 0.65mm
  • Character Pitch: 3.7mm x 5.95mm
  • Weight: 52g
  • Characters x Lines: 20 x 4

Documents:

1 to 1 Template (50KB)

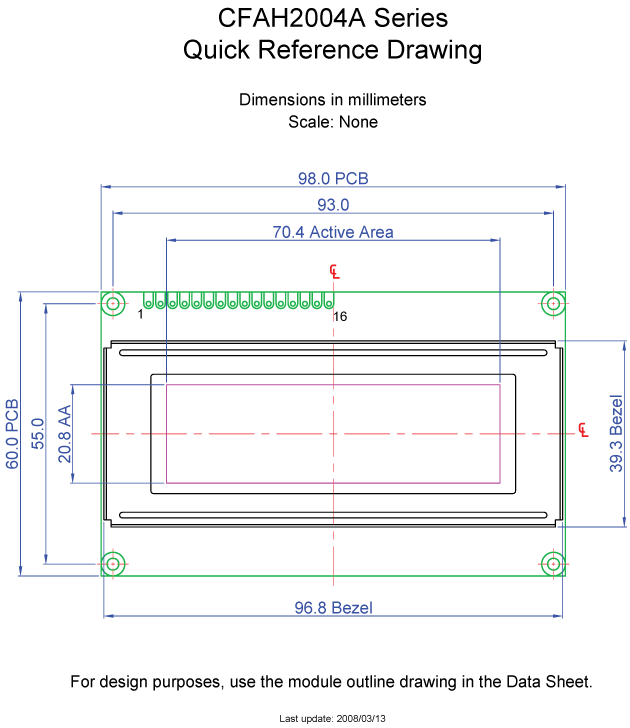

Metric Scale Drawing (24KB)

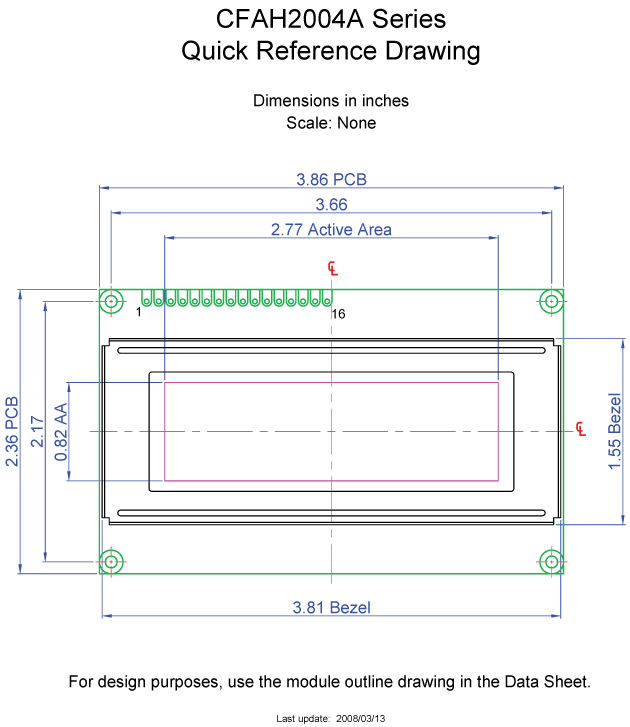

Inches Scale Drawing (23KB)
Datasheets
