CFAG24064A Graphic LCD

240x64 Graphic LCD, RoHS Compliant, White CCFL Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG24064A-FMI-TZ: Front, backlight on

(click image to see detail view)

CFAG24064A-FTI-TZ

240x64 Graphic LCD, RoHS Compliant, White CCFL Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG24064A-FTI-TZ: Front, backlight on

(click image to see detail view)

CFAG24064A-YYH-TZ

240x64 Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG24064A-YYH-TZ: Front, backlight on

(click image to see detail view)

CFAG24064A-YYH-TZ: Front view

(click image to see detail view)

Back view

(click image to see detail view)

Features:

240x64 graphic LCD module
Built-in Toshiba T6963C compatible controller
240x64 graphic mode --or-- 40 x 8 text mode using built-in 5x7 Character Generator ROM
Available in several variations of backlight and polarizer (minimum order may be required)
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
RoHS Compliant

Dimensions:

Row Dots: 64
Column Dots: 240
PCB Width: 180mm
PCB Height: 65mm
Viewing Width: 133mm
Viewing Height: 39mm
Active Area Width: 127.16mm
Active Area Height: 33.88mm
PCB Depth: 14.3mm
Dot Pitch Width: 0.53mm
Dot Pitch Height: 0.53mm
Dot Size Width: 0.49mm
Dot Size Height: 0.49mm
Overall Width: 180mm
Overall Height: 65mm
Overall Depth: 14.3mm

Documents:

1 to 1 Template - CFAG24064A-FMI-FTI_1_TO_1_LF: FMI-TZ, FTI-TZ (39KB)
1 to 1 Template - CFAG24064A-FMI-FTI_1_TO_1_RT: FMI-TZ, FTI-TZ (41KB)
1 to 1 Template - CFAG20464A_YYH_1_TO_1_LF.PDF: YYH-TZ (40KB)
1 to 1 Template - CFAG20464A_YYH_1_TO_1_RT.PDF: YYH-TZ (40KB)

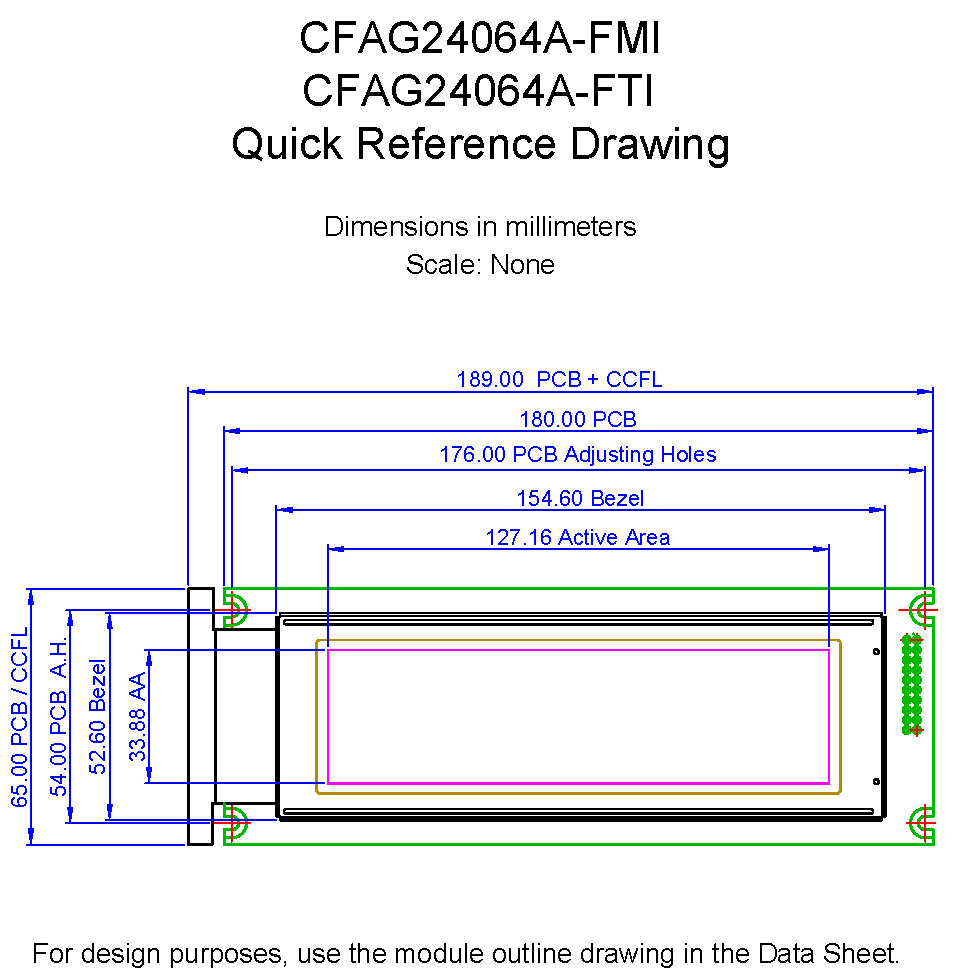

Metric Scale Drawing: FMI-TZ, FTI-TZ (20KB)

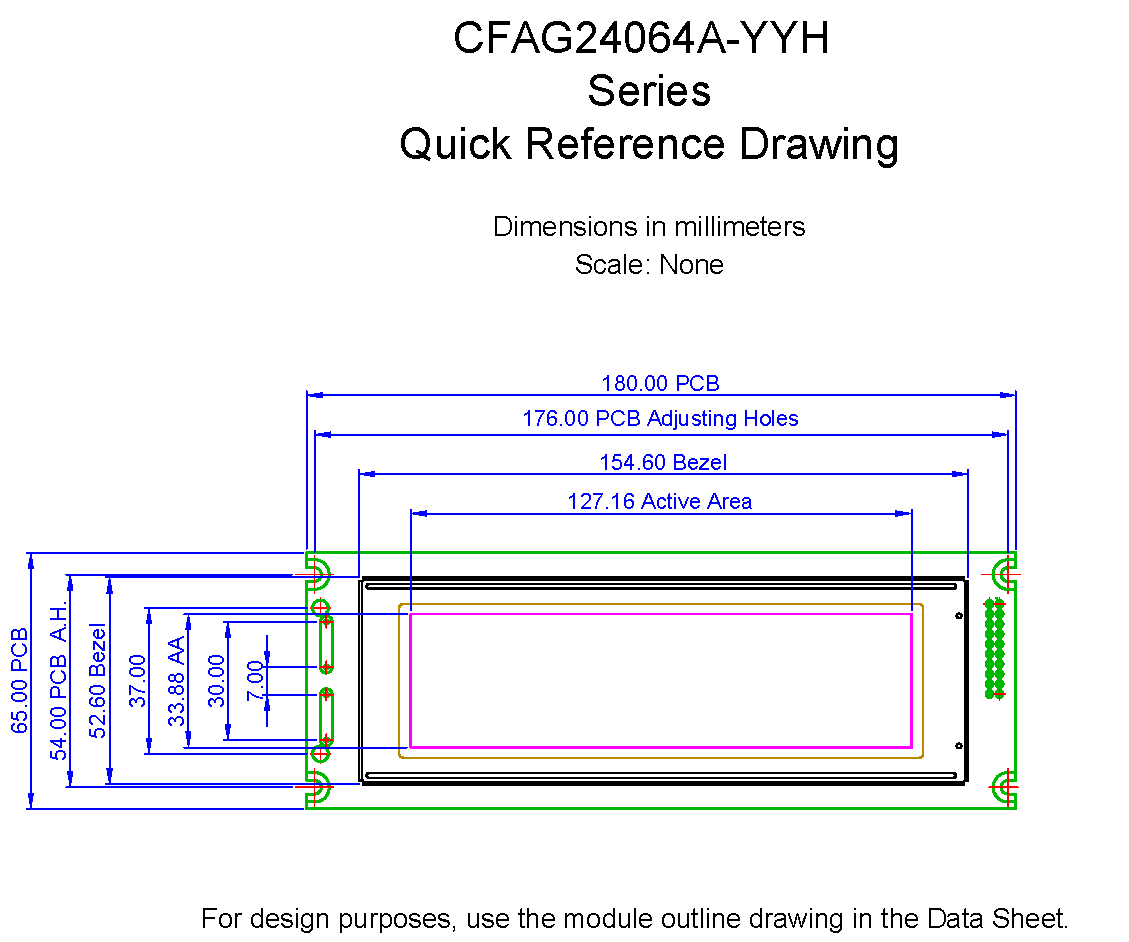

Metric Scale Drawing: YYH-TZ (21KB)

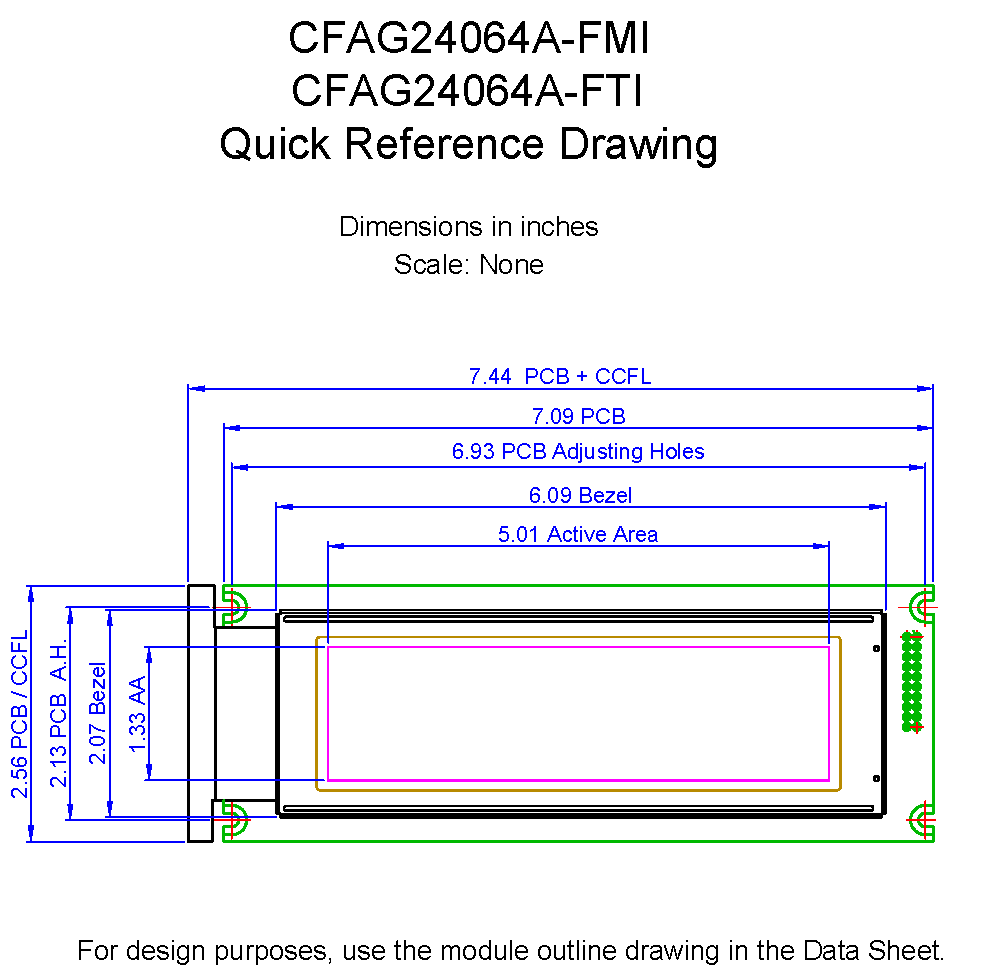

Inches Scale Drawing: FMI-TZ, FTI-TZ (19KB)

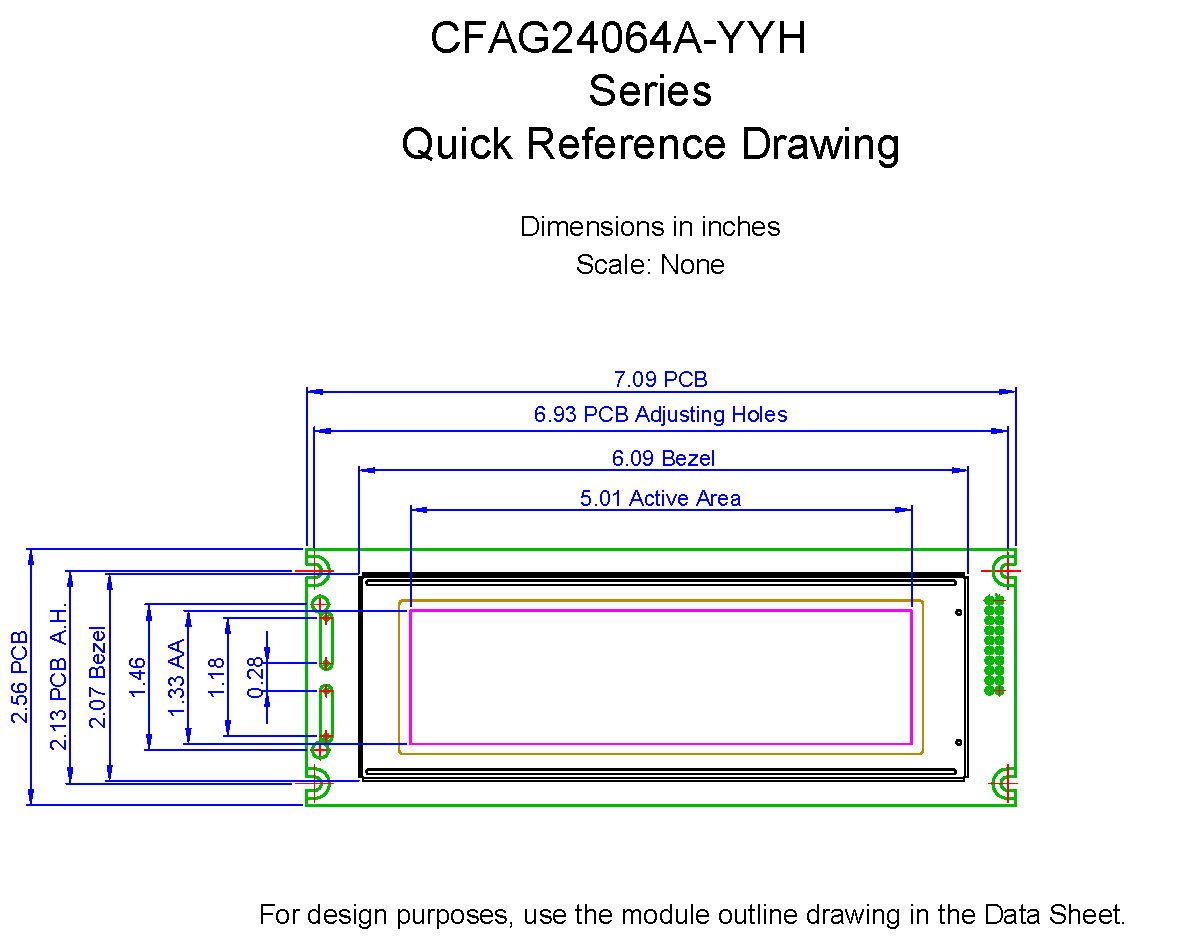

Inches Scale Drawing: YYH-TZ (20KB)
CAD Export - CFAG24064A-FMI-FTI_2D_CAD.ZIP: FMI-TZ, FTI-TZ (174KB)
CAD Export - CFAG24064A-YYH_2D_CAD.ZIP: YYH-TZ (189KB)
