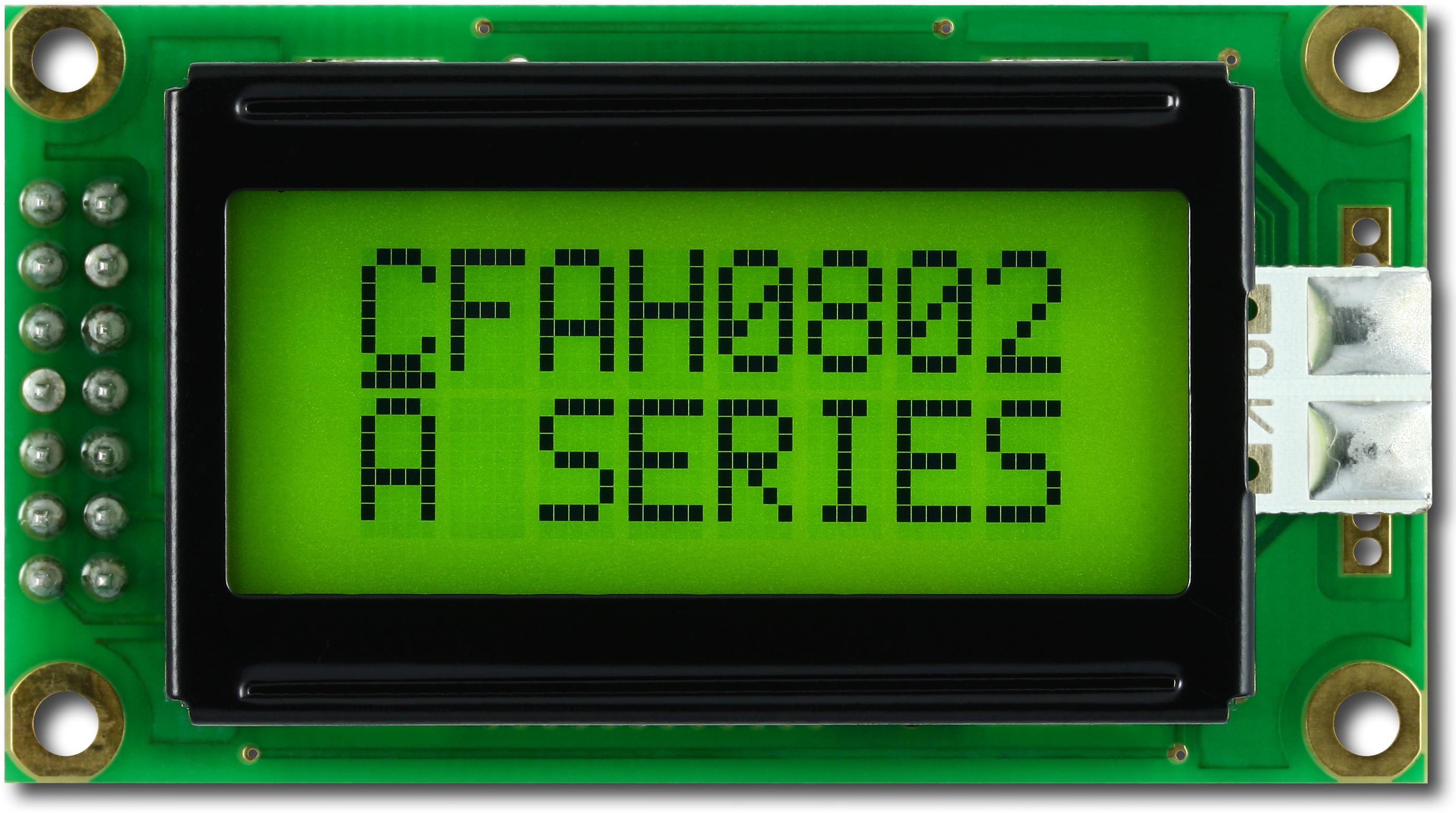

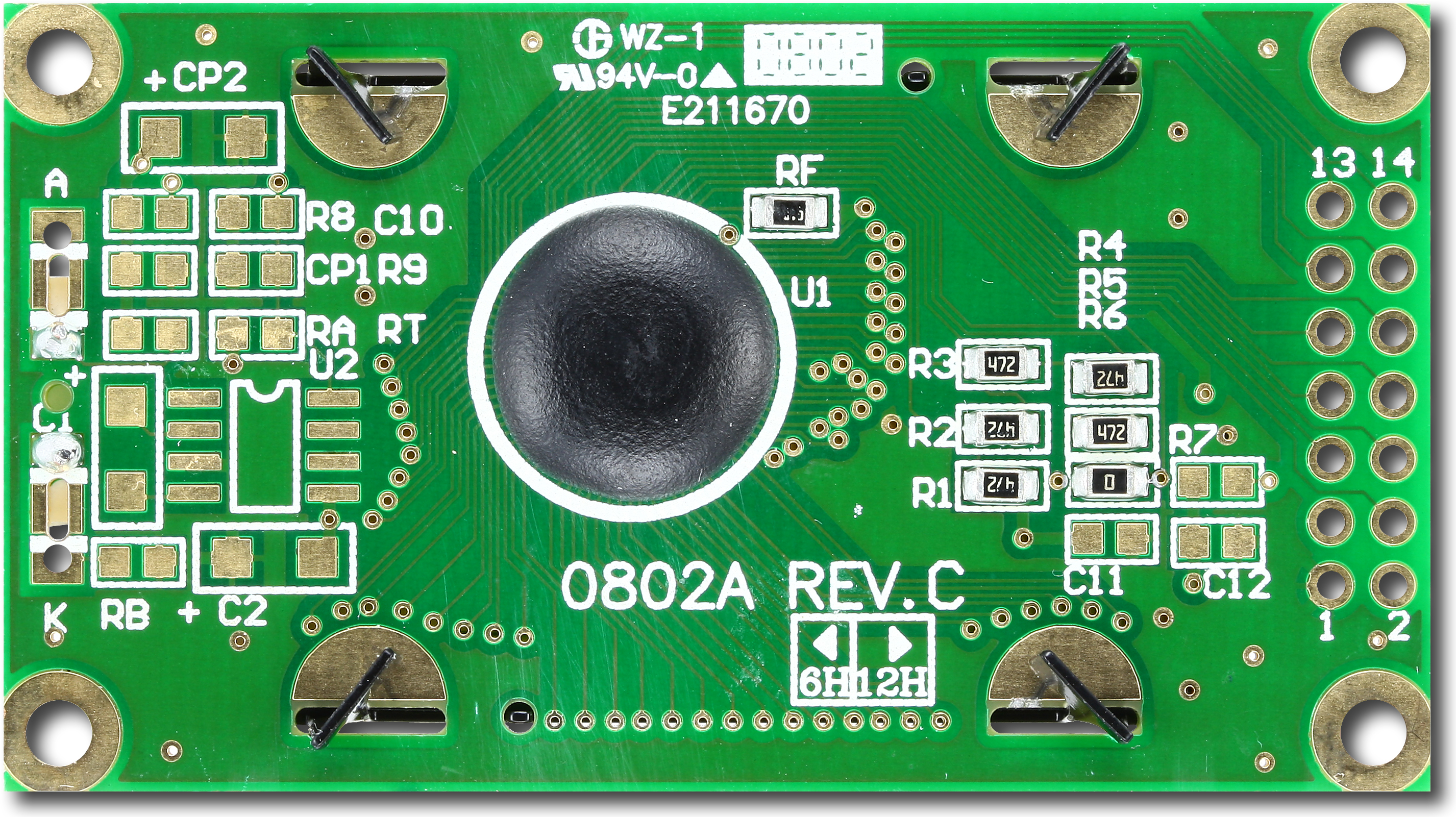

8x2 Character LCD (EOL)

Part Number: CFAH0802A-GGH-JP

Parallel Character LCD 8x2, RoHS Compliant, Green LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00

• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  8 x 2

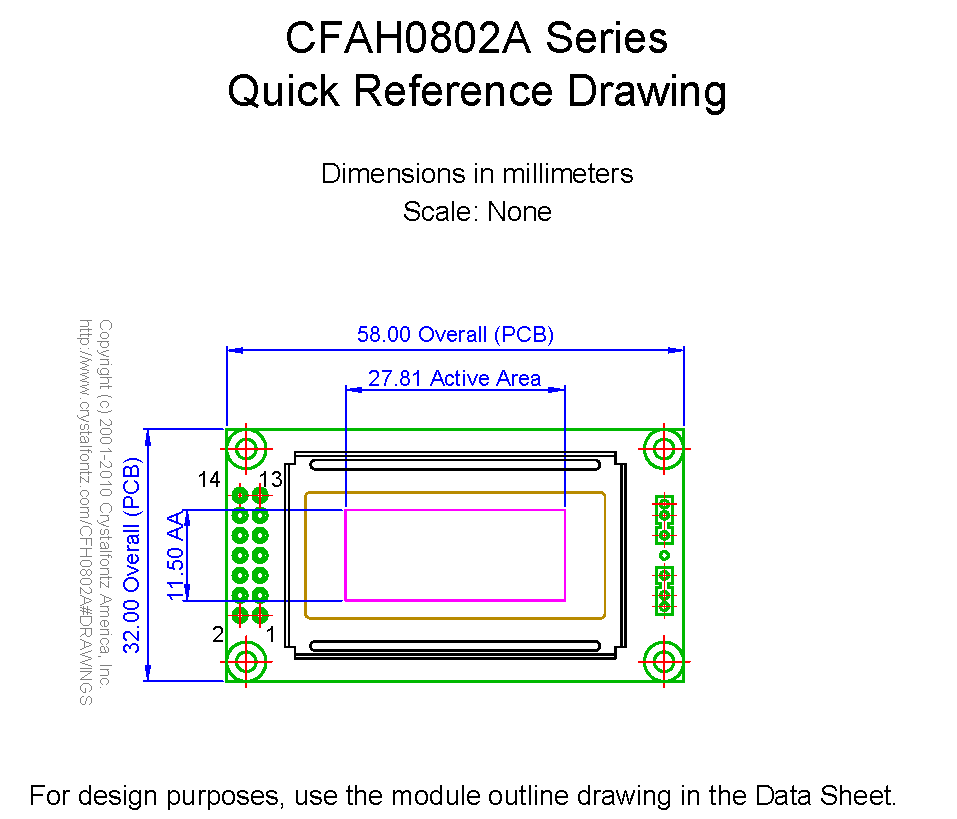

  Module Overall	width	height	depth
  millimeters	58	32	13.5
  inches	2.283	1.260	0.531

  PCB Outline	width	height	depth
  millimeters	58	32	13.5
  inches	2.283	1.260	0.531

  Viewing Area	Width	Height
  millimeters	38	16
  inches	1.496	0.630

  Active Area	Width	Height
  millimeters	27.81	11.5
  inches	1.095	0.453

  Character Size	Width	Height
  millimeters	2.96	5.56
  inches	0.117	0.219

  Character Pitch	Width	Height
  millimeters	3.55	5.94
  inches	0.140	0.234

  Dot Size	Width	Height
  millimeters	0.56	0.66
  inches	0.022	0.026

  Dot Pitch	Width	Height
  millimeters	0.6	0.7
  inches	0.024	0.028

  Weight

  21g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Gray
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	Green

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sunplus SPLC780D 16COM/40SEG Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH0802AGGHJP v2.0.pdf
  (Datasheet V 2.0, Hardware A)


  picture_as_pdf

  CFAH0802AGGHJP v1.0.pdf
  (Datasheet V 1.0, Hardware A)

• download Files and Downloads
  picture_as_pdf 1 to 1 Template - CFAH0802A
