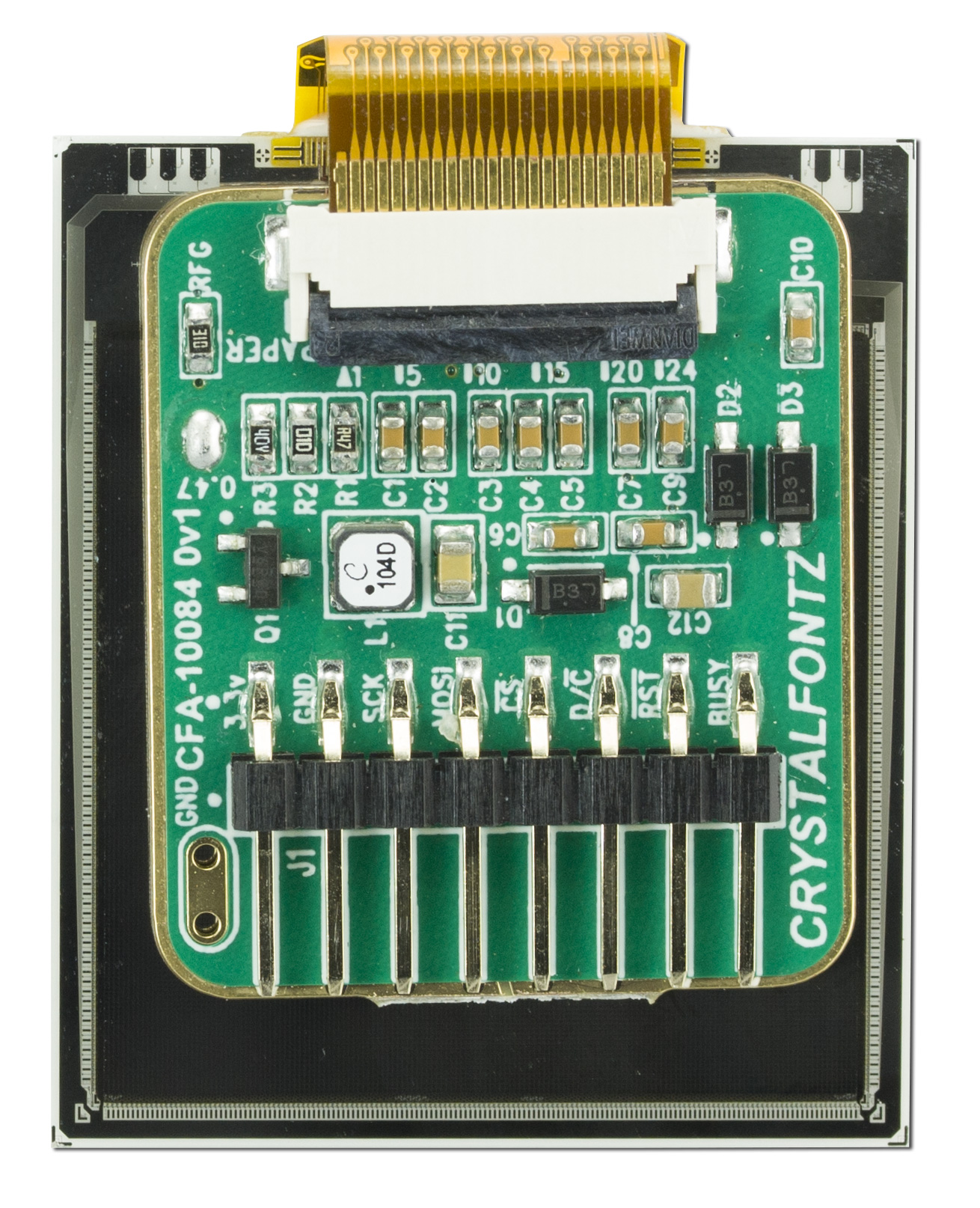

3-Color ePaper Display with Adapter Board

Part Number: CFAP152152B0-E2-1

1.54" Yellow, Black, White ePaper display module with an ePaper adapter board. Save time and enegy when you purchase them together as kit.

This 3-color ePaper kit is ready to power up as soon as you get it, using your 3.3v micro-processor. We use the Seeeduino since it's comes with a 3.3 to 5v switch.

Physical Characteristics
Physical Characteristics

Diagonal Dimension 1.53"

Weight 4.8g
Electrical Specification
Electrical Specifications

Module Connector Pitch 2.54mm
Files and Downloads

picture_as_pdf Hardware Design - CFA10084 Schematic

3-Color ePaper Display with Adapter Board (CFAP152152B0-E2-1)

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11091: No Longer Stocking Color ePapers

Products Affected:	CFAP400300C0-0420, CFAP104212E0-0213, CFAP128296E0-0290, CFAP128296E0-E2-1, CFAP128296E0-E2-2, CFAP152152B0-0154, CFAP152152B0-E2-1, CFAP152152B0-E2-2, CFAP104212E0-E2-2, CFAP104212E0-E2-1, CFAP400300C0-E2-2, CFAP400300C0-E2-1
Date Issued:	June 25, 2021
Summary:	No Longer Stocking Color ePapers
Description:	Once the current inventory has been depleted, this product will no longer be offered by Crystalfontz.
Reason:	Crystalfontz is no longer stocking color ePapers due to the shelf-life and storage requirements.
