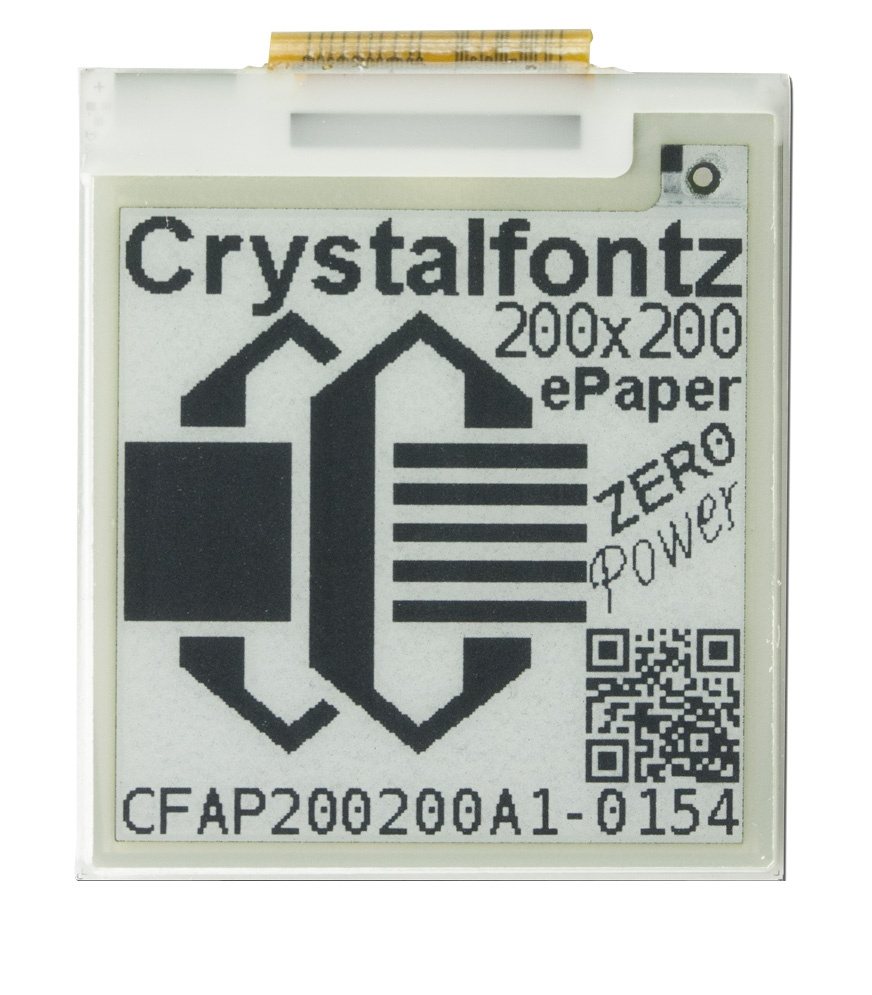

200x200 ePaper with Adapter Board

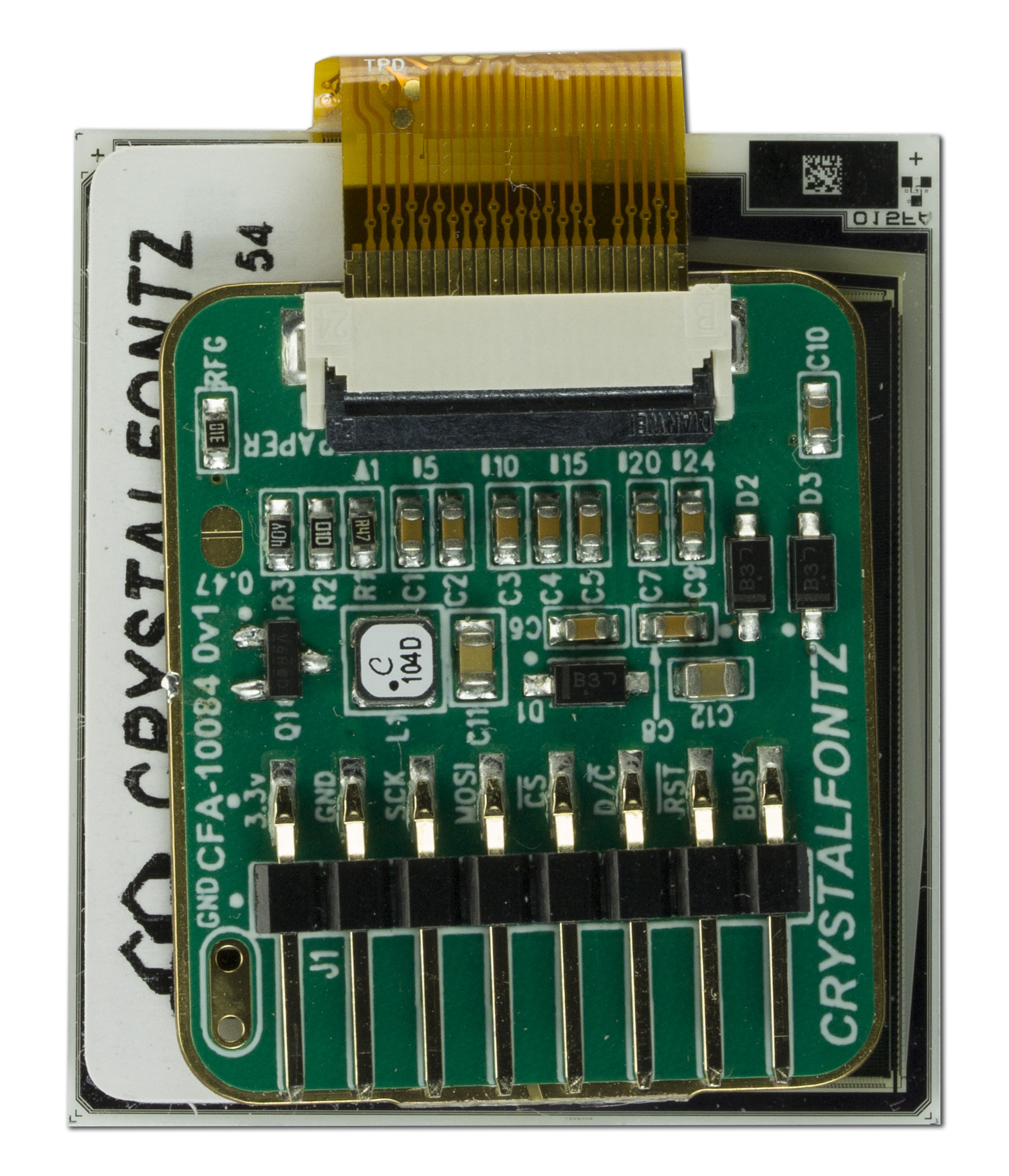

200x200 black and white ePaper display with our ePaper Adapter Board for a quick bring-up with a 3.3v Arduino or Seeeduino. Demo sketches are available in the Files Section.

Cables are NOT included.

Physical Characteristics
Physical Characteristics

Diagonal Dimension 1.54"

Weight 4.6g
Electrical Specification
Electrical Specifications

Module Connector Pitch 2.54mm
Files and Downloads

picture_as_pdf Hardware Design - CFA10084 Schematic

Products Affected:	CFAP176264A0-E2-1, CFAP200200A1-E2-2, CFAP200200A1-E2-1, CFAP176264A0-E2-2
Date Issued:	August 7, 2018
Summary:	ePaper adapter board now comes attached to displays in kits.
Description:	Product Development Kits containing the ePaper adapter board have been changed. Previously these kits were shipped with just the tail of the display connected to the adapter board by the ZIF connector. The kits will now be shipped with the displays also connected to the adapter board with double backed tape.
Reason:	To prevent damage to the tail during shipping and general handling.
Recommendation:	The display can be shipped without being attached to the adapter board. This must be requested as "special instructions" when the kit is ordered
Price Change:	N/A
