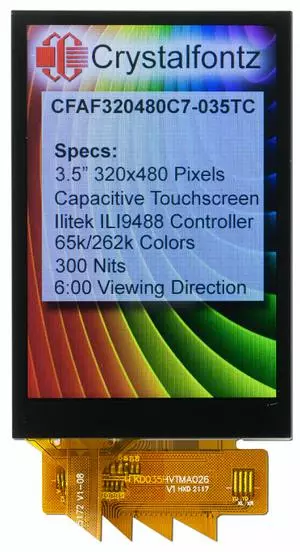

320x480 Capacitive Touchscreen TFT LCD Display
Part Number: CFAF320480C7-035TC
Customers in many different industries have chosen displays from this family of full-color graphic TFT display modules for their stunning 320x480 pixel 3.5-inch diagonal active area. This display module includes a capacitive touchscreen. The family further includes a resistive touchscreen and non-touchscreen option.The combination of high pixel density and only 3.3v for all power makes this display a perfect choice for hand-held, portable, or desktop instruments.
Highlights:
- Only requires a 3.3v source for power, logic, and backlight
- Integrated ILI9488 or compatible display controller
- Capacitive touch screen with integrated FT5436 controller
- Host interface modes are:
- White LED backlight has anode (A,+) and cathode (K, -) pins brought out on the FPC
- The display's 50-pin FPC mates with standard 0.5mm ZIF sockets such as this 50 Position, 0.50mm Pitch ZIF Connector
- The touchscreen's 8-pin FPC with standard 0.5mm ZIF sockets such as this 8 Position, 0.5mm Pitch ZIF Connector
CFA - Crystalfontz America
F - TFT
320480 - 320x480 Pixels
C7 - Family Identifier
035 - 3.5" Diagonal
T - Standard Brightness
C - Capacitive Touchscreen
Quantity | Unit Price |
---|---|
1 | $40.35 |
10 * | $39.19 |
20 * | $38.04 |
50 * | $34.73 |
100 * | $32.38 |
200 * | $32.18 |
300 * | $29.89 |
500 * | $28.41 |
1000 * | $26.56 |
6 Units In-Stock & Ready To Ship
Pricing is subject to change.* Contact us about potential lead times.
Other components worth considering
Part Change Notices
Subscribe to Part Change Notices by email
or RSS
- text_snippet
Part Change Notice #11218: 320x480 Capacitive Touchscreen TFT LCD Display is now available.
New Product: CFAF320480C7-035TC Date Issued: July 17, 2023 Summary: 320x480 Capacitive Touchscreen TFT LCD Display is now available.
Description: CFAF320480C7-035TC has been released on our website (https://www.crystalfontz.com/product/cfaf320480c7035tc-320x480-capacitive-touchscreen-tft-lcd-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
