240x320 Graphic LCD

Part Number: CFAG320240C-FMI-T

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG320240C-FMI-T or RSS RSS feed for changes to CFAG320240C-FMI-T for CFAG320240C-FMI-T

Compliance Documents

240x320 Graphic LCD (CFAG320240C-FMI-T)
Here is a screen shot of a dithered monochrome image. This is another monochrome dithered image. In this image, each pixel is either on (100%) or off (0%). Here is the same image, but it is shown using the limited grey scale feature of the S1D13305 (SED1330). This mode allows a pixel to be 100%, 50% or 0%. The mode is composed of two full-sized graphic planes. The 100 percent pixels are set on one plane, and the 50% pixels are set on the second plane. The second plane is modulated by the controller at 17Hz with a 50% duty cycle. This makes a one-level gray scale, but does introduce some flickering of the 50% pixels. A plane can be set to show text. This picture shows the 5x7 font that is built in to the S1D13305 (SED1330) controller. You can also define your own font in the controllers ram and have it displayed on a plane. Text can also be rendered by the host on the graphic planes. Here is the same text plane, but the graphics plane has been inverted. Since the text and graphics planes in this example are set to XOR mode, the text becomes inverted. Here is a view of the back of the FMI-T. The white cable is the CCFL connection.

Description

  • Built-in Epson S1D13305 (SED1335) controller
  • Multiple text and graphic layers
  • Available in several variations of backlight and polarizer
  • Wide temperature operation (-20°C to +70°C)
  • Wide viewing angles

TECHNICAL SPECS

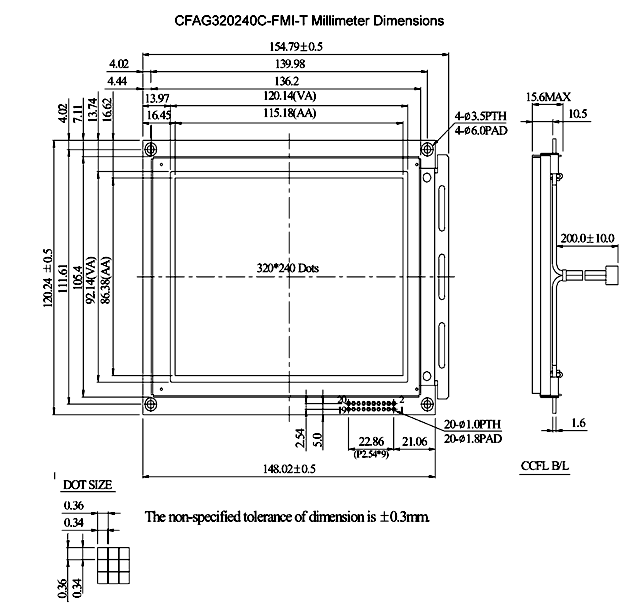

Physical Characteristics

Column Dots x Row Dots 240 x 320

Optical Characteristics

Foreground Color White
Background Color Blue
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

While we do not offer any direct replacements for this product, perhaps one of our CFAG320240CX displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
