This product is discontinued and has been replaced by CFAH2004B-TMI-ET

Character LCD

Part Number: CFAH2004B-TMC-ET

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH2004B-TMC-ET or RSS RSS feed for changes to CFAH2004B-TMC-ET for CFAH2004B-TMC-ET


Parallel Character LCD 20x4, RoHS Compliant, White LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

  • Available in several variations of backlight and polarizer (minimum order may be required)
  • FFC Connector which mates with standard 1mm pitch ZIF sockets
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller


Optical Characteristics

Foreground Color White
Background Color Blue

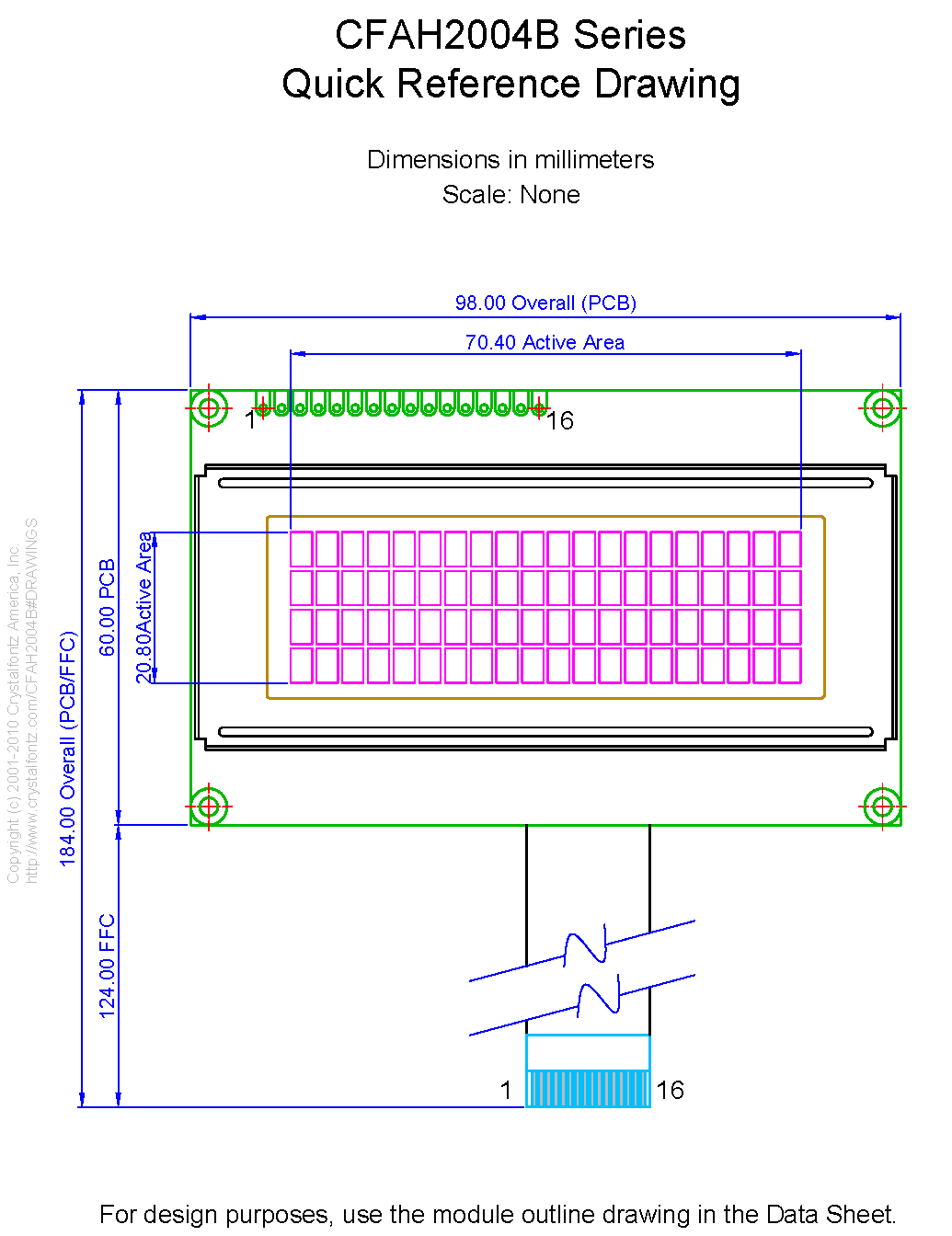

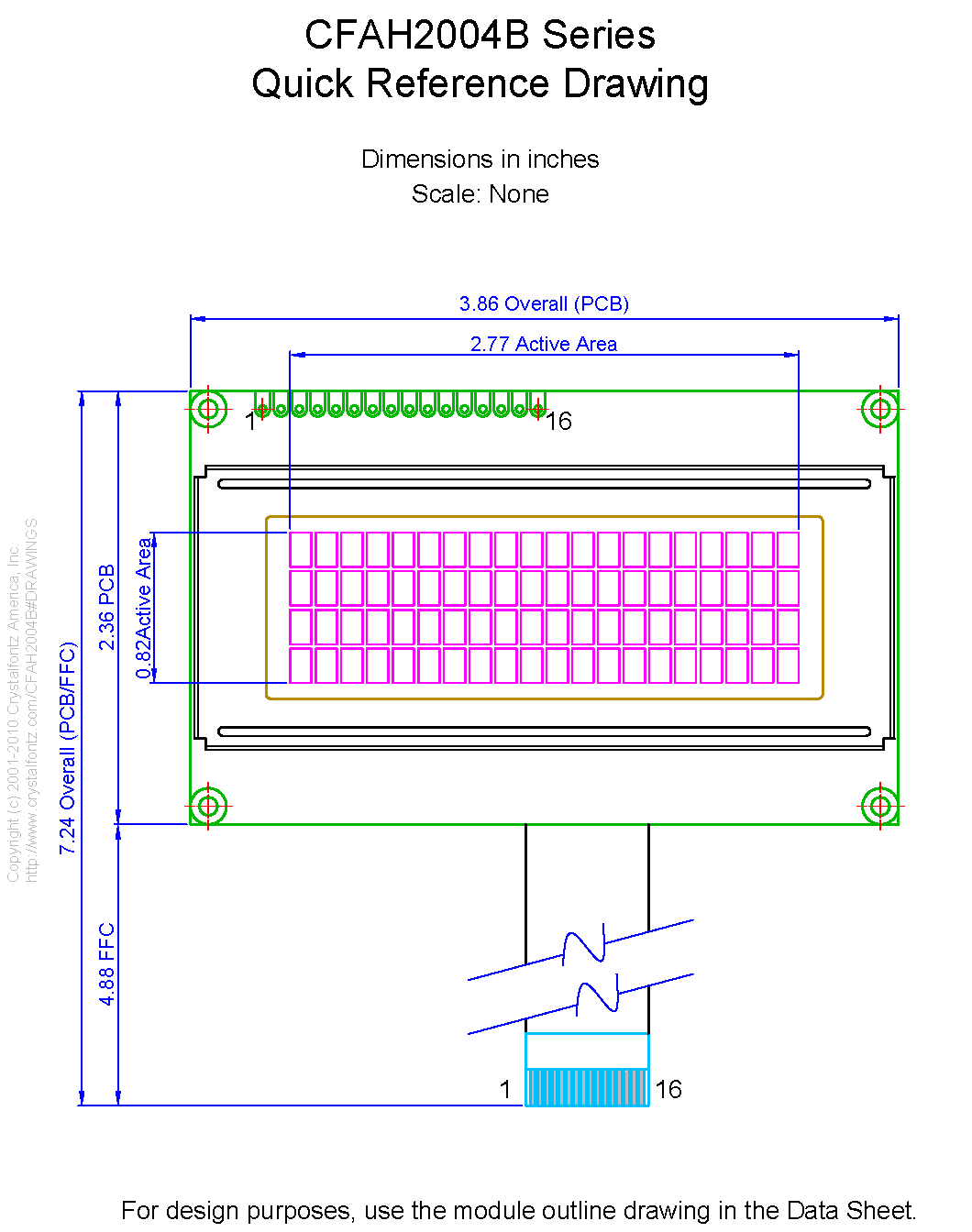

For reference only. For design purposes, please use the specifications in the datasheet.
