front view

CFA631-TMF-KU2

CFA-631 USB LCD 20x2 +Keypad, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive 0°C - +50°C 12:00

To add items to your shopping cart, enter quantities below and click the "Review Cart" button.
Intelligent USB LCD Modules
CFA631-TMF-KU2
CFA631TMFKU2 WRUSBY11
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • CFA-631 USB LCD 20x2 +Keypad
  • RoHS Compliant
  • White Edge LED Backlight
  • STN Negative, Blue
  • Transmissive 0°C - +50°C 12:00
  • Includes:
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $62.60 $58.50 $54.50 $50.40 $46.30 $42.30 $38.20 $34.10
* These quantities may be subject to 30 to 90 days lead time.
System Cooling Accessory Board
SCAB
SCAB
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • System Cooling Accessory Board
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $10.34 $10.23 $10.17 $10.11 $10.06 $10.00 $9.06 $8.92
* These quantities may be subject to 30 to 90 days lead time.
UBERSCAB
UBERSCAB WRDOWY17WREXTY15WREXTY19WRFANX01WRPWRY12
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $34.00 $33.63 $33.44 $33.26 $33.07 $32.89 $31.82 $31.55
* These quantities may be subject to 30 to 90 days lead time.
Cables
WR-DOW-Y17
WRDOWY17
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • DS18B20 based temperature sensor for the CFA533, CFA633 (and CFA631, CFA635 through a SCAB).
Qty 1+ 4+ 500+*
Price $9.00 $5.00 $4.00
* These quantities may be subject to 30 to 90 days lead time.
WR-EXT-Y15
WREXTY15
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.00
* These quantities may be subject to 30 to 90 days lead time.
WR-EXT-Y19
WREXTY19
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.00
* These quantities may be subject to 30 to 90 days lead time.
WR-PWR-Y12
WRPWRY12
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • 4 pin hard drive to floppy connector and hard drive splitter cable.
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.50
* These quantities may be subject to 30 to 90 days lead time.
WR-PWR-Y14
WRPWRY14
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • CFA633 to ATX power supply and control cable.
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.50
* These quantities may be subject to 30 to 90 days lead time.
WR-PWR-Y24
WRPWRY24
Quantity in Cart
Price Each
N/A
Item Total
N/A
JP2 will need to be opened on the module when used with this cable to avoid back-powering the USB bus.
  • 26" PC power supply to 16 pin connector cable.
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.50
* These quantities may be subject to 30 to 90 days lead time.
WR-PWR-Y25
WRPWRY25
Quantity in Cart
Price Each
N/A
Item Total
N/A
JP2 will need to be opened on the module when used with this cable to avoid back-powering the USB bus.
  • 11" ATX power switch cable for CFA631 and CFA635 LCD modules.
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.50
* These quantities may be subject to 30 to 90 days lead time.
WR-USB-Y03
WRUSBY03
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • USB A(male) to 2mm connector cable
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.00
* These quantities may be subject to 30 to 90 days lead time.
WR-USB-Y11
WRUSBY11
Quantity in Cart
Price Each
N/A
Item Total
N/A
  • 4 single pin connectors to 2mm connector cable, approximately 27" length.
Qty 1+ 25+ 50+*
Price $5.00 $4.00 $3.50
* These quantities may be subject to 30 to 90 days lead time.
Drive Bay Kits
DB631-AKTMF-KU2
CFA631TMFKU2WRUSBY11DB631AK
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $81.70 $76.50 $71.20 $66.00 $60.80 $55.50 $49.40 $44.20
* These quantities may be subject to 30 to 90 days lead time.
DB631-AKTMF-KU3
CFA631TMFKU3WRUSBY03WRUSBY11UBERSCABWRDOWY17WREXTY15WREXTY19WRFANX01WRPWRY12DB631AK
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $115.70 $110.50 $105.20 $100.00 $94.80 $89.50 $83.40 $78.20
* These quantities may be subject to 30 to 90 days lead time.
DB631-ALTMF-KU2
CFA631TMFKU2WRUSBY11DB631AL
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $80.70 $75.50 $70.20 $65.00 $59.80 $54.50 $48.40 $43.20
* These quantities may be subject to 30 to 90 days lead time.
DB631-ALTMF-KU3
CFA631TMFKU3WRUSBY03WRUSBY11UBERSCABWRDOWY17WREXTY15WREXTY19WRFANX01WRPWRY12DB631AL
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $114.70 $109.50 $104.20 $99.00 $93.80 $88.50 $82.40 $77.20
* These quantities may be subject to 30 to 90 days lead time.
DB631-BGTMF-KU2
CFA631TMFKU2WRUSBY11DB631BG
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $74.20 $69.40 $64.50 $59.70 $54.90 $50.10 $44.20 $39.50
* These quantities may be subject to 30 to 90 days lead time.
DB631-BGTMF-KU3
CFA631TMFKU3WRUSBY03WRUSBY11UBERSCABWRDOWY17WREXTY15WREXTY19WRFANX01WRPWRY12DB631BG
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+ 20+ 50+* 100+* 200+* 500+* 1000+*
Price $108.20 $103.40 $98.50 $93.70 $88.90 $84.10 $78.20 $73.50
* These quantities may be subject to 30 to 90 days lead time.
DB631-BKTMF-KU2
CFA631TMFKU2WRUSBY11DB631BK
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+* 20+* 50+* 100+* 200+* 500+* 1000+*
Price $74.20 $69.40 $64.50 $59.70 $54.90 $50.10 $44.20 $39.50
* These quantities may be subject to 30 to 90 days lead time.
DB631-BKTMF-KU3
CFA631TMFKU3WRUSBY03WRUSBY11UBERSCABWRDOWY17WREXTY15WREXTY19WRFANX01WRPWRY12DB631BK
Quantity in Cart
Price Each
N/A
Item Total
N/A
Qty 1+ 10+* 20+* 50+* 100+* 200+* 500+* 1000+*
Price $108.20 $103.40 $98.50 $93.70 $88.90 $84.10 $78.20 $73.50
* These quantities may be subject to 30 to 90 days lead time.
  • The only 20x2 USB LCD with keypad designed to fit in a PC's 3.5" floppy disk drive bay.
  • USB interface (115200 baud throughput)
  • LED backlit negative mode STN 20x2 LCD
  • Integrated LED backlit 4-button translucent silicon keypad
  • "key legends" allows user assignment of soft keys to be shown easily on the LCD
  • LCD characters are contiguous in both X and Y directions to allow the host software to display "gapless" bar graphs in horizontal or vertical directions
  • Fully decoded keypad: any key combination is valid and unique
  • Robust packet-based communications protocol with 16-bit CRC
  • Built-in re-programmable microcontroller (factory operation)
  • Non-volatile memory capability ("EEPROM"):
    • Customize the "power-on" display settings
    • 16-byte "scratch" register for storing IP, netmask, system serial number
  • Expandable firmware and configurable hardware that can be customized to add specific features for your system needs:
    • Hardware or software watchdog can provide system reset
    • Other analog or digital I/O
    • Provide "dongle" functionality for software copy protection
    • Autonomous hardware monitoring
    • Fan control and monitoring, temperature monitoring
    (Tooling fee may apply for custom firmware and hardware)
  • Available in a LCD drive bay kit
Lose the tabs, show me everything
icon Click here for datasheet

Physical Characteristics

Dimensions in this table are for reference only. For design purposes, use the module outline drawing in the datasheet.
Characters x Lines 20 x 2
Module Overall
width height depth
millimeters 101.6 25.4 93.1
inches 4 1 3.67
PCB Outline
width height depth
millimeters 101.6 25.4 93.1
inches 4 1 3.67
Other Features Affecting Size
  • Keypad
Please see the datasheet
Viewing Area
width height
millimeters 66 13.8
inches 2.6 0.54
Active Area
width height
millimeters 63.55 10.35
inches 2.5 0.41
Character Size
width height
millimeters 2.6 4.5
inches 0.1 0.18
Character Pitch
width height
millimeters 3.18 5.2
inches 0.13 0.2
Dot Size
width height
millimeters 0.48 0.6
inches 0.02 0.02
Dot Pitch
width height
millimeters 0.53 0.65
inches 0.02 0.03
Weight 80g
Keystroke Travel 2mm

Optical Characteristics

Display Technology LCD
Display Addressing passive
Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 12:00
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Environmental

Operating Temperatures
min max
Celsius 0° 50°
Farenheit 32° 122°
Storage Temperatures
min max
Celsius -10° 60°
Farenheit 14° 140°
Humidity
min max
Non-condensing 0% 90%

Electronics

Interface USB

Datasheets

Current Version

CFA631-TMF-KU_v2.0a.pdf (2MB)
Datasheet: rev 2.0a, Hardware: v2.0, Firmware: v2.0

Previous Versions (obsolete)

Other Files

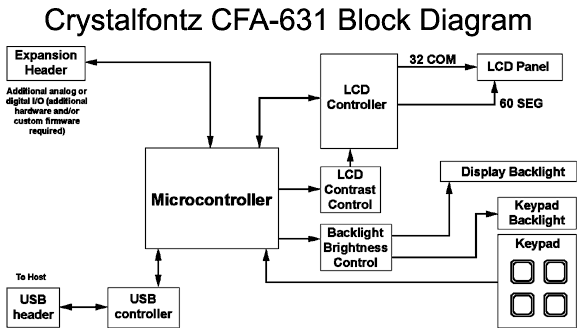

Block Diagram (13KB)
1 to 1 Template (36KB)

Part Change Notices

Subscribe to Part Change Notices for CFA631-TMF-KU2 by Email Email subscription for changes to CFA631-TMF-KU2 or by RSS feed RSS feed for changes to CFA631-TMF-KU2
No notices have been issued for this part.
