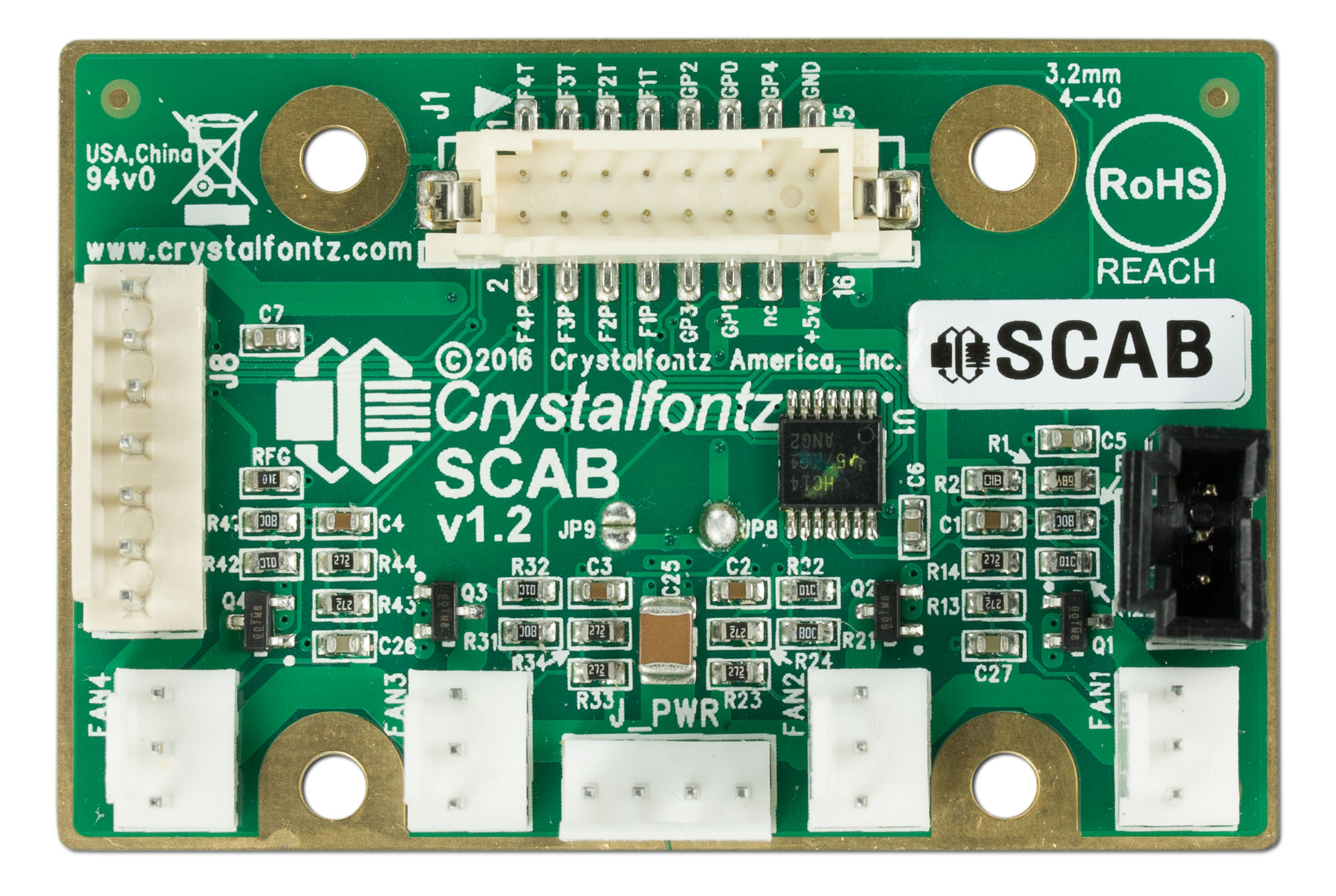

front view

SCAB

System Cooling Accessory Board

  • Allows the CFA-631 and CFA-635 to perform the same fan and temperature cooling functions that are available on the CFA-633
    • Four fan connectors with RPM monitoring and variable PWM fan power control
    • Temperature Monitoring: up to 32 channels at up to 0.5 deg C absolute accuracy
  • The CFA-633's four GPIO lines are duplicated on the SCAB, which allow
    • ATX power supply control functionality allows the buttons on the CFA-631 or CFA-635 to replace the "power" and "reset" buttons on your system
    • Hardware watchdog can reset host on host software failure
    • Advanced digital GPIO control with PWM output
  • Full control of the cooling features using 631_WinTest for the CFA-631 and 635_WinTest for the CFA-635
  • "UBERSCAB" includes 4 temperature cables (WRDOW17), 4 fan extension cables (WRFANX01), one power cable splitter (WRPWRY12), one 3.5" CFA-631/635 to SCAB connector cable (WREXTY19), and one 16" CFA-631/635 to SCAB connector cable (WREXTY15).
