CFAH1602C Standard LCD
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602CTMIJT, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH1602C-TMI-JP: Front, backlight on
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH1602CTMIJP.
CFAH1602C-TMI-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
CONTROLLER CHANGE: The SPLC780D controller in this module has been discontinued. The replacement module is CFAH1602CYYHJTV, which uses the ST7066U. Compare SPLC780 vs. ST7066U.
CFAH1602C-YYH-JPV: Front, backlight on
(click image to see detail view)
CFAH1602C-YYH-JPV: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602CYYHJP.
CFAH1602C-YYH-JT: Front, backlight on
(click image to see detail view)
CFAH1602C-YYH-JT: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
This module is replacing the CFAH1602CYYHJPV.
CFAH1602C-YYH-JTV: Front, backlight on
(click image to see detail view)
CFAH1602C-YYH-JTV: Front view
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- PCB Width: 85mm
- PCB Height: 36mm
- Viewing Width: 66mm
- Viewing Height: 16mm
- Active Area Width: 56.2mm
- Active Area Height: 11.5mm
- Character Width: 2.95mm
- Character Height: 5.55mm
- PCB Depth: 13.2mm
- Dot Pitch Width: 0.6mm
- Dot Pitch Height: 0.7mm
- Dot Size Width: 0.55mm
- Dot Size Height: 0.65mm
- Character Pitch Width: 3.55mm
- Character Pitch Height: 5.95mm
- Weight: 32g
- Characters: 16
- Lines: 2
- Overall Width: 85mm
- Overall Height: 36mm
- Overall Depth: 13.2mm
Documents:

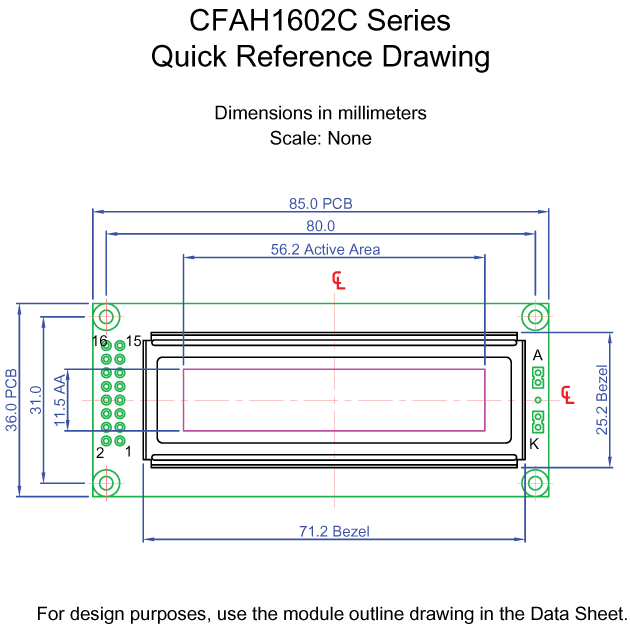

1 to 1 Template (27KB)Metric Scale Drawing (24KB)

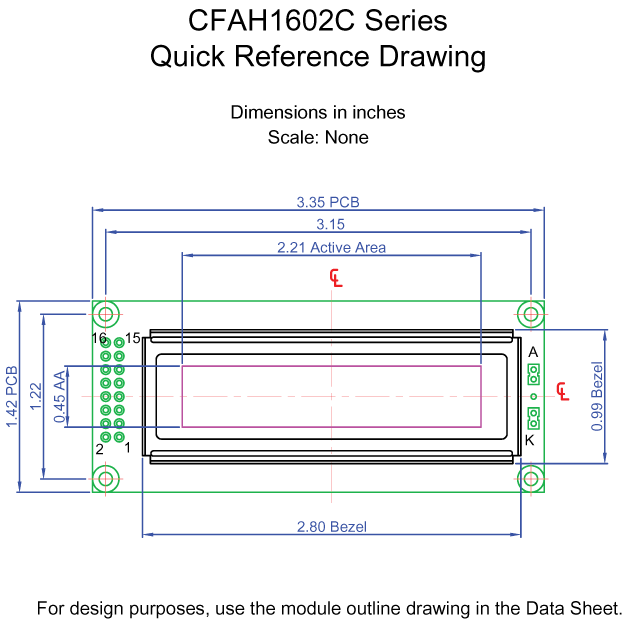

Inches Scale Drawing (23KB)
Datasheets
