CFAG128128B Graphic LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAG128128B-TFH-VZ
128x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
CFAG128128B-TFH-VZ: Front, backlight on
CFAG128128B-TFH-VZ
CFAG128128B-TFH-VZ: Front view
CFAG128128B-TFH-VZ


CFAG128128B-TMI-VZ
128x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator
CFAG128128B-TMI-VZ: Front, backlight on
CFAG128128B-TMI-VZ


CFAG128128B-TTI-VZ
128x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator
CFAG128128B-TTI-VZ: Front, backlight on
CFAG128128B-TTI-VZ


CFAG128128B-YYH-VZ
128x128 Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
CFAG128128B-YYH-VZ: Front, backlight on
CFAG128128B-YYH-VZ
Back view
CFAG128128B-YYH-VZ

Features:

  • Built-in LC7981 Controller and 4KByte SRAM
  • 128x128 graphic mode --or-- 21 x 16 text mode using built-in 5x7 Character Generator ROM.
  • Wide viewing angles
  • RoHS Compliant

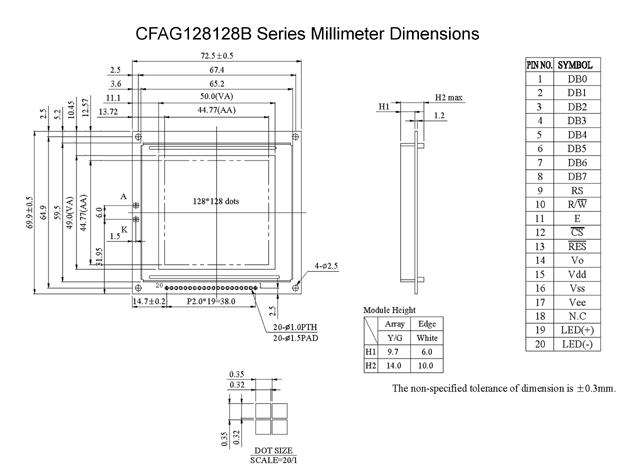

Dimensions:

  • Row x Column Dots: 128 x 128
  • PCB Outline (W x H x D): 72.5mm x 69.9mm
  • Viewing Area: 50mm x 49mm
  • Active Area: 44.77mm x 44.77mm
  • Dot Pitch: 0.35mm x 0.35mm

Documents:

1 to 1 Template (3MB)
Metric Scale Drawing (41KB)
