CFAG12864B Graphic LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAG12864B-TFH-V
Graphic LCD, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
CFAG12864B-TFH-V: Front, backlight on
CFAG12864B-TFH-V
CFAG12864B-TFH-V: Front view
CFAG12864B-TFH-V


CFAG12864B-TMI-V
Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator
CFAG12864B-TMI-V: Front, backlight on
CFAG12864B-TMI-V


CFAG12864B-WGH-N
Graphic LCD, RoHS Compliant, White EL Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00
CFAG12864B-WGH-N: Front, backlight on
CFAG12864B-WGH-N
CFAG12864B-WGH-N: Front view
CFAG12864B-WGH-N


CFAG12864B-WGH-V
Graphic LCD, RoHS Compliant, White EL Backlight, STN Positive, Gray, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
CFAG12864B-WGH-V: Front, backlight on
CFAG12864B-WGH-V
CFAG12864B-WGH-V: Front view
CFAG12864B-WGH-V
CFAG12864B-WGH-V:
Backlight on
CFAG12864B-WGH-V
CFAG12864B-WGH-V:
Backlight off
CFAG12864B-WGH-V


CFAG12864B-YYH-N
Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CFAG12864B-YYH-N: Front, backlight on
CFAG12864B-YYH-N
CFAG12864B-YYH-N: Front view
CFAG12864B-YYH-N


CFAG12864B-YYH-V
Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
CFAG12864B-YYH-V: Front, backlight on
CFAG12864B-YYH-V
CFAG12864B-YYH-V: Front view
CFAG12864B-YYH-V
CFAG12864B-YYH-V:
Backlight on
CFAG12864B-YYH-V
CFAG12864B-YYH-V:
Backlight Off
CFAG12864B-YYH-V
Back view
CFAG12864B-YYH-V

Features:

  • Available in several variations of backlight and polarizer
  • Wide temperature operation (-20°C to +70°C)
  • Wide viewing angles
  • Built-in controller: Samsung KS0107/KS0108
  • Great for handheld instruments, PDAs, etc.
  • Low power consumption
  • RoHS Compliant

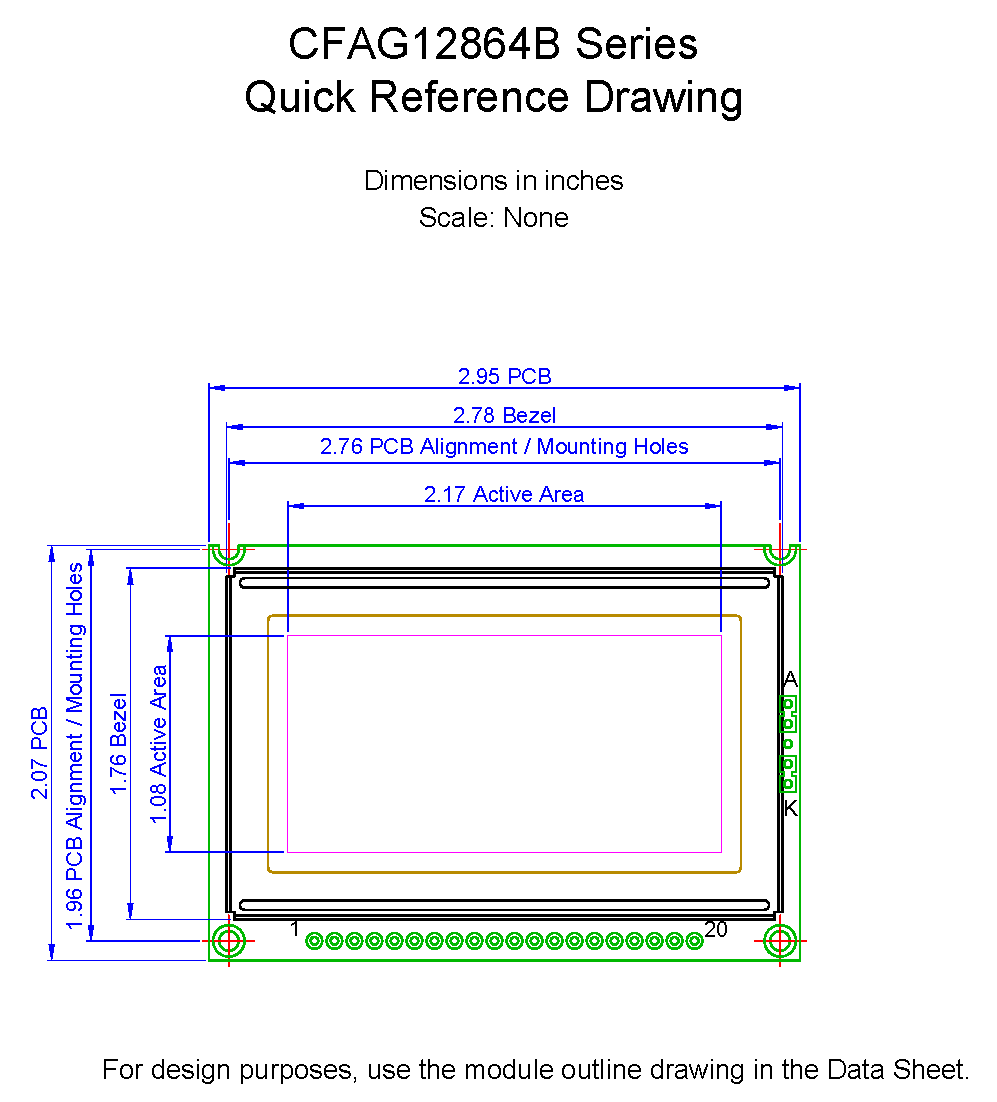

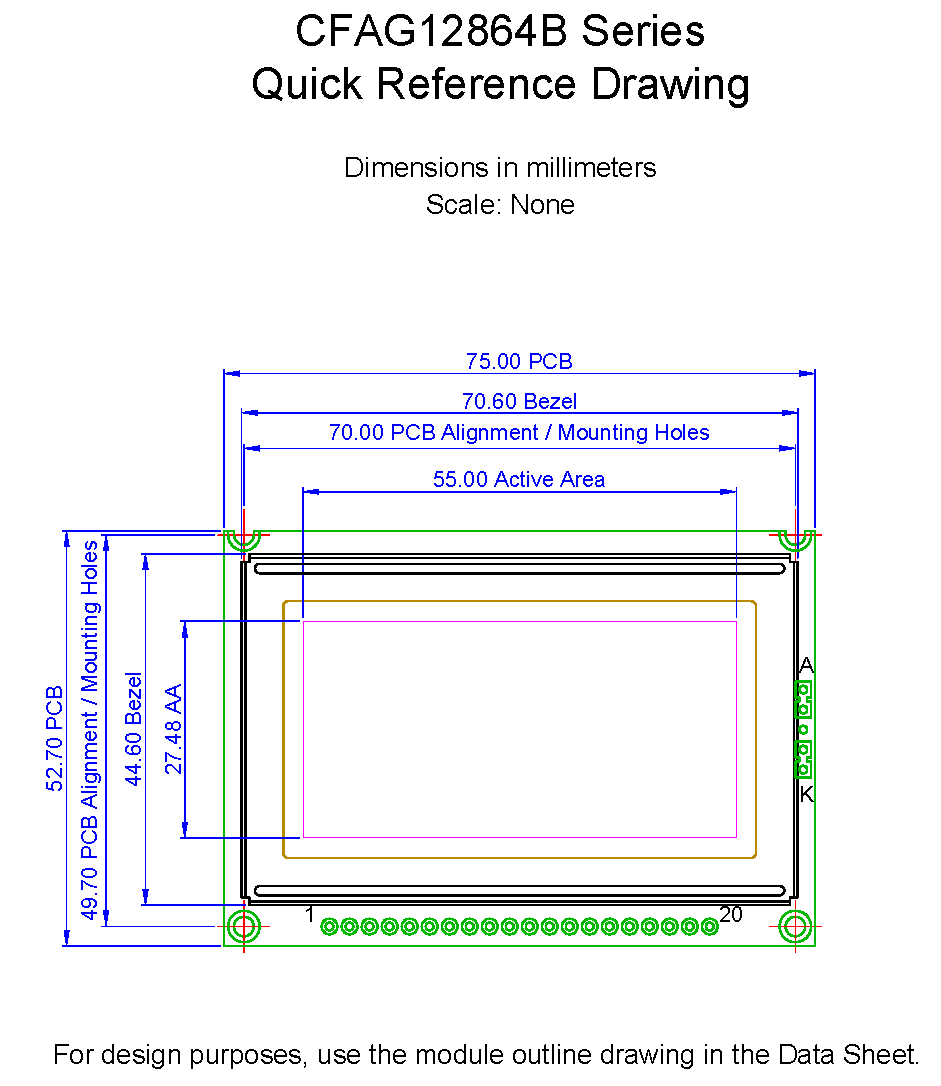

Dimensions:

  • Row x Column Dots: 128 x 64
  • PCB Outline (W x H x D): 75mm x 52.7mm
  • Viewing Area: 60mm x 32.6mm
  • Active Area: 55mm x 27.48mm
  • Dot Pitch: 0.44mm x 0.44mm

Documents:

1 to 1 Template (90KB)
Metric Scale Drawing: TFH-V (22KB)
Metric Scale Drawing: TMI-V (22KB)
Metric Scale Drawing: WGH-N (15KB)
Metric Scale Drawing: WGH-V (15KB)
Metric Scale Drawing: YYH-N (17KB)
Metric Scale Drawing: YYH-V (19KB)
Datasheets
