CFAH1602S Standard LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAH1602S-YYH-ET
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
CFAH1602S-YYH-ET: Front, backlight on
CFAH1602S-YYH-ET
CFAH1602S-YYH-ET: Front view
CFAH1602S-YYH-ET
Back view
CFAH1602S-YYH-ET

Features:

  • Available in several variations of backlight and polarizer
  • Wide temperature operation (-20°C to +70°C)
  • Very wide viewing angles
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

Dimensions:

  • PCB Outline (W x H x D): 59mm x 29.3mm x 5.5mm
  • Viewing Area: 52mm x 15mm
  • Active Area: 46.7mm x 9.84mm
  • Character Size: 2.45mm x 4.67mm
  • Dot Pitch: 0.5mm x 0.59mm
  • Dot Size: 0.45mm x 0.54mm
  • Character Pitch: 2.95mm x 5.17mm
  • Weight: 9g
  • Characters x Lines: 16 x 2

Documents:

1 to 1 Template (101KB)

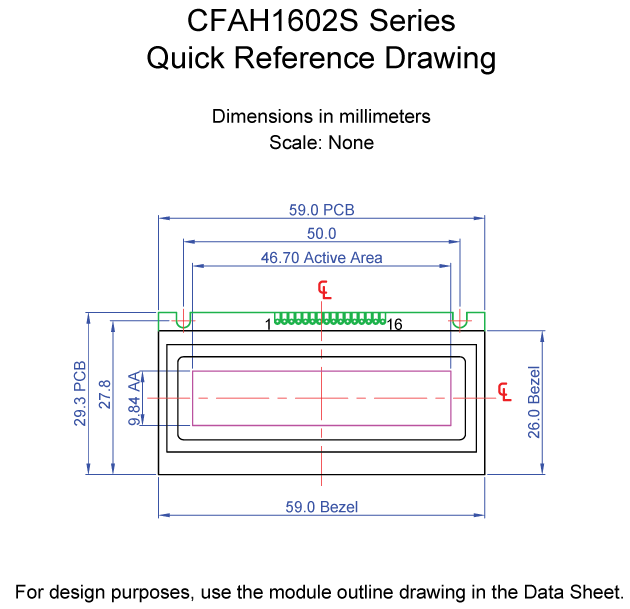

Metric Scale Drawing (20KB)

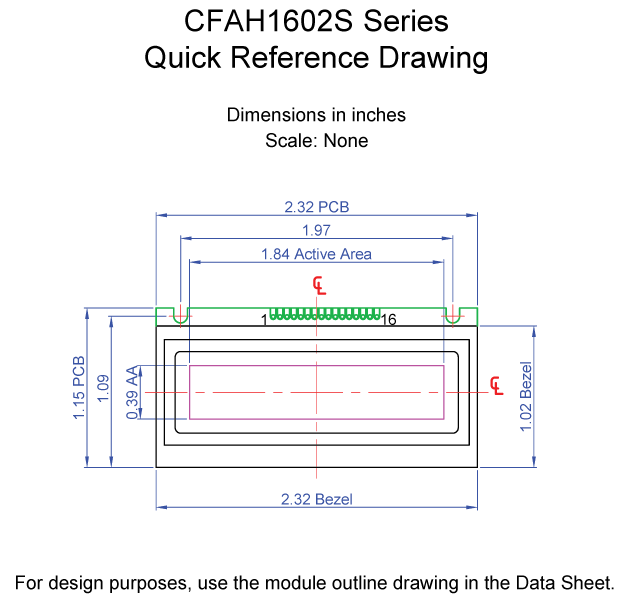

Inches Scale Drawing (20KB)
Datasheets
