CFAH2004L Standard LCD
Parallel Character LCD 20x4, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
This module is being replaceed by the CFAH2004LNYGET, which uses the ST7066U.
CFAH2004L-NYG-EP: Front view
(click image to see detail view)
Parallel Character LCD 20x4, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
This module is replacing the CFAH2004LNYGEP.
CFAH2004L-NYG-ET: Front view
(click image to see detail view)
Parallel Character LCD 20x4, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH2004LTMIJP.
CFAH2004L-TMI-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH2004LYYHJP.
CFAH2004L-YYH-JT: Front, backlight on
(click image to see detail view)
CFAH2004L-YYH-JT: Front view
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- Large characters
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- PCB Width: 146mm
- PCB Height: 62.5mm
- Viewing Width: 123.5mm
- Viewing Height: 43mm
- Active Area Width: 118.84mm
- Active Area Height: 38.47mm
- Character Width: 4.84mm
- Character Height: 9.22mm
- PCB Depth: 10.1mm
- Dot Pitch Width: 0.98mm
- Dot Pitch Height: 1.16mm
- Dot Size Width: 0.92mm
- Dot Size Height: 1.1mm
- Character Pitch Width: 6mm
- Character Pitch Height: 9.75mm
- Weight: 92g
- Characters: 20
- Lines: 4
- Overall Width: 146mm
- Overall Height: 62.5mm
- Overall Depth: 10.1mm
Documents:

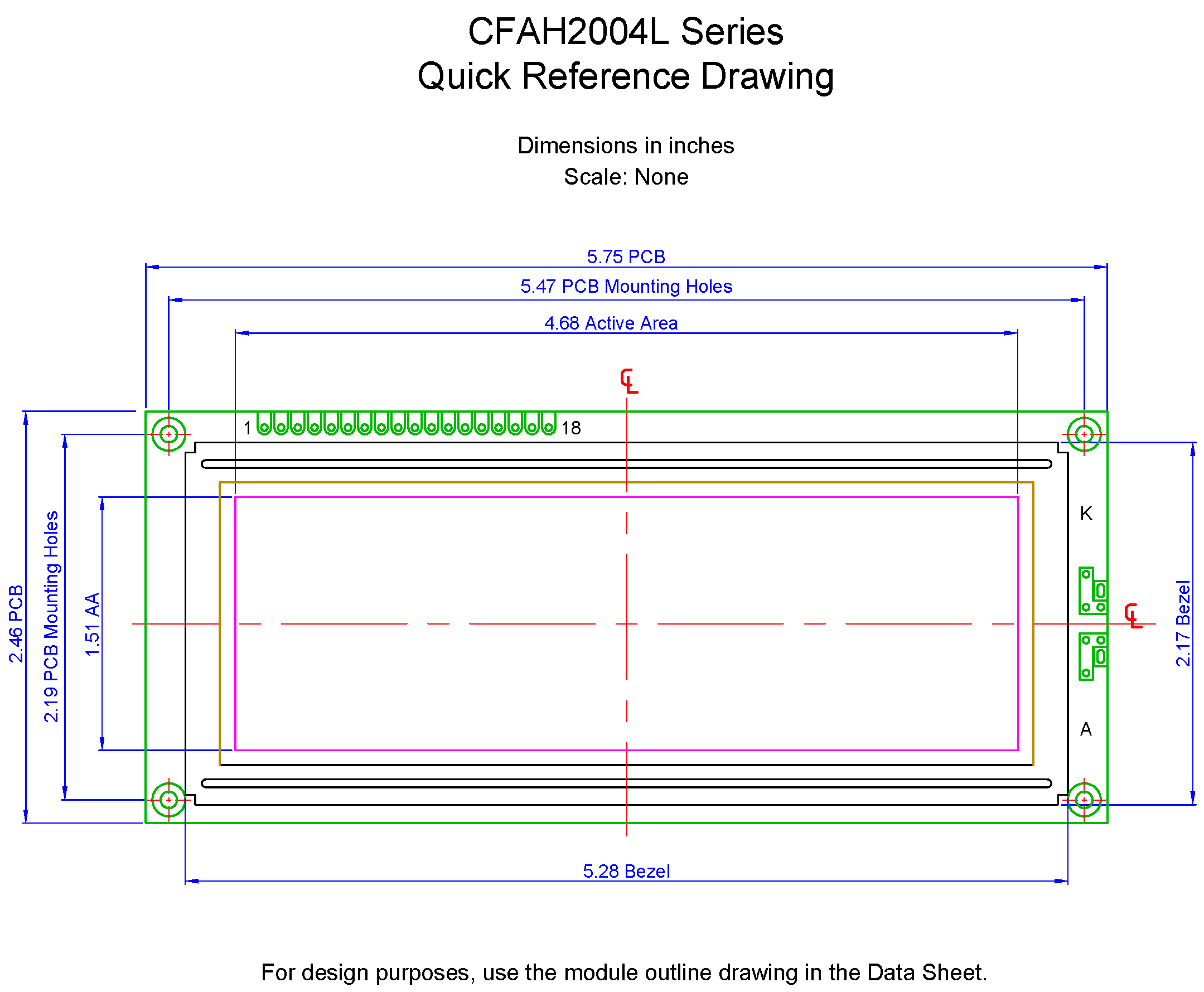

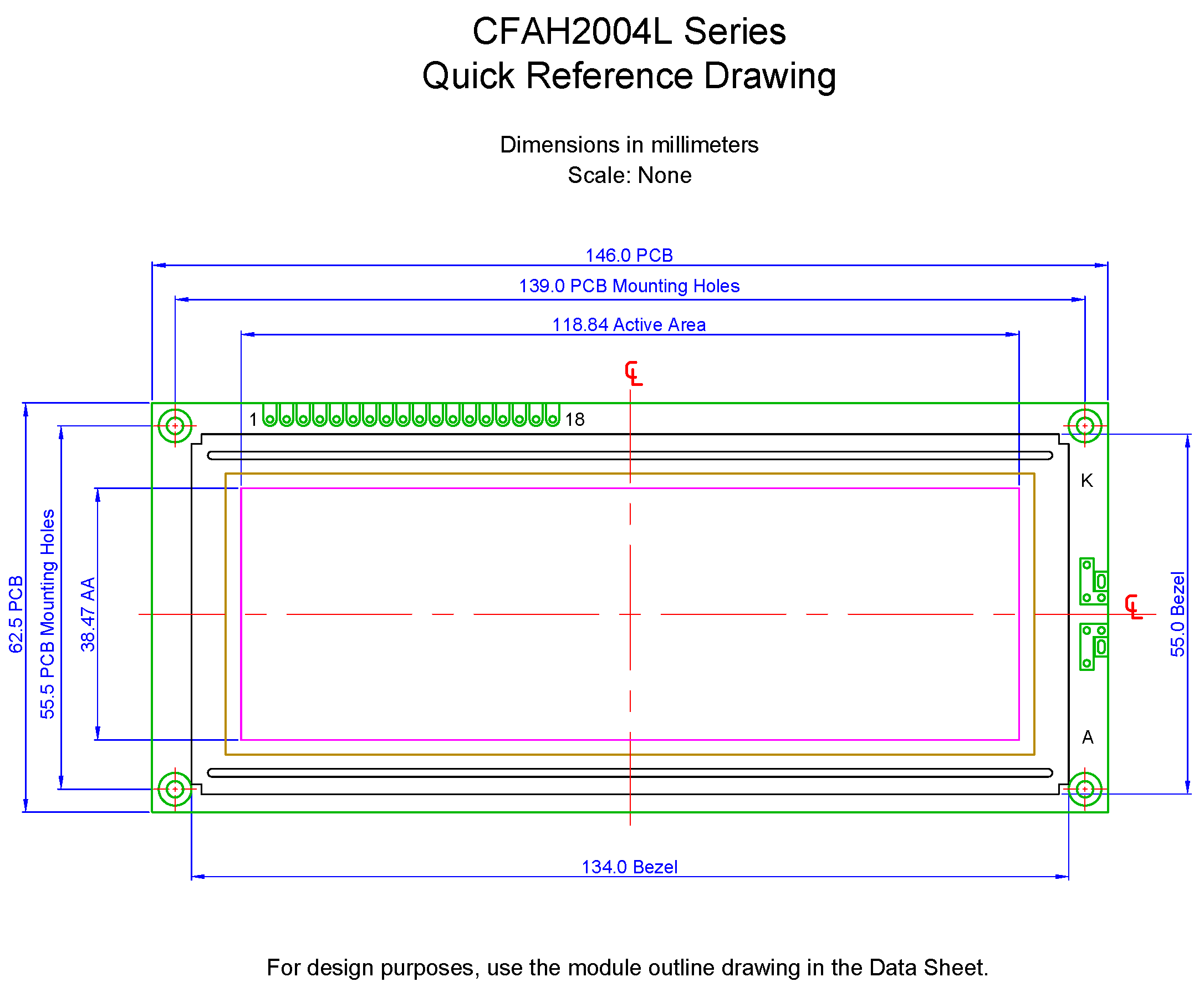

1 to 1 Template (47KB)Metric Scale Drawing (26KB)
Inches Scale Drawing (26KB)
Datasheets
