CFAG240128L Graphic LCD
menu Secure Checkout View Cart Contents Pricing & Ordering Dimensions Data Sheet
CFAG240128L-STI-TZ
240x128 Graphic LCD, RoHS Compliant, High Output White Edge LED Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation
CFAG240128L-STI-TZ: Front, backlight on
CFAG240128L-STI-TZ
(click image to see detail view)


CFAG240128L-TMI-TZ
240x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation
CFAG240128L-TMI-TZ: Front, backlight on
CFAG240128L-TMI-TZ
(click image to see detail view)


CFAG240128L-TMI-TZTS
240x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation, 4-wire Analog Touch Screen
CFAG240128L-TMI-TZTS: Front, backlight on
CFAG240128L-TMI-TZTS
(click image to see detail view)


CFAG240128L-YYH-TZ
240x128 Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation
CFAG240128L-YYH-TZ: Front, backlight on
CFAG240128L-YYH-TZ
(click image to see detail view)
CFAG240128L-YYH-TZ: Front view
CFAG240128L-YYH-TZ
(click image to see detail view)
Back view
CFAG240128L-YYH-TZ
(click image to see detail view)

Features:

  • Built-in Toshiba T6963C controller
  • 240x128 graphic mode --or-- 40 x 8 text mode using built-in 5x7 Character Generator ROM
  • Available in several variations of backlight and polarizer
  • Very wide viewing angles
  • RoHS Compliant

Dimensions:

  • Row x Column Dots: 240 x 128
  • PCB Outline (W x H x D): 150mm x 82mm
  • Viewing Area: 114mm x 64mm
  • Active Area: 107.98mm x 57.58mm

Documents:

1 to 1 Template: STI-TZ (157KB)
1 to 1 Template: TMI-TZ (156KB)
1 to 1 Template: TMI-TZTS (177KB)
1 to 1 Template: YYH-TZ (141KB)

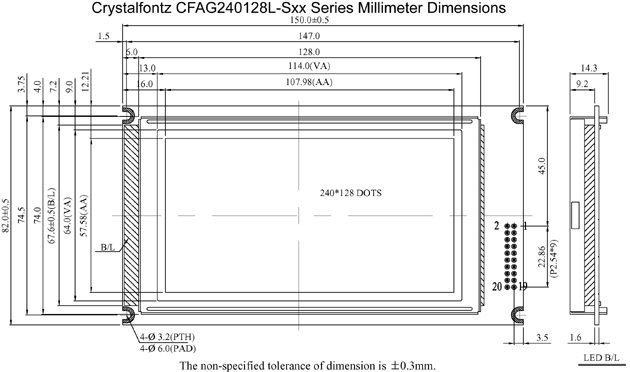

Metric Scale Drawing: STI-TZ (34KB)

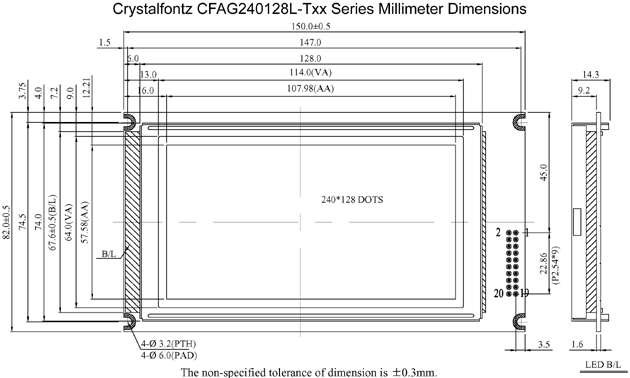

Metric Scale Drawing: TMI-TZ (34KB)

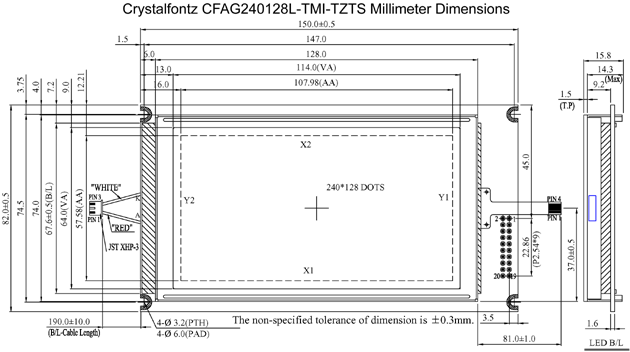

Metric Scale Drawing: TMI-TZTS (40KB)

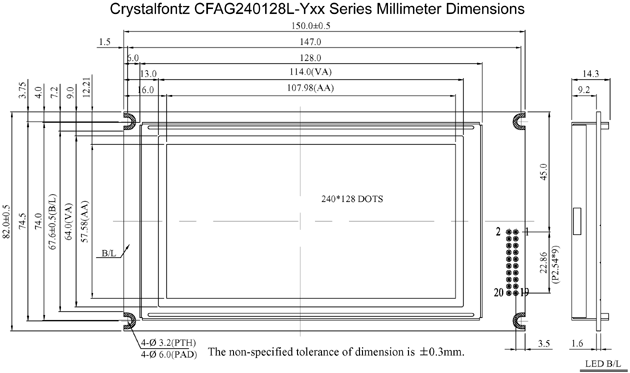

Metric Scale Drawing: YYH-TZ (30KB)
Datasheets
