CFAG320240K Graphic LCD

CFAG320240K-STI-TZ

320x240 Graphic LCD, RoHS Compliant, High Output White Edge LED Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG320240K-STI-TZ: Front, backlight on

CFAG320240K-TMI-TZ

320x240 Graphic LCD, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG320240K-TMI-TZ: Front, backlight on

CFAG320240K-YYH-TZ

320x240 Graphic LCD, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator, Temperature Compensation

CFAG320240K-YYH-TZ: Front, backlight on

(click image to see detail view)

CFAG320240K-YYH-TZ: Front view

(click image to see detail view)

Back view

(click image to see detail view)

Features:

Built-in Epson S1D13700 controller with 32KByte SRAM
320x240 graphic mode --or-- 40 x 30 text mode using built-in 5x7 Character Generator ROM
Available in several variations of backlight and polarizer
Very wide viewing angles
RoHS Compliant

Dimensions:

Row x Column Dots: 320 x 240
PCB Outline (W x H x D): 150mm x 82mm
Viewing Area: 114mm x 64mm
Active Area: 107.98mm x 57.58mm

Documents:

1 to 1 Template (145KB)

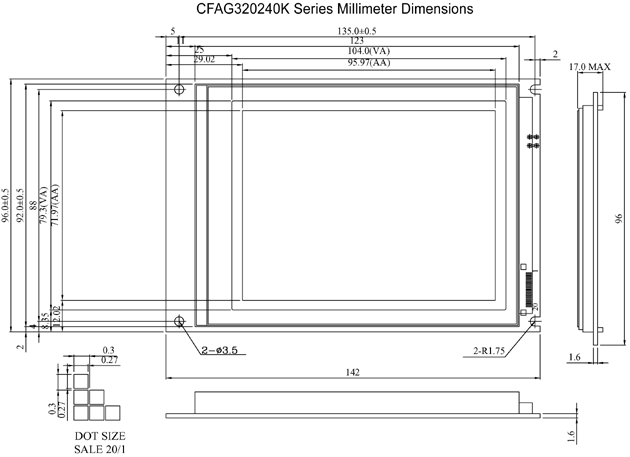

Metric Scale Drawing (27KB)
Datasheets
