CFAG12864A Graphic LCD
Graphic LCD, RoHS Compliant, 3 Color RGB LED Backlight, FSTN Positive, Light-Gray, Transflective -20°C - +70°C 6:00, Negative Voltage Generator/Temperature Compensation
CFAG12864A-CFH-TA:
RGB at full brightness
RGB at full brightness
(click image to see detail view)
CFAG12864A-CFH-TA:
Red at full brightness
Red at full brightness
(click image to see detail view)
CFAG12864A-CFH-TA:
Blue at full brightness
Blue at full brightness
(click image to see detail view)
CFAG12864A-CFH-TA:
Red and Blue backlights to make purple
Red and Blue backlights to make purple
(click image to see detail view)
CFAG12864A-CFH-TA:
Green backlight at full brightness
Green backlight at full brightness
(click image to see detail view)
CFAG12864A-CFH-TA: Front view
(click image to see detail view)
Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00, Negative Voltage Generator
CFAG12864A-TMI-VN: Front, backlight on
Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
CFAG12864A-YYH-VN: Front, backlight on
CFAG12864A-YYH-VN: Front view
Back view
Features:
- Possibly form compatible with the CFAL12864Z Series of Graphic OLED modules. Upgrade your product that uses this CFAG12864A graphic LCD by switching to the graphic OLED CFAL12864Z
- 128x64 graphic LCD module
- Available in several variations of backlight and polarizer (minimum order may be required)
- Built-in controller: Samsung KS0107/KS0108
- Demonstration board available here: CFA-10006
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- RoHS Compliant
- Possible drop-in replacement for PG12864-A/K
Dimensions:
- Row Dots: 64
- Column Dots: 128
- PCB Width: 93mm
- PCB Height: 70mm
- Viewing Width: 72mm
- Viewing Height: 40mm
- Active Area Width: 66.52mm
- Active Area Height: 33.24mm
- PCB Depth: 13.6mm
- Dot Pitch Width: 0.52mm
- Dot Pitch Height: 0.52mm
- Dot Size Width: 0.48mm
- Dot Size Height: 0.48mm
- Overall Width: 93mm
- Overall Height: 70mm
- Overall Depth: 13.6mm
Documents:
1 to 1 Template: CFH-TA (158KB)1 to 1 Template: TMI-VN (166KB)
1 to 1 Template: YYH-VN (163KB)

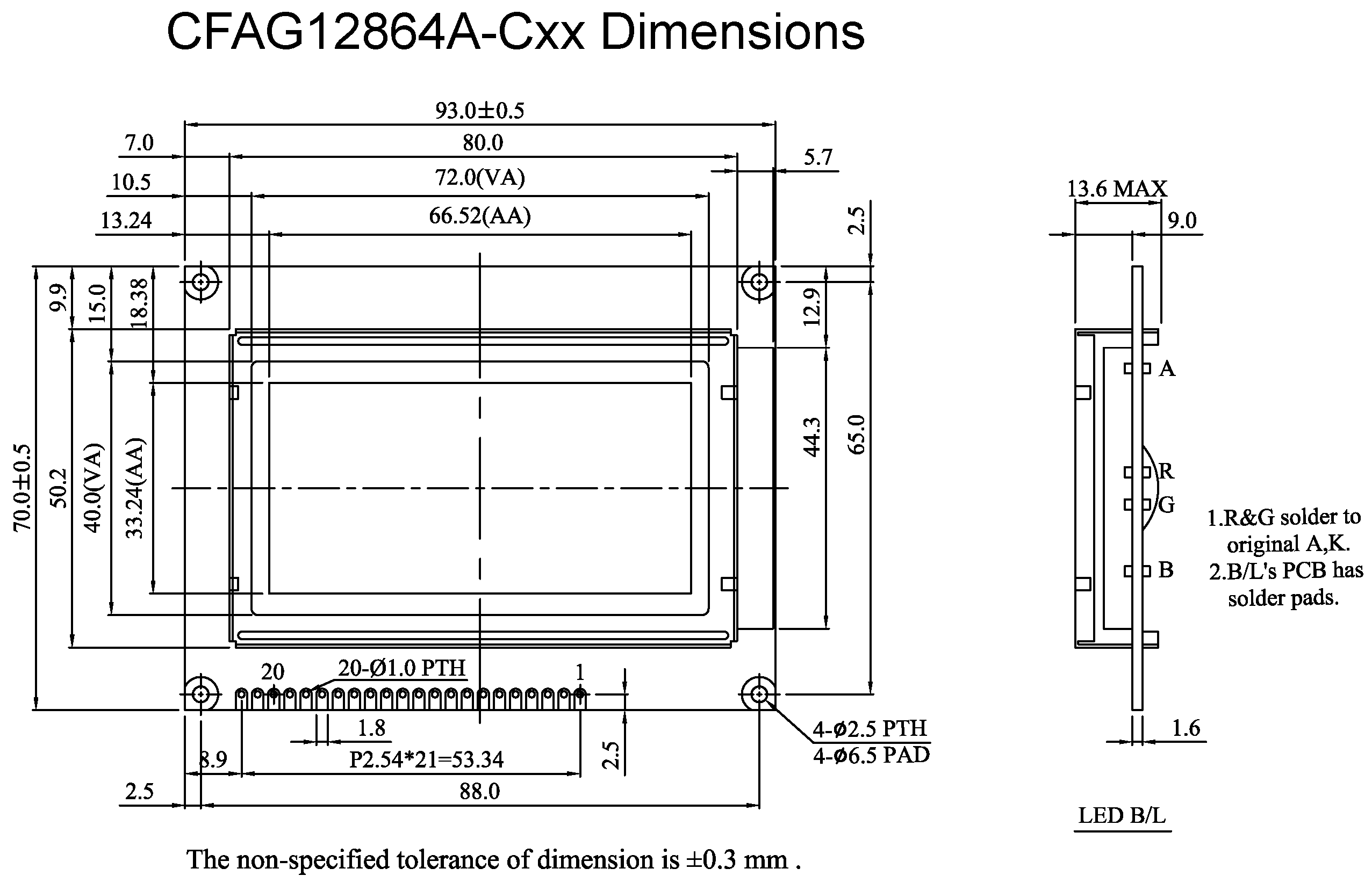

Scale Drawing, Metric: CFH-TA (62KB)

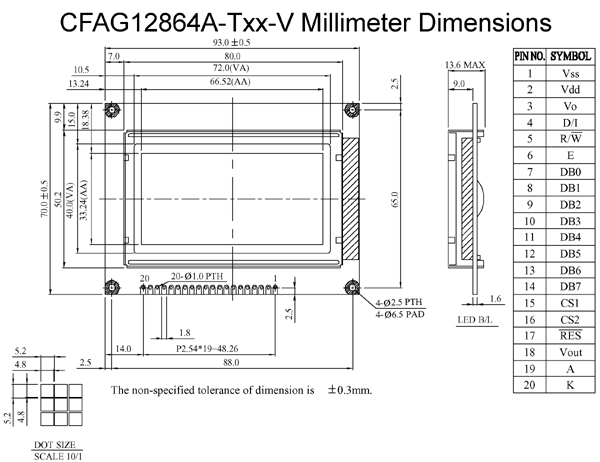

Scale Drawing, Metric: TMI-VN (46KB)

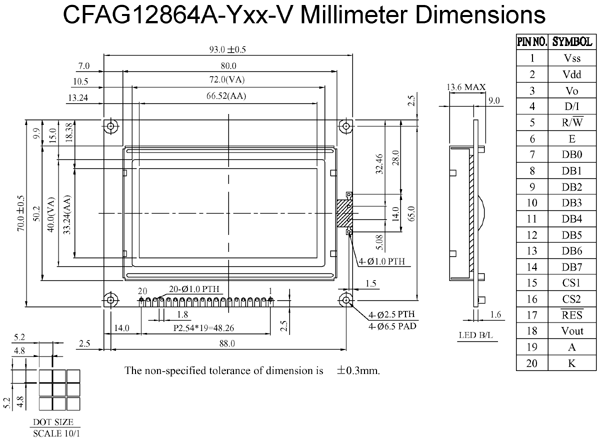

Scale Drawing, Metric: YYH-VN (45KB)
