631WINTEST (631 WinTest)

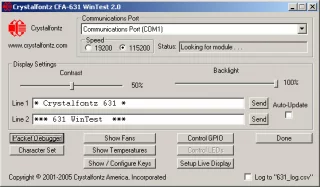

631WINTEST
Close

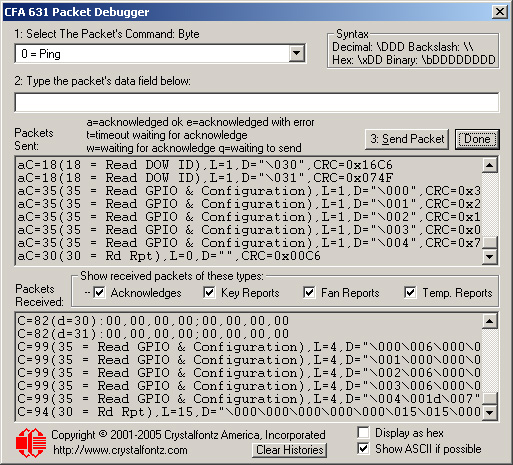

The separate modeless debugger window allows you to see all packet traffic between the host and the 631, and also allows you to experiment with any command. You can scroll back to see the packet history, selectively mask packet traffic and select decimal or hexadecimal display.
The separate modeless debugger window allows you to see all packet traffic between the host and the 631, and also allows you to experiment with any command. You can scroll back to see the packet history, selectively mask packet traffic and select decimal or hexadecimal display.
The separate "modeless" debugger window allows you to see all packet traffic between the host and the 631, and also allows you to experiment with any command. You can scroll back to see the packet history, selectively mask packet traffic and select decimal or hexadecimal display.
Close

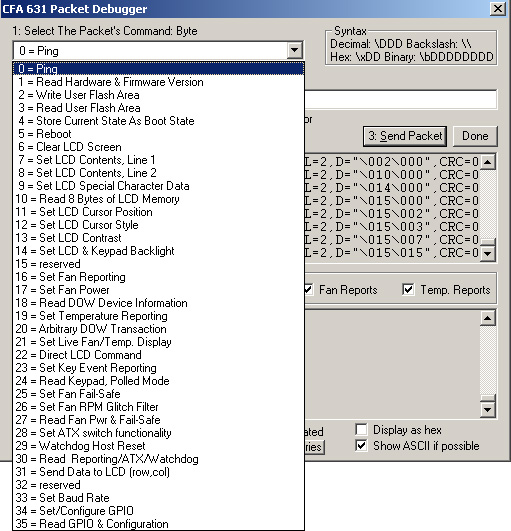

Every command available in the CFA-631 firmware can be selected from the drop-down menu.
Every command available in the CFA-631 firmware can be selected from the drop-down menu.
Every command available in the CFA-631 firmware can be selected from the drop-down menu.
Close

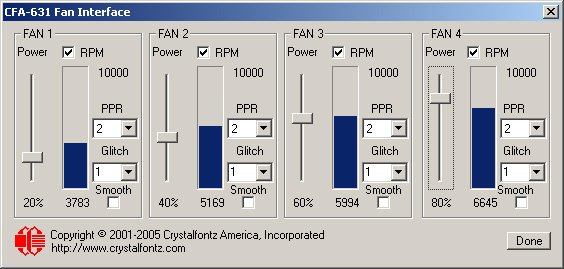

There is a fan dialog box to monitor and control the fans.
There is a fan dialog box to monitor and control the fans.
There is a fan dialog box to monitor and control the fans.
Close

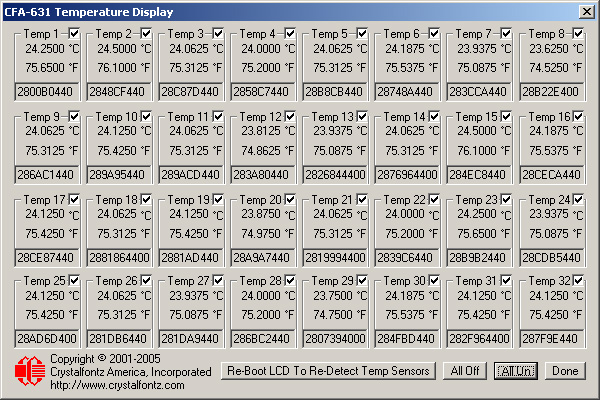

The temperature sensors may be monitored by a separate temperature dialog box.
The temperature sensors may be monitored by a separate temperature dialog box.
The temperature sensors may be monitored by a separate temperature dialog box.
Close

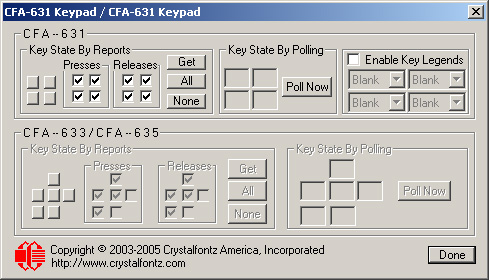

You can enable or disable key reporting, and query the keys by polling in the key dialog.
You can enable or disable key reporting, and query the keys by polling in the key dialog.
You can enable or disable key reporting, and query the keys by polling in the key dialog.
Close

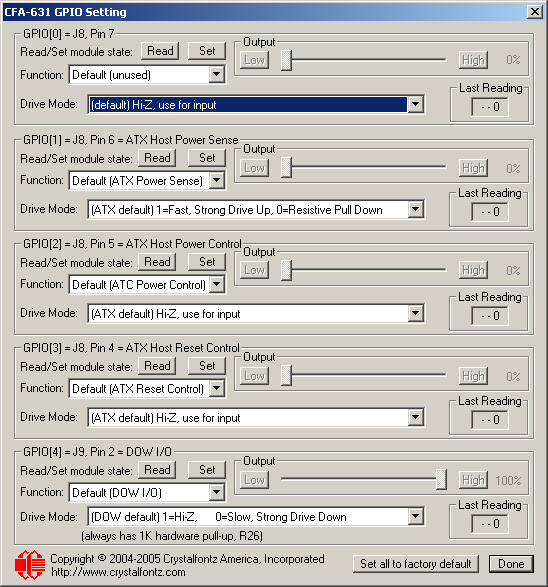

The very flexible GPIO pins may be configured through the GPIO dialog box.
The very flexible GPIO pins may be configured through the GPIO dialog box.
The very flexible GPIO pins may be configured through the GPIO dialog box.
Close

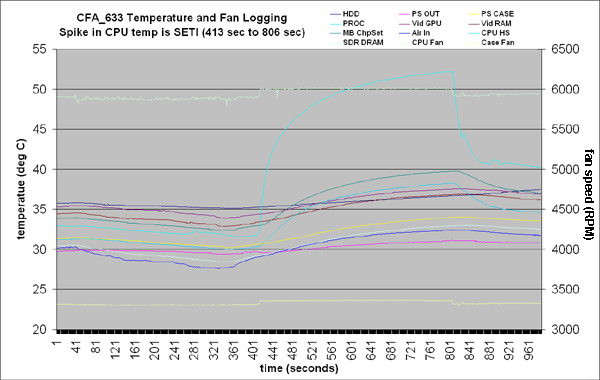

631_WinTest will optionally log the temperature and fan reports from the 631 into a CSV file. The file can be opened in a spreadsheet and graphed, as this example graph created in Excel.
631_WinTest will optionally log the temperature and fan reports from the 631 into a CSV file. The file can be opened in a spreadsheet and graphed, as this example graph created in Excel.
631_WinTest will optionally log the temperature and fan reports from the 631 into a "CSV" file. The file can be opened in a spreadsheet and graphed, as this example graph created in Excel.
Close

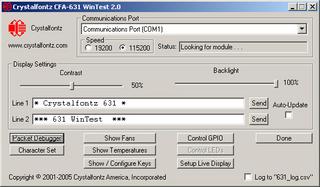

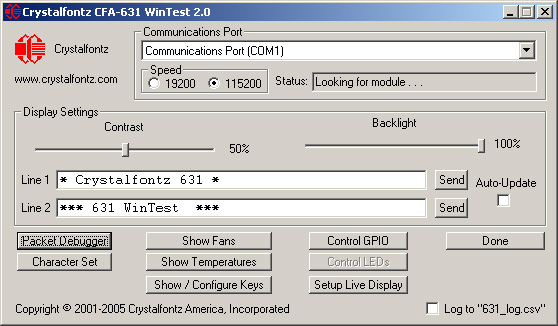

Description

Features:

  • Demonstrates features of Crystalfontz CFA631 module.
  • Allows experimenting with the LCD's command set.
  • Example data may be "copied" from the Acrobat PDF manual and "pasted" into 631_WinTest Packet Debugger.
  • Sends any "binary" code from 0 to 255.
  • "Packet Debugger" shows a record of the commands sent and received.
  • Demonstrates software techniques:
    • Send and receive packets.
    • Read fan RPM or set fan power.
    • Display keystrokes.
    • Set LCD contents.
  • Supports speed of 19200 and 115200 baud.
  • Software is supported under 32-bit Windows.
  • 631_WinTest.exe runs directly: no install and you can just delete it when you are done.
  • Open Source C Code: use as a code base for your own custom software
