Looking for a 1U server LCD solution?

While our intelligent LCDs are a great way to easily add a display to your system, we offer a wide range of other 1U size display options.

Crystalfontz intelligent LCD displays simplify integrating a text or graphical user interface into a server or personal computer. All of the LCD displays with drive bays use USB, which makes connecting them to a system straightforward. We offer a 1U drive bay bracket as a simple mounting solution, and a 1U drive bay sled to support accessories like our System Cooling Accessory Board. Need assistance choosing the display for your system? Give us a call 888.206.9720 or email support@crystalfontz.com



Create your LCD Drive Bay Kit in 4 Simple Steps

1) Select a Crystalfontz LCD Module:

16x2 Character LCD Drive Bay Kit 20x2 Character LCD Drive Bay Kit 16x2 Character LCD Drive Bay Kit 16x2 Character LCD Drive Bay Kit
20x4 Character LCD Drive Bay Kit 16x2 Character LCD Drive Bay Kit 20x4 Character LCD Drive Bay Kit Graphic LCD Drive Bay Kit


2) Click the Customize and Add to Cart Button on the Product Page:

Press the Customize and Add to Cart button

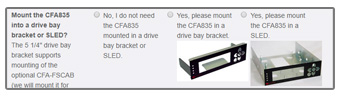

3) Choose a Drive Bay Bracket or SLED from the Options:

Drive Bay Bracket Choose a Bracket or SLED Drive Bay SLED


4) Click the Add to Cart Button after making your selections:

Add Drive Bay Kit to Cart


Crystalfontz Drive Bay Compatible LCD Modules

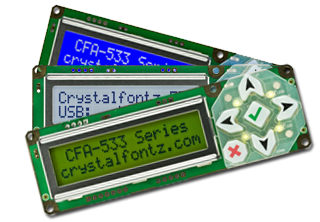

CFA533 Intelligent Display Modules

CFA533

  • Integrated 6 Button Keypad
  • 2 Lines, 16 Characters Per Line
  • 110.5mm X 35mm
  • I2C, Logic Level Serial, RS232, USB
  • 5 GPIO Lines
  • 3 Colors to choose from
  • Fits in 1U chassis
  • Native Temp. Sensor Support
$40.53 - $93.13 each* View Displays »

Just need the bracket and hardware?

* Pricing varies based on options and quantity selected

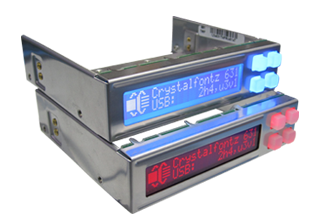

CFA631 Intelligent Display Modules

CFA631

  • Integrated 4 Button Keypad
  • 2 lines, 20 characters per line
  • 101.6mm X 25.4mm
  • USB
  • 2 colors to choose from
  • Fits in 1U chassis
$43.76 - $79.09 each* View Displays »
* Pricing varies based on options and quantity selected

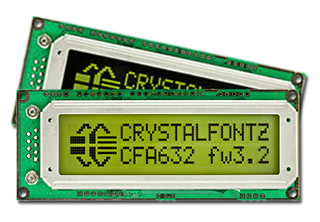

CFA632 Intelligent Display Modules

CFA632

  • 2 lines, 16 characters per line
  • 108mm x 42mm
  • RS232, Logic Level Serial, I2C, SPI
  • 2 colors to choose from
$48.53 - $127.24 each* View Displays »
* Pricing varies based on options and quantity selected

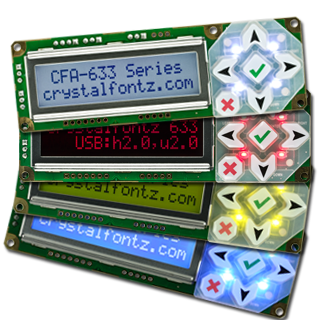

CFA633 Intelligent Display Modules

CFA633

  • Integrated 6 Button Keypad
  • 2 lines, 16 characters per line
  • 110.5mm x 35mm
  • RS232, USB
  • 5 GPIO Lines
  • 4 colors to choose from
  • Fits in 1U chassis
  • Native Temp. Sensor & Fan Support
$40.96 - $94.07 each* View Displays »

Just need the bracket and hardware?

* Pricing varies based on options and quantity selected

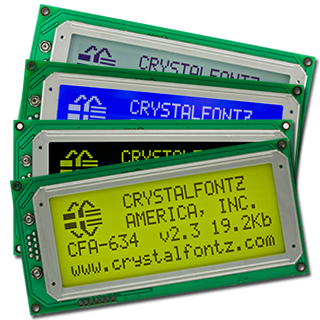

CFA634 Intelligent Display Modules

CFA634

  • 4 lines, 20 characters per line
  • 130mm x 63mm
  • RS232, Logic Level Serial, I2C, SPI
  • 4 colors to choose from
$59.02 - $147.40 each* View Displays »
* Pricing varies based on options and quantity selected

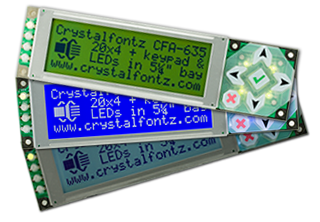

CFA635 Intelligent Display Modules

CFA635

  • Integrated 6 button keypad
  • 4 lines, 20 character per line
  • 142mm X 37mm
  • Logic Level Serial, RS232, USB
  • 5 GPIO Lines
  • 4 Bi-Color Status LEDs
  • 3 colors to choose from
  • Fits in 1U chassis
$57.66 - $145.10 each* View Displays »
* Pricing varies based on options and quantity selected

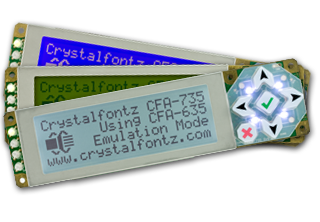

CFA735 Intelligent Display Module

CFA735

  • Integrated 6 button keypad
  • 4 lines, 20 character per line
  • 142mm x 37mm
  • Simultaneous USB, Serial
  • 5 GPIO Lines
  • 4 Bi-Color Status LEDs
  • 3 colors to choose from
  • Fits in 1U chassis
$99.10 - $188.85 each* View Displays »
* Pricing varies based on options and quantity selected

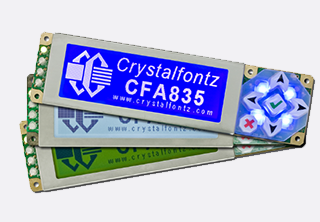

CFA835 Graphic USB LCD Modules

CFA835

  • Integrated 6 button keypad
  • 344x68 Pixel Graphic LCD
  • 142mm X 37mm
  • Logic Level Serial, RS232, USB
  • 5 GPIO Lines
  • 4 Bi-Color Status LEDs
  • 3 colors to choose from
  • Fits in 1U chassis
  • Versatile Command Set
$99.10 - $196.35 each* View Displays »
* Pricing varies based on options and quantity selected

Other 1U Size Displays Options

We also offer standard TFT displays which are the perfect size for servers, though they're not plug-and-play like our USB displays, they can be adapted to fit your server hardware.

 CFAF480128A0-039TC
480x128 Bar-Type Capacitive Touch LCD
  • Part #: CFAF480128A0039TC
  • Size: 105.5mm x 37mm x 5.13mm
  • Interfaces: DOT-CLK interface / Generic RGB
  • Resolution: 480x128 pixels
  • Color: RGB on Dark
  • Polarizer: Transmissive
  • Diagonal Dimension: 3.87"
  • Backlight: White LED
  • Controller: Himax HX8278-A-LT
  • Pin Count: 40
 CFAF480128A0-039TN
480x128 Bar-Type TFT Display
  • Part #: CFAF480128A0039TN
  • Size: 105.5mm x 37mm x 3.05mm
  • Interfaces: DOT-CLK interface / Generic RGB
  • Resolution: 480x128 pixels
  • Color: RGB on Black
  • Polarizer: Transmissive
  • Diagonal Dimension: 3.87"
  • Backlight: White LED
  • Controller: Himax HX8278-A-LT
  • Pin Count: 40
 CFAF480128A0-039TR
480x128 Bar-Type Resistive Touchscreen TFT
  • Part #: CFAF480128A0039TR
  • Size: 105.5mm x 37mm x 4.58mm
  • Interfaces: DOT-CLK interface / Generic RGB
  • Resolution: 480x128 pixels
  • Color: RGB on Black
  • Polarizer: Transmissive
  • Diagonal Dimension: 3.87"
  • Backlight: White LED
  • Controller: Himax HX8278-A-LT
  • Pin Count: 40
 CFAF480128A1-039TC
480x128 Wide-Format Capacitive TFT Display
  • Part #: CFAF480128A1039TC
  • Size: 105.5mm x 37mm x 5.13mm
  • Interfaces: DOT-CLK interface / Generic RGB
  • Resolution: 480x128 pixels
  • Color: RGB on Dark
  • Polarizer: Transmissive
  • Diagonal Dimension: 3.9"
  • Backlight: White LED
  • Controller: Himax HX8278-A-LT
  • Pin Count: 40
 CFAF480128A0-039TN-A1-1
480x128 3.9" Bar-Type EVE Display
  • Part #: CFAF480128A0039TNA11
  • Size: 105.5mm x 37mm x 10.73mm
  • Interfaces: SPI
  • Resolution: 480x128 pixels
  • Color: RGB on Black
  • Polarizer: Transmissive
  • Diagonal Dimension: 3.87"
  • Backlight: White LED
  • Pin Count: 30

Small Server Status Displays

Looking for a smaller solution such as a small server status display? These small displays are perfect for integrating into a solution for your hardware.

 CFAL12832C0-091B-W
Monochrome 128x32 I2C OLED graphic display
  • Part #: CFAL12832C0091BW
  • Size: 30mm x 11.5mm x 1.26mm
  • Interfaces: I2C, SPI
  • Resolution: 128x32 pixels
  • Diagonal Dimension: 0.91"
  • Controller: Solomon Systech SSD1306
  • Pin Count: 0.5
 CFAL12832C0-091B-Y
Small 128x32 Graphic OLED Display
  • Part #: CFAL12832C0091BY
  • Size: 30mm x 11.5mm x 1.26mm
  • Interfaces: I2C, SPI
  • Resolution: 128x32 pixels
  • Diagonal Dimension: 0.91"
  • Controller: Solomon Systech SSD1306
  • Pin Count: 0.5
 CFAL12832D-CY
128x32 Graphic OLED Module
  • Part #: CFAL12832DCY
  • Size: 30mm x 11.5mm x 1.45mm
  • Interfaces: I2C
  • Resolution: 128x32 pixels
  • Color: Yellow on Black
  • Polarizer: Emissive
  • Diagonal Dimension: 0.91"
  • Controller: Solomon Systech SSD1306
 CFAL12832B-0091P-W
White 128x32 Small Graphic OLED Display
  • Part #: CFAL12832B0091PW
  • Size: 30mm x 11.5mm x 1.26mm
  • Interfaces: SPI
  • Resolution: 128x32 pixels
  • Color: White on Black
  • Polarizer: Emissive
  • Diagonal Dimension: 0.91"
  • Controller: Solomon Systech SSD1306
 CFAL25664C0-021M-Y
256x64 Yellow Monochrome OLED
  • Part #: CFAL25664C0021MY
  • Size: 80.5mm x 19mm x 1.61mm
  • Interfaces: 8-bit Parallel, I2C, SPI
  • Resolution: 256x64 pixels
  • Diagonal Dimension: 2.08"
  • Controller: Solomon Systech SSD1362
  • Pin Count: 31
 CFAL25664C0-021M-W
256x64 Grayscale Graphic OLED
  • Part #: CFAL25664C0021MW
  • Size: 80.5mm x 19mm x 1.61mm
  • Interfaces: 8-bit Parallel, I2C, SPI
  • Resolution: 256x64 pixels
  • Diagonal Dimension: 2.08"
  • Controller: Solomon Systech SSD1362
  • Pin Count: 31

All 1U displays

Here's our complete inventory of Character LCDs that can fit in a 1U case and all of our Graphical displays that fit in a 1U enclosure.
