                In order to keep this display in production over the long term, we are revising it to the CFAF240240A4-013TN-E12. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support with any questions.
See PCN
240x240 1.3" TFT Display Dev KitPart Number: CFAF240240A3-013TN-E1-2

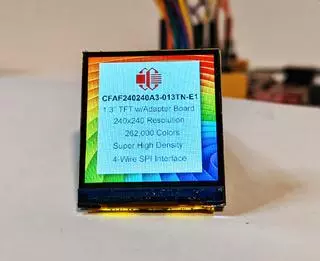

         This is a TFT Seeeduino kit for our tiny TFT with adapter board. This kit includes the small TFT mounted to an adapter board, already connected to a Seeeduino loaded with demonstration code. That means all you need to do when the kit arrives is plug a USB cord into power to see a functioning display.

The included TFT is a crisp 1.3", full color, 240x240 IPS display. The adapter board is designed specifically for this TFT display, so there is no PCB overlap. Plus the board includes a backlight driver so the entire display, including the backlight, can be driven with a single 3.3v power input. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 240

    Module Overall        width
        height
        depth

        millimeters
        26
        29.15
        13.75

        inches
        1.02
        1.15
        0.54

        Diagonal Dimension
            1.3"

        Weight
            30g

 picture_as_pdf Datasheets
picture_as_pdfCFAF240240A3-013TN-E1 Datasheet

 download Files and Downloads
folder_zip Hardware Design - Adapter Board Build Files
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $53.00

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						USB-A to Micro-B Cable
Need a USB Cable? $5.75 ea.

						10 Foot USB Cable
Need a long USB Cable? (10ft) $6.90 ea.

						1.3" 240x240 Full-Color LCD Display with Adapter Board
Want an additional display with adapter board? $31.10 ea.

Module Overall	width	height	depth
millimeters	26	29.15	13.75
inches	1.02	1.15	0.54

Quantity	Unit Price
1 *	$53.00

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11251: End-Of-Life Notification

Products Affected:	CFAF240240A3-013TN, CFAF240240A3-013TN-E1, CFAF240240A3-013TN-E1-2
Date Issued:	October 25, 2023
Summary:	End-Of-Life Notification
Description:	The polarizer is changing to remove a substance of very high concern. The replacement parts will be a drop-in replacement and will not contain this substance. The part numbers are changing as shown below. CFAF240240A3-013TN -> CFAF240240A4-013TN CFAF240240A3-013TN-E1 -> CFAF240240A4-013TN-E1 CFAF240240A3-013TN-E1-2 -> CFAF240240A4-013TN-E1-2
Reason:	UV-328 is a Substance of Very High Concern (SVHC) under REACH. We are taking steps to remove this substance from our products.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	May 15, 2023
Summary:	New Seeeduino Version 4.3 Now Shipping
Description:	We are now releasing products as stated in PCN11190. https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	April 13, 2023
Summary:	Part Change - Seeeduino 4.2 ->4.3
Last revision:	4.2
Description:	Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason:	Supplier has changed their offering
Impact:	Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability:	Immediate

Product Update #11119: CFAF240240A3-013TN-E1-2 is now Available

New Product:	CFAF240240A3-013TN-E1-2
Date Issued:	May 10, 2022
Summary:	CFAF240240A3-013TN-E1-2 is now Available
Description:	CFAF240240A3-013TN-E1-2 has been released on the website (https://www.crystalfontz.com/product/cfaf240240a3013tne12-240x240-lcd-dev-kit) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support for any technical questions.
